Online Access Free JN0-362 Practice Test

What happens when a packet matches a static route with the next hop parameter set to reject?

• A.An ICMP message is sent to the source and the packet is dropped
• B.An ICMP message is sent to the source and the packet is forwarded
• C.The system silently drops the packet
• D.The packet is forwarded and the packet is marked as rejected in the header

Which two statements are true when considering logical systems? (Choose two.)

• A.Logical systems share the master routing table and can create routing instances
• B.Logical systems do not support nonstop active routing
• C.Logical systems provide management separation by providing user access per logical system
• D.Logical tunnels cannot be used to connect logical systems

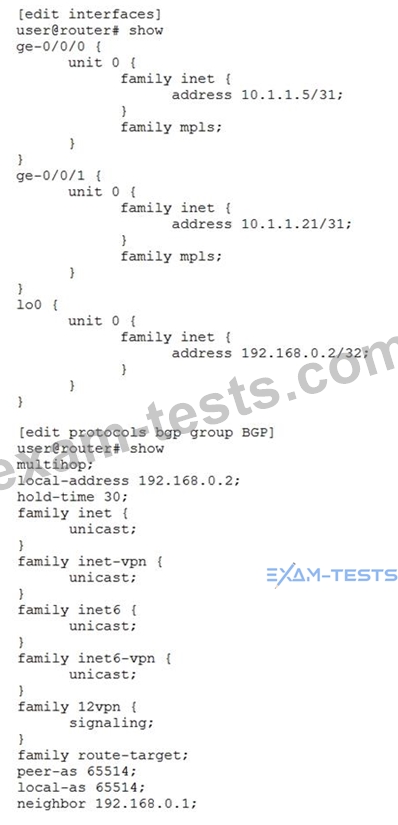

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

• A.The configuration is for an internal BGP session
• B.The local-address statement is required for the BGP session to establish correctly
• C.The multi-hop statement is required for the BGP session to establish correctly
• D.The configuration is for an external BGP session

Click the Exhibit button.

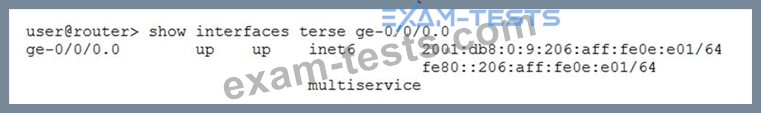

Your co-worker configures the ge-0/0/0 interface with an IPv6 address of 2001:db8:0:9::/64. After committing the configuration, your co-worker executes the command shown in the exhibit.
What is the fe80::206:aff:fe0e:e01/64 address in this scenario?

• A.the loopback address
• B.the link-local address
• C.the statically assigned address
• D.the multicast address

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

• A.The BGP peering between R1 and R4 should use physical interface addresses
• B.The BGP peering between R1 and R4 should use loopback interface addresses
• C.The BGP peerings between R1, R2, and R3 should use loopback interface addresses
• D.The BGP peerings between R1, R2, and R3 should use physical interface addresses
