Question 21

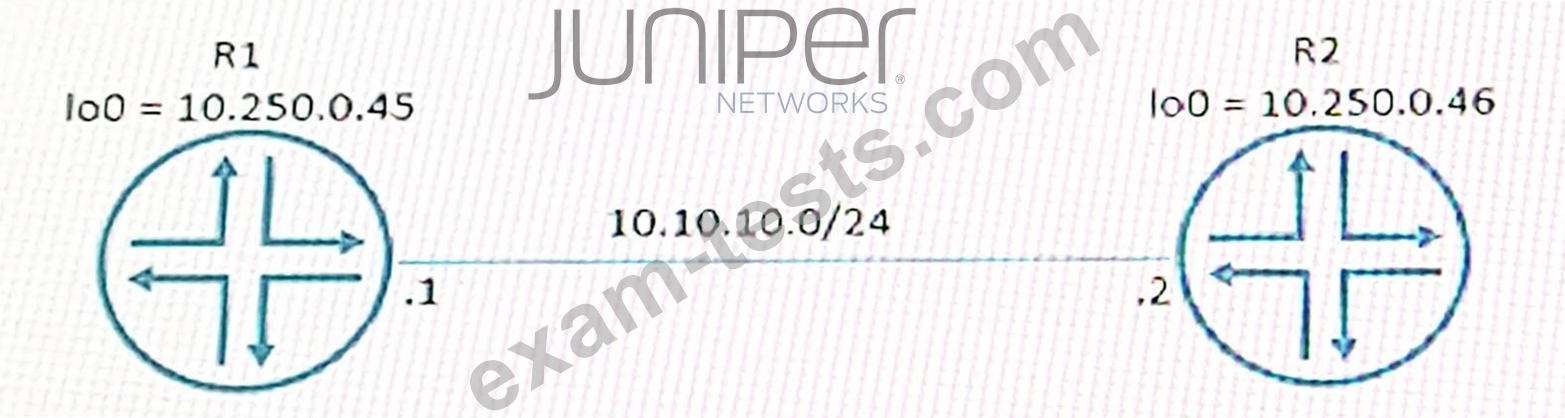

Click the exhibit.

Referring to the exhibit, which configuration must be set on R2 to from a Level 1 IS-IS adjacency with R1?

A.Set interfaces lo0 unit 0 family iso address 49.0001.3415.0010.0250.0000.0046.00

B.Set interfaces lo0 unit 0 family iso address 49.0002.3415.0010.0250.0000.0046.00

C.Set interfaces lo0 unit 0 family iso address 49.0002.3414.0010.0250.0000.0046.00

D.Set interfaces lo0 unit 0 family iso address 49.0001.3414.0010.0250.0000.0046.00

Question 22

You have a stub OSPF area running in your network. Your supervisor has asked you to build a virtual link across this area to connect new equipment acquired in a recent ISP acquisition.Which statement is correct about this scenario?

A.Type 5 LSAs would be blocked in a stub area.

B.Type 5 LSAs would be seen only in the newly attached area.

C.Type 5 LSAs would carry external information across your transit area to the backbone.

D.Type 5 LSAs would be converted to type 7 LSAs.

Question 23

Which two statements are true when considering logical systems? (Choose two.)

A.Logical systems do not support nonstop active routing

B.Logical systems share the master routing table and can create routing instances

C.Logical tunnels cannot be used to connect logical systems

D.Logical systems provide management separation by providing user access per logical system

Question 24

An Ethernet bridge is configured such that all interfaces are in a single broadcast domain.Which two tasks does the bridge perform in response to receiving a frame with an unknown unicast destination MAC address? (Choose two.)

A.It drops the frame.

B.It floods the frame out of all interfaces except the one on which is was received.

C.It learns the destination MAC address.

D.It learns the source MAC address.

Question 25

Click the Exhibit.

Your router has an external peering session to 10.10.25.5 and several internal peers. However, routes learned from EBGP peers are showing up in a hidden state on IBGP peers.
Where would you apply the policy shown in the exhibit to solve this issue?

A.Apply the next-hop-self as an import policy to the internal BGP peers.

B.Apply the next-hop-self as an import policy to the external BGP peers.

C.Apply the next-hop-self as an export policy to the external BGP peers.

D.Apply the next-hop-self as an export policy to the internal BGP peers.
