Question 61

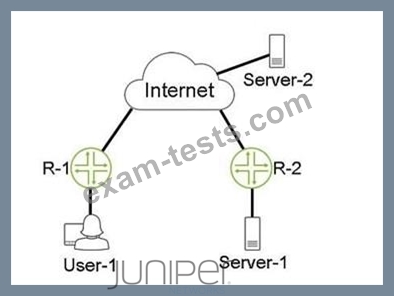

Click the Exhibit button.

Referring to the exhibit, the GRE tunnel between R-1 and R-2 allows connectivity between User-1 and Server-1. When User-1 communicates with Server-2 with packets that are 1472 bytes in size, no packet fragmentation occurs. User-1 can communicate with Server-1 with packets that are up to 1448 bytes in size with no packet fragmentation. However, if the packet size is larger than 1448 bytes, packet fragmentation occurs.
Why is the packet fragmentation occurring between User-1 and Server-1 in this scenario?

A.The IP header adds 24 bytes to the packet

B.The GRE header adds 20 bytes to the packet

C.The IP header adds 20 bytes to the packet

D.The GRE header adds 24 bytes to the packet

Question 62

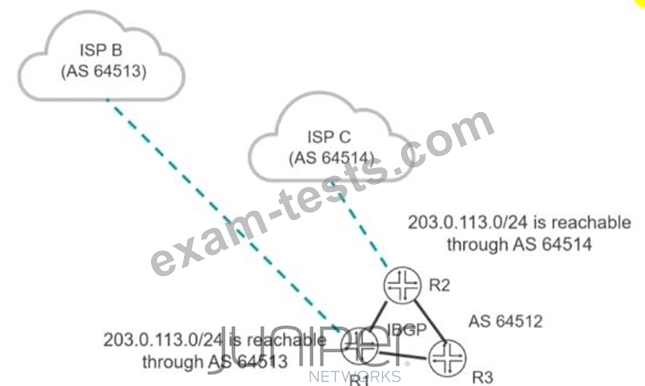

Exhibit

You want the R1 and R3 routers to forward traffic destined to the 203.0.113.0/24 network through R2. Which BGP attribute would you modify to satisfy this requirement?

A.origin

B.MED

C.community

D.local preference

Question 63

You are adding an IPv6 configuration to an Interface on a Junos device.
In this scenario, which statement is correct?

A.The link local address must be manually configured within the fe80::/10 prefix range.

B.The link local address is automatically created using the MAC address within the fd00::/8 prefix range.

C.The link local address is automatically created using the MAC address within the fe80::'l0 prefix range.

D.The link local address must be manually configured within the fdO0::/8 prefix range.

Question 64

By default, the Junos OS advertises which address(es) in LDP forwarding equivalency class (FEC) messages?

A.primary transit interface address

B.loopback address

C.all transit interfaces

D.all router addresses

Question 65

You have configured multiple IP-IP tunnels across your network to provide connectivity to remote sites.Which technique is used to help the IP endpoints in your network determine the optimal packet size to send across your tunnels?

A.fragmentation discovery

B.path MTU discovery

C.end-to-end MTU discovery

D.packet throughput discovery
