Question 56

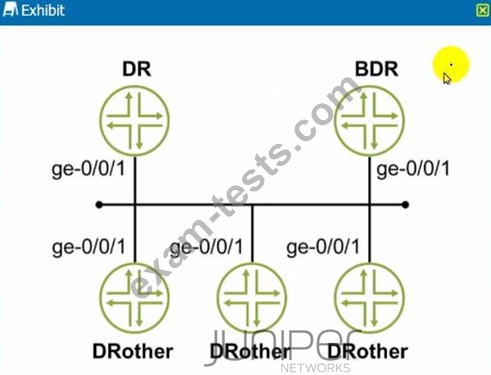

Exhibit

You are asked to configure the OSPF environment to prevent the DRother routers from participating in DR/BDR election.
Referring to the exhibit, which command will accomplish this task?

A.set protocols ospf area 0.0.0.0 interface ge-0/0/l priority 255

B.set protocols ospf area 0.0.0.0 interface ge-0/0/1 priority

C.set protocols ospf area 0.0.0.0 interface ge-0/0/1 interface-type nbma

D.set protocols ospf area 0.0.0.0 interface ge-0/0/1 interface-type p2p

Question 57

Interface ge-0/0/0.0 connecls yout network to your ISP. You want to advertise this interface address as an Internal route In OSPF without creating a neighbor with your ISP.
In this scenario, how is this task accomplished?

A.Remove interface ge-0/0/0.0 from OSPF.

B.Create a generated route for Interface ge-0/0/0.0.

C.Add ge-0/0/0.0 as a passive interface In OSPF.

D.Configure a static route for Interface ge-0/0/0.0.

Question 58

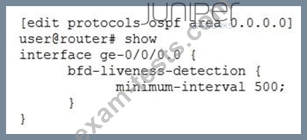

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

A.The OSPF neighbor will be declared down if 500 BFD hello packets are missed

B.The OSPF neighbor will be declared down if three BFD hello packets are missed

C.The OSPF neighbor will be declared down if BFD hello packets are not received for 1.5 seconds

D.The OSPF neighbor will be declared down if BFD hello packets are not received for 5 seconds

Question 59

How does a Junos device learn about MAC addresses when II is first connected to an Ethernet LAN?

A.The device learns the destination MAC addresses from traffic in the network and stores this MAC address in addition to the interface from which the traffic was received.

B.The device sends out a network multicast message asking for all devices and MAC addresses on the network and stores this Information in addition to the interface from which the response was received.

C.The device sends out a network broadcast message asking tor all devices and MAC addresses on the network and stores this information In addition lo the interface from which the response was received.

D.The device learns the source MAC addresses from traffic in the network and stores this MAC address in addition to the interface from which the traffic was received.

Question 60

An OSPF router does not have a router ID configured.
In this scenario, which statement is correct about the router ID?

A.The Junos OS will use the IP address assigned to the interface with the lowest MAC address.

B.A router ID will not be assigned until it is manually configured.

C.The Junos OS will use the IP address assigned to the loopback interface for the router ID.

D.The Junos OS will use the IP address assigned to the Interface with the highest priority.
