The route for 172.20.110.0/24 shows the next hop as the tunnel interface gr-0/0/0.0. This indicates that traffic destined for that prefix will be forwarded through the tunnel. The other route uses a physical interface (ge-0/0/3.0), meaning it is not sent through the tunnel.

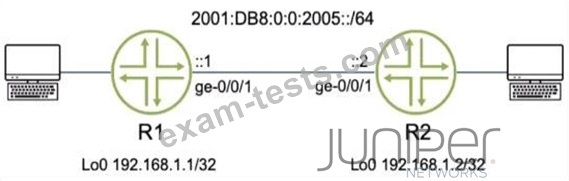

To configure OSPFv3 (the version of OSPF that supports IPv6), you would use the set protocols ospf3 command with the appropriate area and interface. OSPFv3 requires a 32-bit router ID just like OSPFv2, which is typically an IPv4 address. OSPF does not use a 128-bit router ID, so answer D is incorrect.

The AS path attribute lists the autonomous systems that a route advertisement has traversed.
Routers use this attribute to detect routing loops by checking if their own AS number appears in the path.
The AS path length is also used in the BGP best-path selection process, where routes with shorter AS paths are preferred because they represent fewer AS hops to reach the destination prefix.

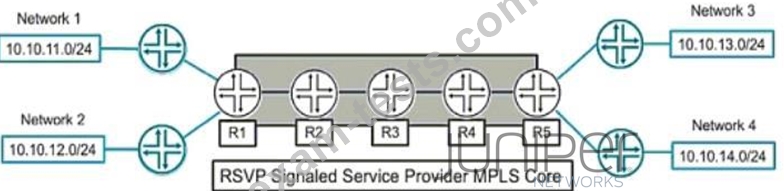

In a service provider MPLS network, P routers are interior routers that are used to transit MPLS- labeled packets between edge routers but do not attach or remove MPLS labels themselves.
These routers are also referred to as transit routers. They are neither ingress nor egress routers (which are typically labeled as PE routers).

Multiple Spanning Tree Protocol (MSTP), as defined in IEEE 802.1s and implemented in Juniper Networks Junos OS, allows for the grouping of VLANs into specific spanning tree instances. This provides significant scalability and load-balancing advantages over traditional STP or RSTP. To achieve this, switches must be grouped into logical "Regions." According to Juniper documentation, for two or more switches to be considered part of the sameMSTP Region, they must possess an identicalMSTP Configuration Identifier. This identifier consists of three specific attributes that must match exactly across all participating switches:
* MSTI Name (Region Name):A descriptive string (up to 32 characters) that identifies the region.
* MSTI Revision Level:A numerical value (0-65535) used to track configuration changes.
* VLAN-to-Instance Mapping:The specific table that defines which VLAN IDs are associated with which Multiple Spanning Tree Instances (MSTIs).
If even one of these parameters-such as theRegion name(Option A)-differs, the switches will treat each other as being in separate regions. When switches are in different regions, they interact using theCommon Spanning Tree (CST), effectively seeing the other region as a single "virtual bridge," which limits the granularity of traffic engineering.
TheExtended system ID(Option B) is a component of the Bridge ID used to carry VLAN information in PVST+ but is not a region-matching requirement.Root bridge priority(Option C) andRoot bridge ID(Option D) are variables used during the STP election process to determine the topology's root, but they do not define the boundaries of an MSTP region itself.
