Question 6

Exhibit

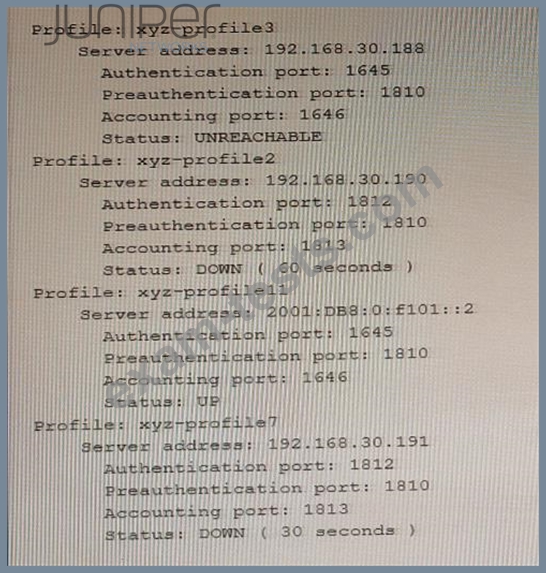

The show network-access aaa radius-servers command has been issued to solve authentication issues.
Referring to the exhibit, to which two authentication servers will the SRX Series device continue to send requests? (ChooseTWO)
  • Question 7

    Exhibit

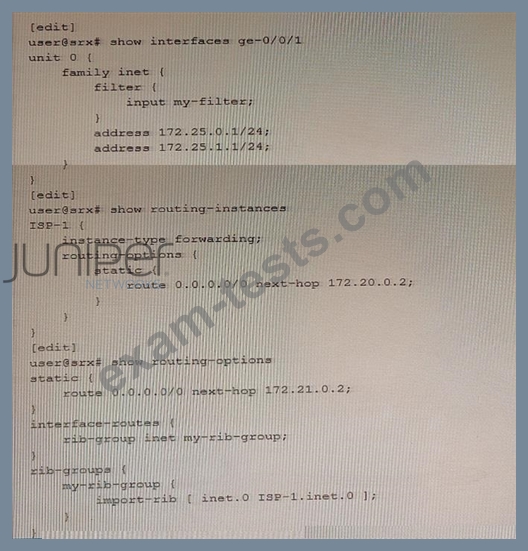

    You are implementing filter-based forwarding to send traffic from the 172.25.0.0/24 network through ISP-1 while sending all other traffic through your connection to ISP-2. Your ge-0/0/1 interface connects to two networks, including the 172.25.0.0/24 network. You have implemented the configuration shown in the exhibit.
    The traffic from the 172.25.0.0/24 network is being forwarded as expected to 172.20.0.2, however traffic from the other network (172.25.1.0/24) is not being forwarded to the upstream 172.21.0.2 neighbor.
    In this scenario, which action will solve this problem?
  • Question 8

    To analyze and detect malware, Juniper ATP Cloud performs which two functions? (Choose two.)
  • Question 9

    Your IPsec VPN configuration uses two CoS forwarding classes to separate voice and data traffic. How many IKE security associations are required between the IPsec peers in this scenario?
  • Question 10

    You are asked to detect domain generation algorithms
    Which two steps will accomplish this goal on an SRX Series firewall? (Choose two.)
