Free Access Juniper.JN0-649.v2023-01-11.q64 Practice Test (Page 6)

Question 21

You notice a mass withdrawal of routes for some of the network hosts. You determine that the link on the ESI interface is down.
Which route type is used in this scenario?

A.Type 2

B.Type 3

C.Type 1

D.Type 5

Question 22

You are asked to merge a RIP network with your OSPF network. As a first step, you establish connectivity between the RIP network and the OSPF network. The RIP network connects to an NSSA area. Which two statements are true in this scenario? (Choose two.)

A.To share RIP routes with the OSPF network, an export policy will be required on the ABR.

B.To share RIP routes with the OSPF network, an export policy will be required on the ASBR.

C.By default, external OSPF routes have a higher route preference than RIP routes.

D.Be default, RIP routes have a higher route preference than external OSPF routes.

Question 23

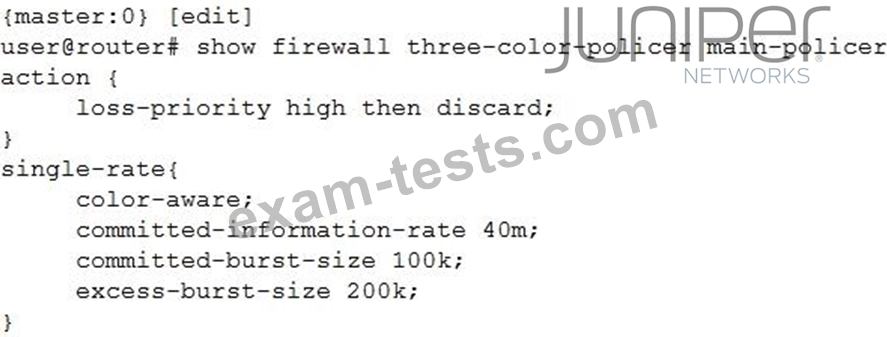

Click the Exhibit button.

You have configured and applied the policer shown in the exhibit to your Junos device.
Which statement is true in this scenario?

A.Traffic exceeding the committed-burst size will be marked with a loss priority of high.

B.Traffic exceeding the excess-burst size will be discarded.

C.Traffic exceeding the committed-information-rate will be rate limited.

D.Traffic exceeding the committed-burst size will be discarded.

Question 24

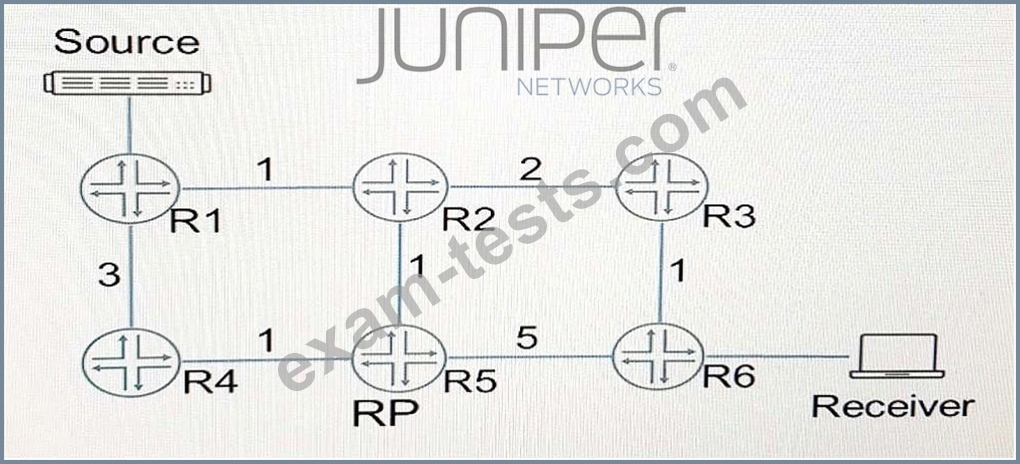

You have deployed sparce-mode multicast in your network using the IGP metrics shown in the exhibit.

Which path will (*, G) traffic follow form the source to the receiver before the (S, G) state is registered?

A.Source, R1, R4, R5, R6, Receiver

B.Source, R1, R2, R5, R2, R3, R6 Receiver

C.Source, R1, R2, R5, R6, Receiver

D.Source, R1, R2, R3, R6, Receiver

Question 25

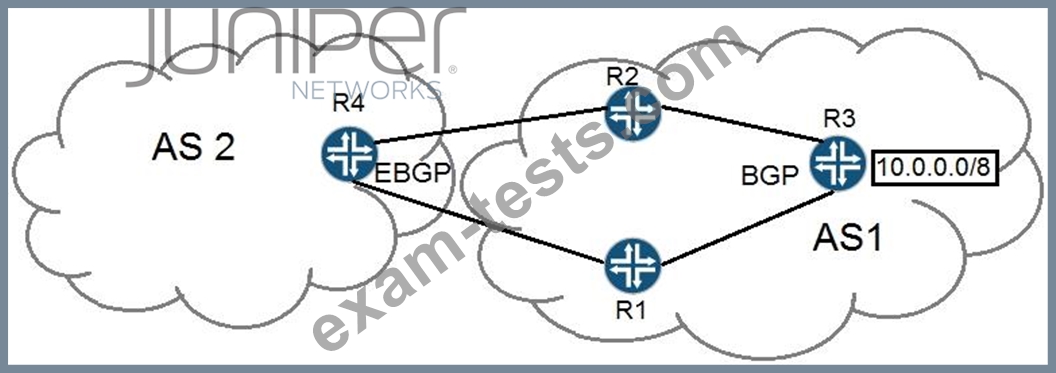

Click the Exhibit button.

Which well-known community needs to be used to restrict 10.0.0.0/8 from being advertised to AS
2?

A.no-publish

B.no-advertise

C.no-export-subconfed

D.no-export
