Free Access Juniper.JN0-663.v2022-05-26.q73 Practice Test (Page 10)

Question 41

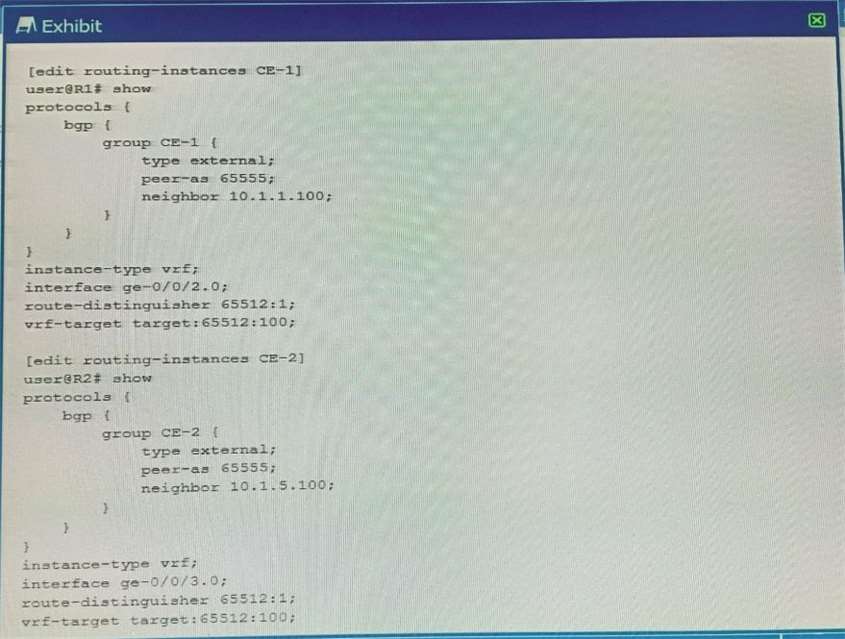

Exhibit:

Referring to the exhibit, which two statements are true? (Choose two.)

A.The CE-1 and CE-2 routes will have the same route distinguisher, which will stop the BGP routes from being shared.

B.An AS loop will exist between CE-1 and CE-2 and the BGP routes will not be shared.

C.The CE-1 and CE-2 routes will have the same route distinguisher, which will not stop the BGP routes from being shared.

D.An AS loop will not exist between CE-1 and CE-2 and the BGP routes will be shared.

Question 42

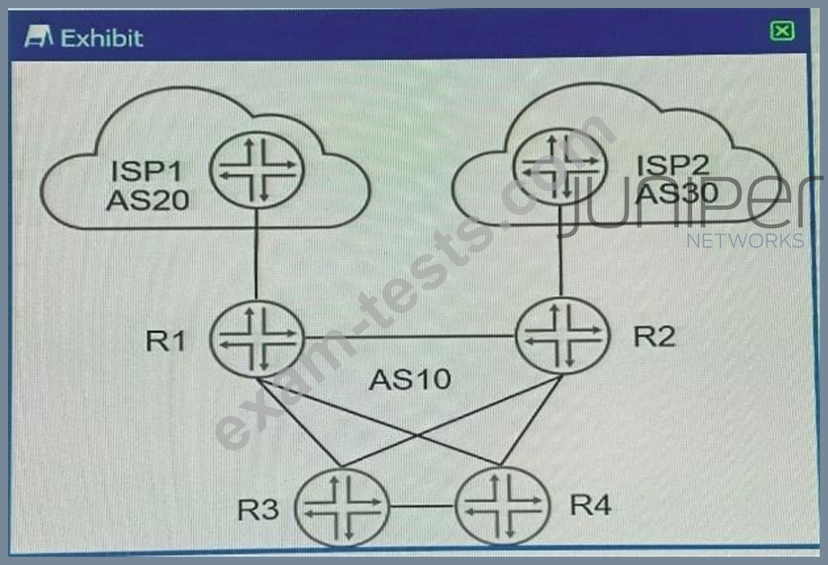

Exhibit:

Referring to the exhibit, you want to make ISP1 your preferred connection for inbound and outbound traffic.
Which two steps will accomplish this task? (Choose two.)

A.Create an export policy to prepend the ASN on advertised routes and apply it to the EBGP peer on R1.

B.Create an export policy setting local-preference 200 and next-hop self and apply it to the IBGP peers on R1.

C.Create an export policy to prepend the ASN on advertised routes and apply it to the EBGP peer on R2.

D.Create an export policy setting local-preference 200 and next-hop self and apply it to the IBGP peers on R2.

Question 43

Which two statements about wide and narrow metrics used in IS-IS are correct? (Choose two.)

A.Narrow metrics are enabled by default and use 8 bits in TLVs to send information.

B.Wide metrics are enabled with the wide-metrics-onlyparameter under protocols isis hierarchy.

C.Wide metrics are sent by default and use 24 bits in TLVs to send information.

D.Disabling narrow metrics results in external routes being leaked from L1 to L2 areas automatically.

Question 44

Exhibit:

Referring to the ABR configuration shown in the exhibit, which three statements are correct? (Choose three.)

A.The ABR does not summarize any routes within the 192.168.16.0/20 range.

B.The ABR advertises a single Type 5 external LSA to the backbone area for all Type 7 LSAs in the NSSA.

C.The ABR advertises a default route to the NSSA using a Type 7 LSA.

D.The ABR advertises a Type 5 external LSA to the backbone area for each Type 7 LSA in the NSSA.

E.The ABR advertises a single Type 3 summary LSA to the backbone area for all Type 1 and Type 2 LSAs in the 192.168.16 0/20 range.

Question 45

Exhibit:

Your network is connected to two different ISPs and you notice that they are using your network for transit traffic.
In this scenario, which two configuration statements will solve this problem? (Choose two.)

A.set policy-options as-path LOCAL-ROUTES " (65310 I 65441) +"

B.set policy-options as-path LOCAL-ROUTES "()"

C.set policy-options policy-statement ISP term ROUTES then reject

D.set policy-options policy-statement ISP term REST then reject
