Free Access Juniper.JN0-681.v2022-04-19.q64 Practice Test (Page 9)

Question 36

You are configuring VXLAN. and you must ensure that all switches for the multicast groups advertise their existence and learn about other VTEPs In this scenario. which protocol will accomplish this task?

A.BOP

B.PIM

C.OSPF

D.EVPN

Question 37

You are deploying a VXLAN using signaling overlay network in your new data center. You are able to establish your MP BGP peering session and see your EVPN routes, but traffic will not traverse the VXLAN using signaling overlay network.
What is a solution to this problem?

A.Increase the MTU on the logical VTEP source interface of all devices participating in VXLAN using EVPN signaling.

B.Increase the physical MTU on all ports on all devices participating in VXLAN using EVPN signaling.

C.Increase the protocol MTU on all devices participating in VXLAN using EVPN signaling

D.Enable the mtu-discovery feature on the MP peering sessions between VXLAN ANs EVPN signaling peers.

Question 38

You have an EBGP-based IP Fabric.
Why do you need an export policy on each leaf in this scenario?

A.to ensure a full mesh is formed between peers

B.to advertise local routes with the router reflector

C.to advertise local server-facing IP prefix

D.to accept remote server-facing IP prefixes

Question 39

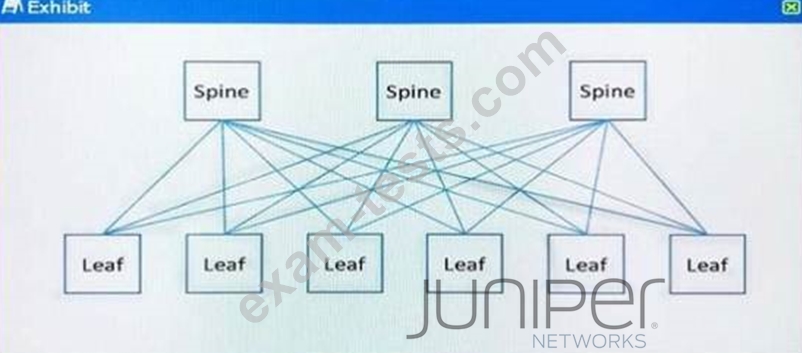

A customer has a 3-stage Clos architecture with three spine devices as shown in the exhibit.

If a single spine device fails, what percentage of the remaining bandwidth will be available from leaf node to leaf node?

A.approximately 75%

B.approximately 25%

C.approximately 66%

D.approximately 33%

Question 40

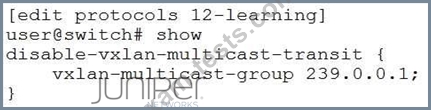

What is the purpose of the command shown in the exhibit?

A.to stop the reception of transit multicast traffic when there are no interested receivers attached to the local VTEP.

B.to stop the transmission of transit multicast traffic when there are no interested receivers attached to a remote VTEP.

C.to disallow IGMP requests for the group 239.0.0.1 from hosts attached to the local VTEP.

D.to disable the multicast group 239.0.0.1 across the entire VXLAN.
