* Zero-Touch Provisioning (ZTP):
* ZTP is a feature that allows for the automatic provisioning of devices with minimal manual intervention. It is widely used in large-scale deployments to quickly bring new devices online.
* Key Requirements for ZTP:
* A. DHCP Server:A DHCP server is crucial for ZTP as it provides the necessary information to new devices, such as the IP address, the location of the software image, and configuration files.
* D. File Server:The file server is where the software image and configuration files are stored. The device downloads these files during the provisioning process.
* Incorrect Options:
* B. Syslog Server:While a syslog server is important for logging and monitoring, it is not a requirement for the initial provisioning process.
* C. NTP Server:An NTP server is used for time synchronization, which is essential for accurate logging and operation but not specifically required for ZTP.
Data Center References:
* ZTP simplifies the deployment process by automating the initial configuration steps, relying heavily on DHCP for communication and a file server for delivering the necessary configuration and software.

* VXLAN Overview:
* VXLAN (Virtual Extensible LAN) is a network virtualization technology that encapsulates Layer
2 Ethernet frames into Layer 3 UDP packets for transmission over an IP network. It allows the creation of Layer 2 overlay networks across a Layer 3 infrastructure.
* Understanding VXLAN Components:
* VTEP (VXLAN Tunnel Endpoint):A VTEP is responsible for encapsulating and decapsulating Ethernet frames into and from VXLAN packets.
* VNI (VXLAN Network Identifier):A 24-bit identifier used to distinguish different VXLAN segments, allowing for up to 16 million unique segments.
* Correct Statements:
* C. Layer 2 frames are encapsulated by the source VTEP:This is correct. In a VXLAN deployment, the source VTEP encapsulates the original Layer 2 Ethernet frame into a VXLAN packet before transmitting it over the IP network to the destination VTEP, which then decapsulates it.
* A. A VXLAN packet does not contain a VLAN ID:This is correct. The VXLAN header does not carry the original VLAN ID; instead, it uses the VNI to identify the network segment. The VLAN ID is local to the switch and does not traverse the VXLAN tunnel.
* Incorrect Statements:
* B. The VNI must match the VLAN tag to ensure that the remote VTEP can decapsulate VXLAN packets:This is incorrect. The VNI is independent of the VLAN tag, and the VLAN ID does not need to match the VNI. The VNI is what the remote VTEP uses to identify the correct VXLAN segment.
* D. The VNI is a 16-bit value and can range from 0 through 16,777,215:This is incorrect because the VNI is a 24-bit value, allowing for a range of 0 to 16,777,215.
Data Center References:
* VXLAN technology is critical for modern data centers as it enables scalability and efficient segmentation without the constraints of traditional VLAN limits.

* VXLAN Group-Based Policies (GBP):
* VXLAN Group-Based Policies are used to apply security policies consistently across the network. These policies are often tied to user or device identities rather than static IP addresses, which allows for more dynamic and scalable security management.
* Scalable Group Tags via RADIUS and 802.1X:
* Option B:VXLAN GBP can use scalable group tags configured on a RADIUS server, which are then pushed to network devices through 802.1X. This allows for centralized and automated policy application based on user or device identity.
* Consistent Security Policy Application:
* Option C:GBP ensures that security policies are consistently applied across the network, regardless of where a user or device connects. This consistency is crucial in environments where security policies must follow the user or device.
Conclusion:
* Option B:Correct-Group tags can be configured on a RADIUS server and pushed via 802.1X, enabling centralized policy management.
* Option C:Correct-GBP ensures consistent application of security policies, which is essential for maintaining security across a dynamic network environment.

* Understanding VXLAN Tunneling:
* VXLAN (Virtual Extensible LAN) is a network virtualization technology that addresses the scalability issues associated with traditional VLANs. VXLAN encapsulates Ethernet frames in UDP, allowing Layer 2 connectivity to extend across Layer 3 networks.

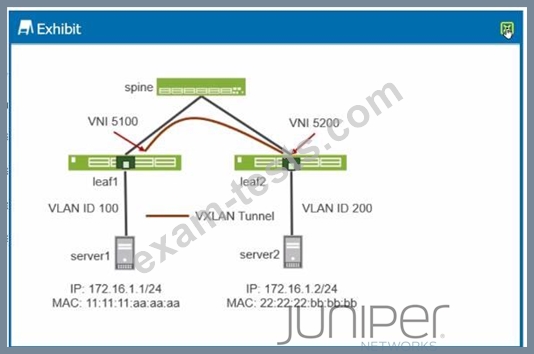

* Each VXLAN network is identified by a unique VXLAN Network Identifier (VNI). In this exhibit, we have two VNIs, 5100 and 5200, assigned to the VXLAN tunnels between leaf1 and leaf2.
* Network Setup Details:
* Leaf1:Connected to Server1 with VLAN ID 100 and associated with VNI 5100.
* Leaf2:Connected to Server2 with VLAN ID 200 and associated with VNI 5200.
* Spine:Acts as the interconnect between leaf switches.
* Traffic Flow Analysis:
* When traffic is sent from Server1 to Server2, it is initially tagged with VLAN ID 100 on leaf1.
* The traffic is encapsulated into a VXLAN packet with VNI 5100 on leaf1.
* The packet is then sent across the network (via the spine) to leaf2.
* On leaf2, the VXLAN header is removed, and the original Ethernet frame is decapsulated.
* Leaf2 will then associate this traffic with VLAN ID 200 before forwarding it to Server2.
* Correct Interpretation of the Exhibit:
* The traffic originating from Server1, which is tagged with VLAN ID 100, will be encapsulated into VXLAN and transmitted to leaf2.
* Upon arrival at leaf2, it will be decapsulated, and since it is associated with VNI 5200 on leaf2, the traffic will be retagged with VLAN ID 200.
* Therefore, the traffic will reach Server2 tagged with VLAN ID 200, which matches the network configuration shown in the exhibit.
* Data Center References:
* This configuration is typical in data centers using VXLAN for network virtualization. It allows isolated Layer 2 segments (VLANs) to be stretched across Layer 3 boundaries while maintaining distinct VLAN IDs at each site.
* This approach is efficient for scaling large data center networks while avoiding VLAN ID exhaustion and enabling easier segmentation.
In summary, the correct behavior, as per the exhibit and the detailed explanation, is that traffic sent from Server1 will be tagged with VLAN ID 200 when it reaches Server2 via leaf2. This ensures proper traffic segmentation and handling across the VXLAN-enabled data center network.

* Understanding Unnumbered BGP:
* Unnumbered BGP (Border Gateway Protocol) allows BGP peering between routers without assigning specific IP addresses to the interfaces. Instead, it uses the loopback address or another router identifier for the BGP session, making IP address management more straightforward in large-scale networks.
* Family inet Configuration:
* Option C:The family inet configuration is required on each interface involved in unnumbered BGP peering to support IPv4 address families. This ensures that IPv4 peering sessions can be established between devices.
* Automatic IPv4 Peering:
* Option D:Unnumbered BGP peering automatically provisions IPv4 peering sessions. This simplifies the configuration by eliminating the need to manually assign and manage IP addresses for BGP peering.
Conclusion:
* Option C:Correct-Unnumbered BGP requires the family inet configuration for IPv4.
* Option D:Correct-Unnumbered BGP automatically provisions IPv4 peering, simplifying setup.
