Drag and Drop Question

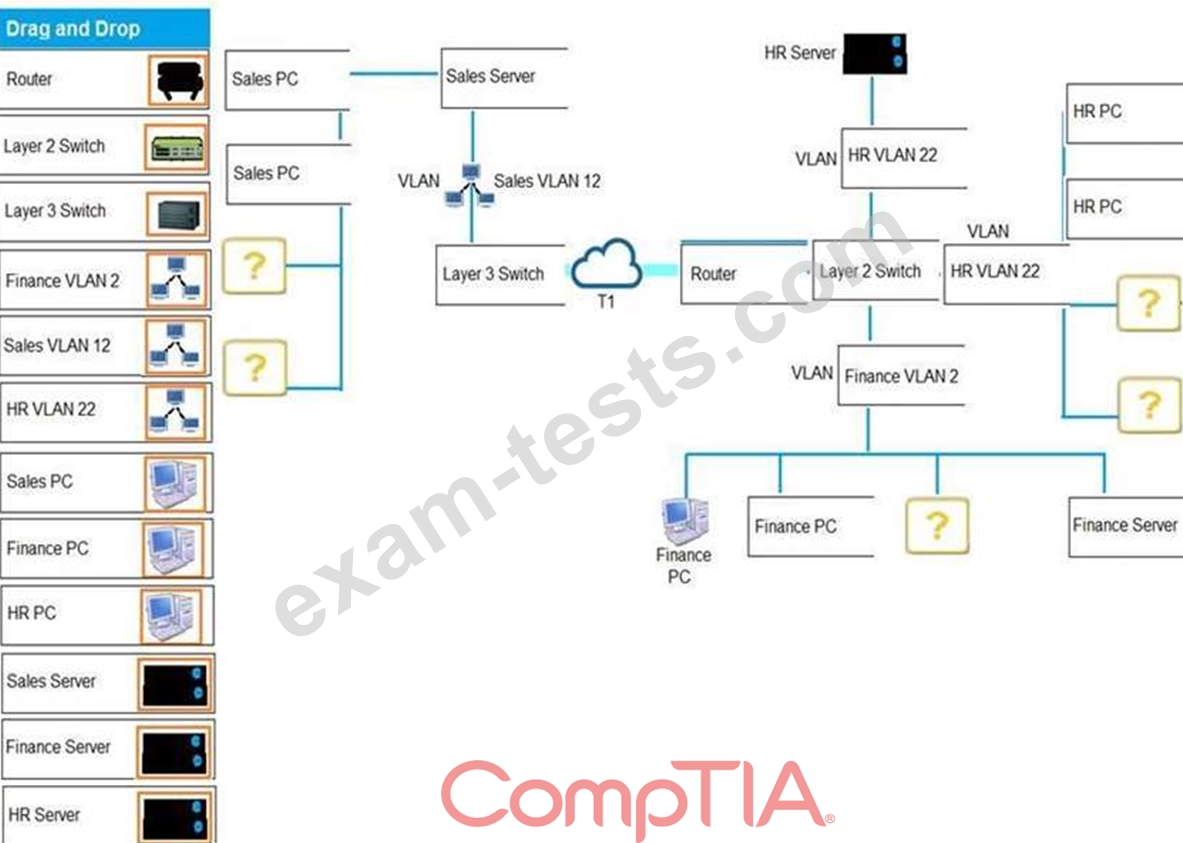

You are tasked with creating a network that will accomplish the following requirements.
Requirements:
The remote Sales Team must be able to connect to the corporate network.

Each department must have ONLY two PCs and a server.

Eqach department must be segmented from each other.

The following VLANs have been designed:

- VLAN 2 - Finance
- VLAN 12 - Sales
- VLAN 22 - Human Resources (HR)
Routing for VLAN 12 is implemented on the router. Routing for VLAN 2 and VLAN 22 is on the

switch.
Instructions

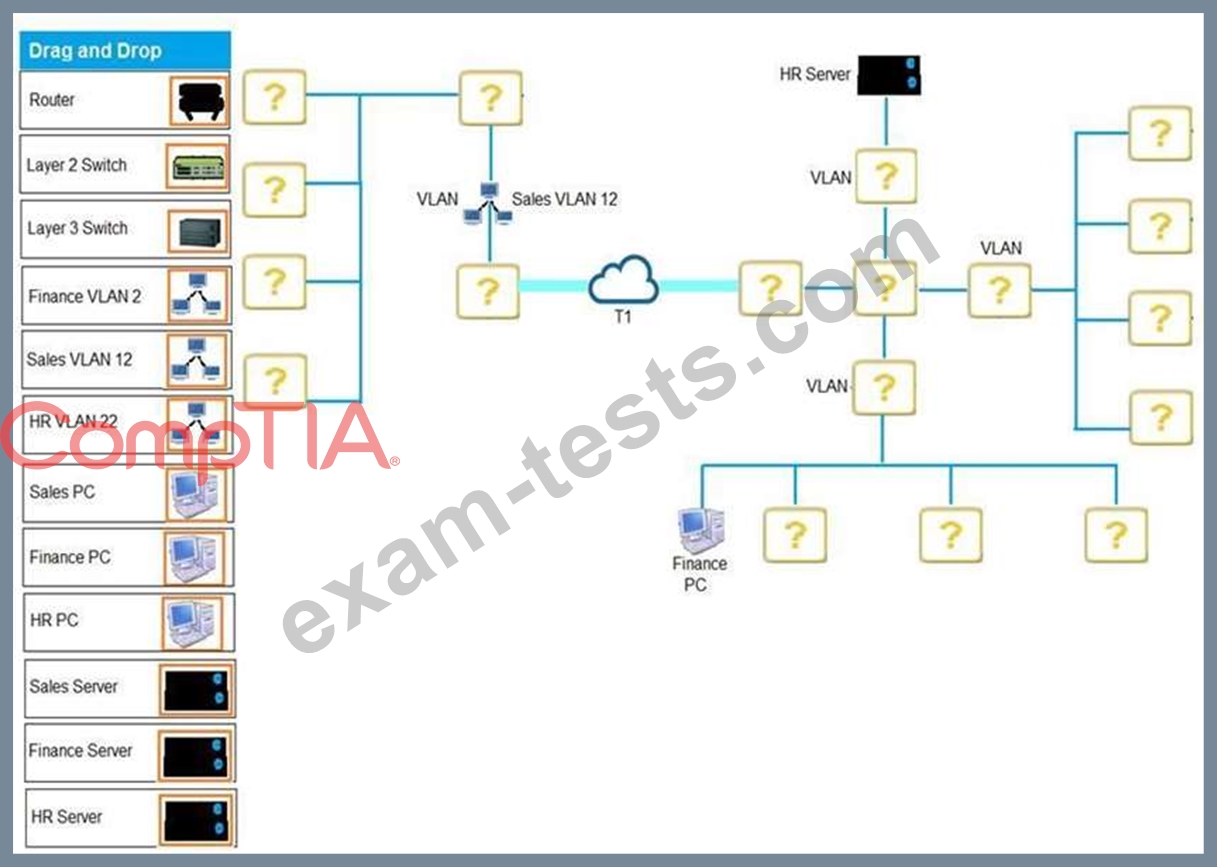

Complete the network by dragging the required objects onto the diagram.
Objects can be used multiple times and not all placeholders need to be filled.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

While logged into a financial application, a user gets errors when trying to write to the database.
The network administrator is not familiar with the application and how it communicates with the database. Which of the following documentation types should the network administrator use to troubleshoot the data flow?

A web server administrator has changed the domain register's A record for the company's website. External users can reach the website, but internet users are unable to do so. The web server is accessible by typing the internal IP into a web browser. Which of the following is the reason why the web server cannot be accessed?

A technician has replaced the Internet gateway router, and now no users can reach the Internet. The technician can ping the router Ethernet port but not the ISP's router IP address. Which of the following is the MOST likely problem?

Management requires remote access to network devices when the ISP is down. Which of the following devices would provide the BEST solution?
