The switch with the lowest STP priority becomes the root bridge.In the given table, core-sw01 has the lowest priority value of 24576. Therefore, it will be elected as the root bridge in the Spanning Tree Protocol topology.
Reference:Section 2.2 - Switching Technologies and Features - "Spanning Tree Protocol (STP)"

Confidentiality with Data at Rest: Confidentiality is a core principle of data security, ensuring that data stored (at rest) is only accessible to authorized individuals. This protection is achieved through mechanisms such as encryption, access controls, and permissions.
Privileged Access: The statement "Data can be accessed after privileged access is granted" aligns with the confidentiality principle, as it restricts data access to users who have been granted specific permissions or roles. Only those with the appropriate credentials or permissions can access the data.

The correct answer is The port's VLAN assignment on the switch because the symptoms indicate a Layer 2 segmentation issue. According to CompTIA Network+ (N10-009) troubleshooting methodology and VLAN concepts, if the IP configuration is correct and the TCP/IP stack is functioning, but the default gateway is unreachable, the issue often involves improper VLAN configuration.
In a switched environment, devices must be assigned to the correct VLAN to communicate with the appropriate default gateway interface (often configured on a router or Layer 3 switch). If the user's switch port is assigned to the wrong VLAN, the workstation may have a valid IP address but will not be able to reach the gateway because it is logically separated into a different broadcast domain.
Option A is unlikely since the IP configuration is already confirmed correct. Option C is not relevant because the issue is localized to a specific user, not a widespread DHCP failure. Option D refers to switch management configuration, which does not affect user traffic routing to the gateway.
Therefore, verifying the switch port's VLAN assignment is the most appropriate next troubleshooting step.

The correct answer is B. NAT64 . This scenario says the internal network is using only IPv6 . In the real world, many internet services still rely on IPv4, so an IPv6-only client may need a translation mechanism to reach IPv4-based servers. That is exactly where NAT64 is used. It allows communication between IPv6-only clients and IPv4 resources by translating between the two protocols.
The other options do not solve that requirement. MPLS is used for traffic forwarding across provider networks and has nothing to do with IPv4/IPv6 protocol translation. GRE creates tunnels, but it does not automatically translate one IP version into another. Static routing can direct traffic, but it cannot make IPv6- only hosts speak to IPv4-only internet destinations.
From a Network+ perspective, this question is testing knowledge of IPv6 transition and interoperability mechanisms . If the network is entirely IPv6 internally, but still needs access to parts of the internet that may be IPv4, some translation service has to exist at the boundary. Among the choices given, NAT64 is the only technology that fits that role. That is why B is the best answer.

See the Explanation for detailed information on this simulation
Explanation:

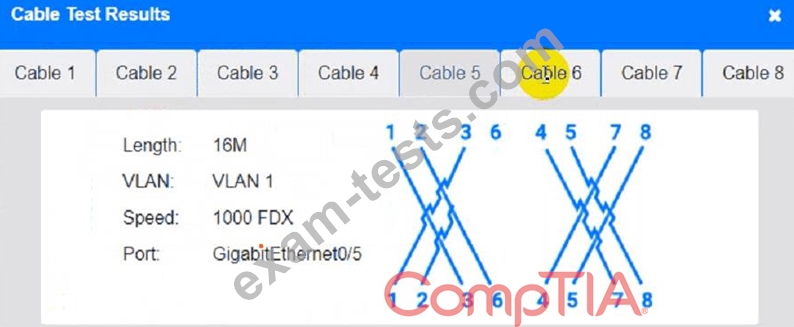

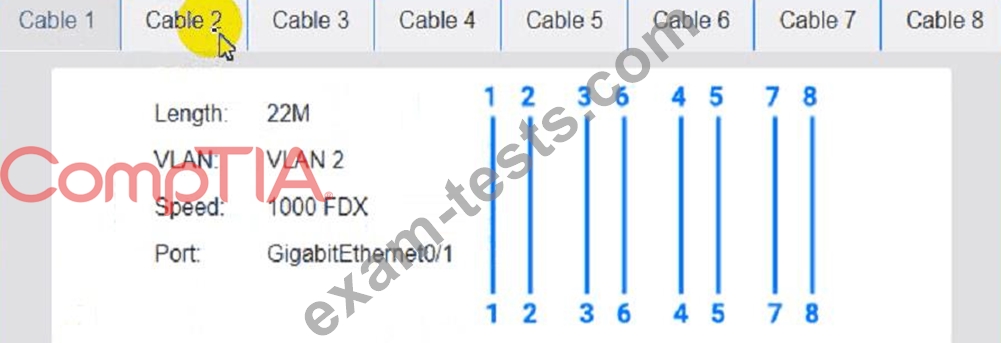

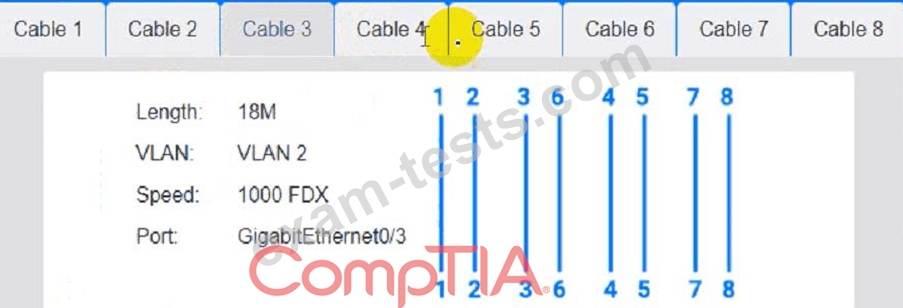

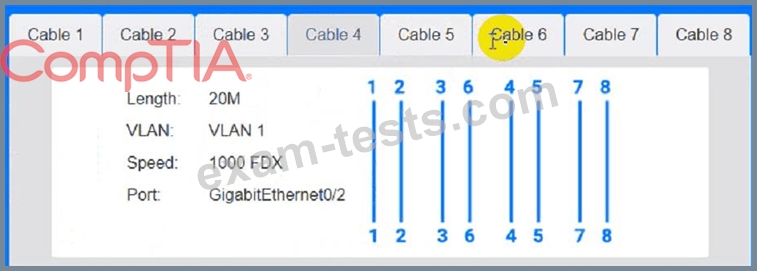

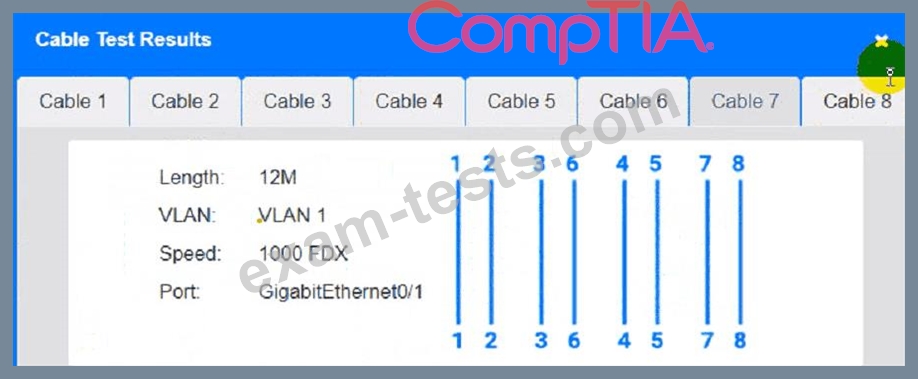

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding) To troubleshoot all the network components and review the cable test results, you can use the following steps:

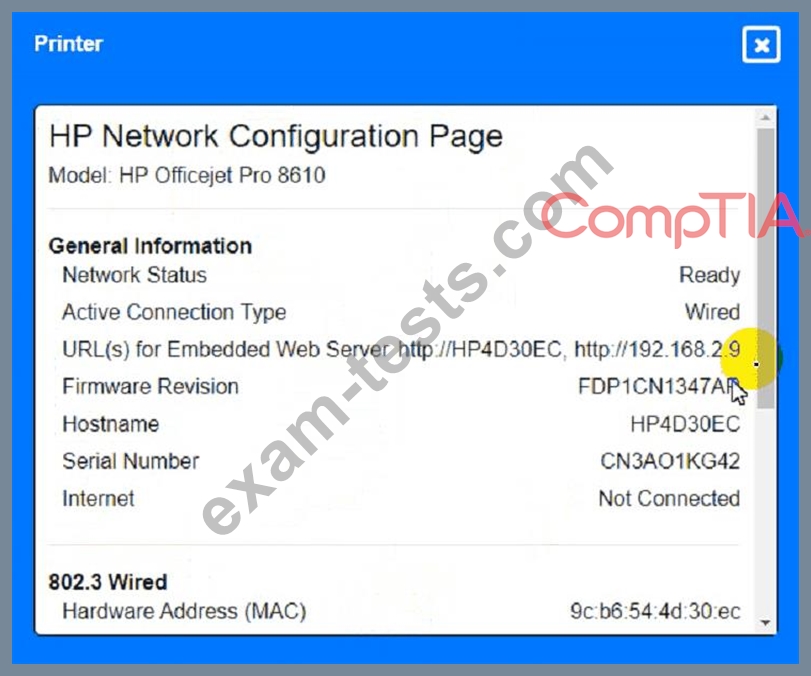

Click on each device and cable to open its information window.
Review the information and identify any problems or errors that may affect the network connectivity or performance.
Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

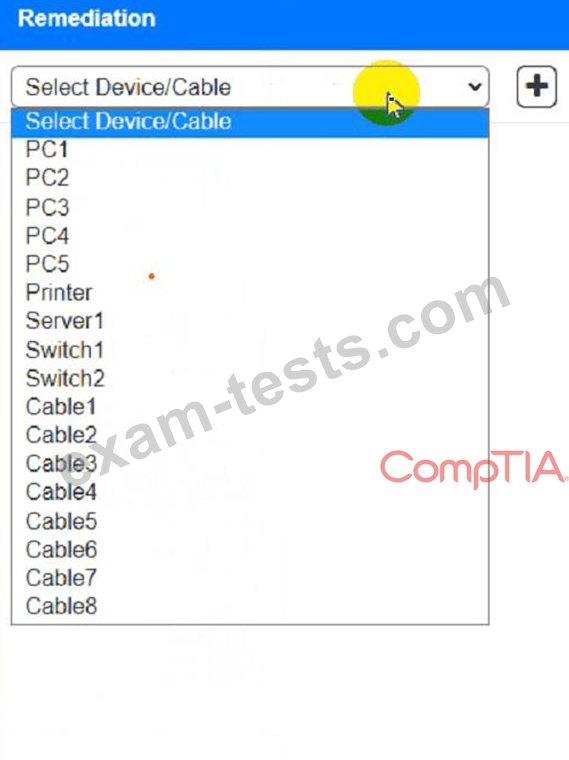

Fill in the remediation form using the drop-down menus provided.
Here is an example of how to fill in the remediation form for PC1:
The component with a problem is PC1.
The problem is Incorrect IP address.
The solution is Change the IP address to 192.168.1.10.
You can use the same steps to fill in the remediation form for other components.
To enter commands in each device, you can use the following steps:

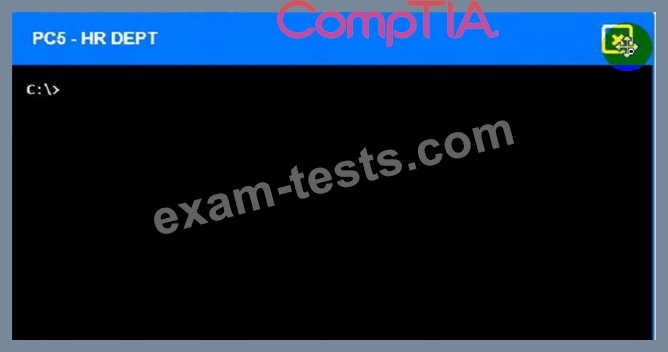

Click on the device to open its terminal window.
Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.
Enter the command ping <IP address> to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.
Enter the command tracert <IP address> to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.
Here is an example of how to enter commands in PC1:
Click on PC1 to open its terminal window.
Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.
Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.
Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.
You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.
