Question 31
Refer to the exhibits.

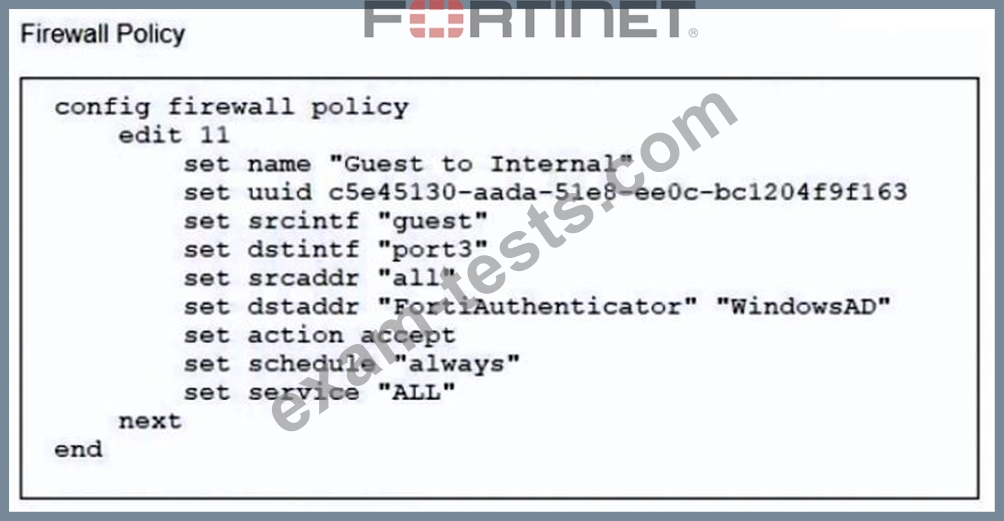

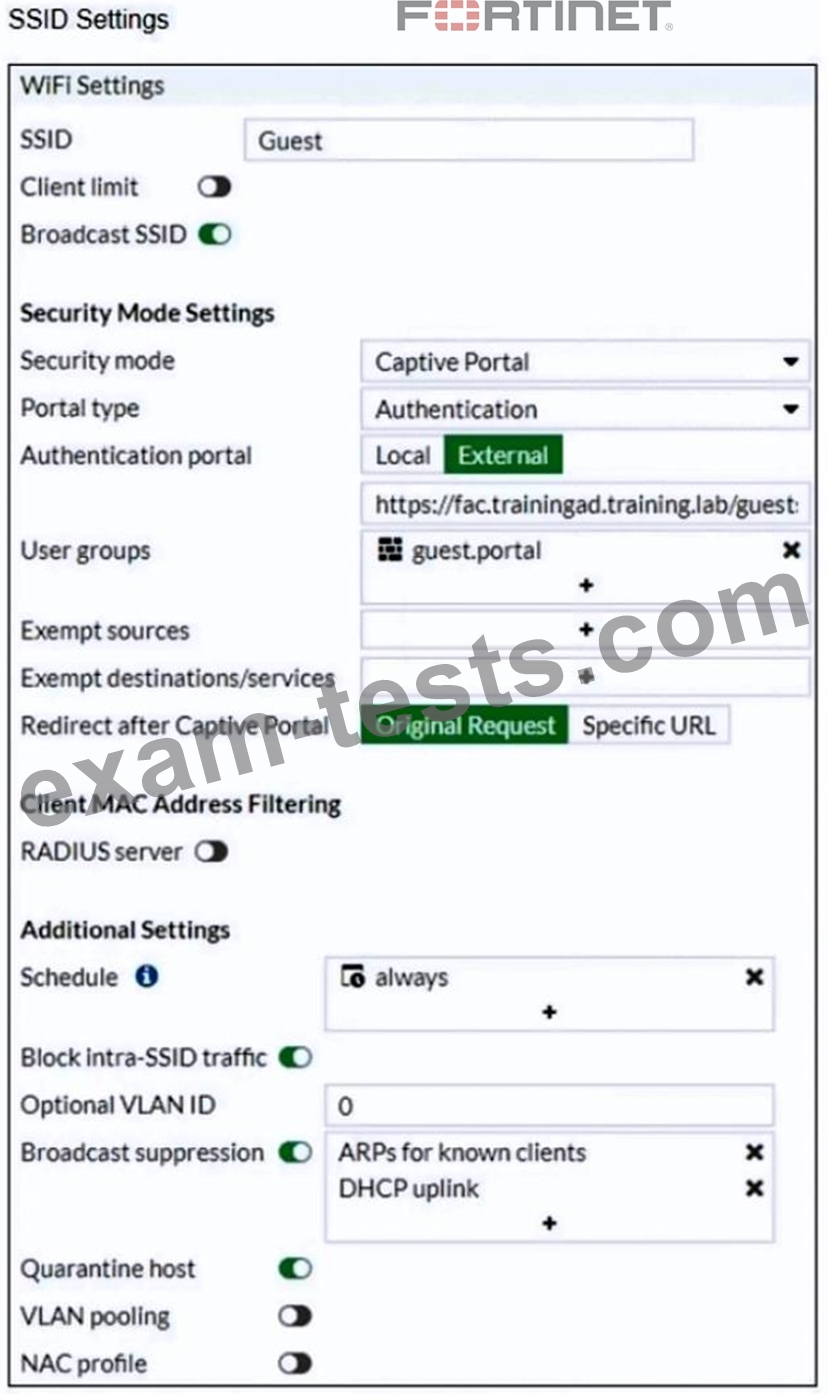

Examine the firewall policy configuration and SSID settings. An administrator has configured a guest wireless network on FortiGate using the external captive portal. The administrator has verified that the external captive portal URL is correct. However wireless users are not able to see the captive portal login page. Given the configuration shown in the exhibit and the SSID settings, which configuration change should the administrator make to fix the problem?
Examine the firewall policy configuration and SSID settings. An administrator has configured a guest wireless network on FortiGate using the external captive portal. The administrator has verified that the external captive portal URL is correct. However wireless users are not able to see the captive portal login page. Given the configuration shown in the exhibit and the SSID settings, which configuration change should the administrator make to fix the problem?
Question 32
Which two statements about the guest portal on FortiAuthenticator are true? (Choose two.)
Question 33
Refer to the exhibit. Examine the FortiManager configuration and FortiGate CLI output shown in the exhibit.
An administrator is testing the NAC feature. The test device is connected to a managed FortiSwitch device (S224EPTF19005867) on port2.
After applying the NAC policy on port2 and generating traffic on the test device, the test device is not matching the NAC policy; therefore, the test device remains in the onboarding VLAN.
Based on the information shown in the exhibit, which two scenarios are likely to cause this issue?
(Choose two.)
An administrator is testing the NAC feature. The test device is connected to a managed FortiSwitch device (S224EPTF19005867) on port2.
After applying the NAC policy on port2 and generating traffic on the test device, the test device is not matching the NAC policy; therefore, the test device remains in the onboarding VLAN.
Based on the information shown in the exhibit, which two scenarios are likely to cause this issue?
(Choose two.)
Question 34
Which FortiSwitch VLANs are automatically created on FortGate when the first FortiSwitch device is discovered1?
Question 35
An administrator is testing the connectivity for a new VLAN The devices in the VLAN are connected to a FortiSwitch device that is managed by FortiGate Quarantine is disabled on FortiGate While testing the administrator noticed that devices can ping FortiGate and FortiGate can ping the devices The administrator also noticed that inter-VLAN communication works However intra-VLAN communication does not work Which scenario is likely to cause this issue?
