Question 16

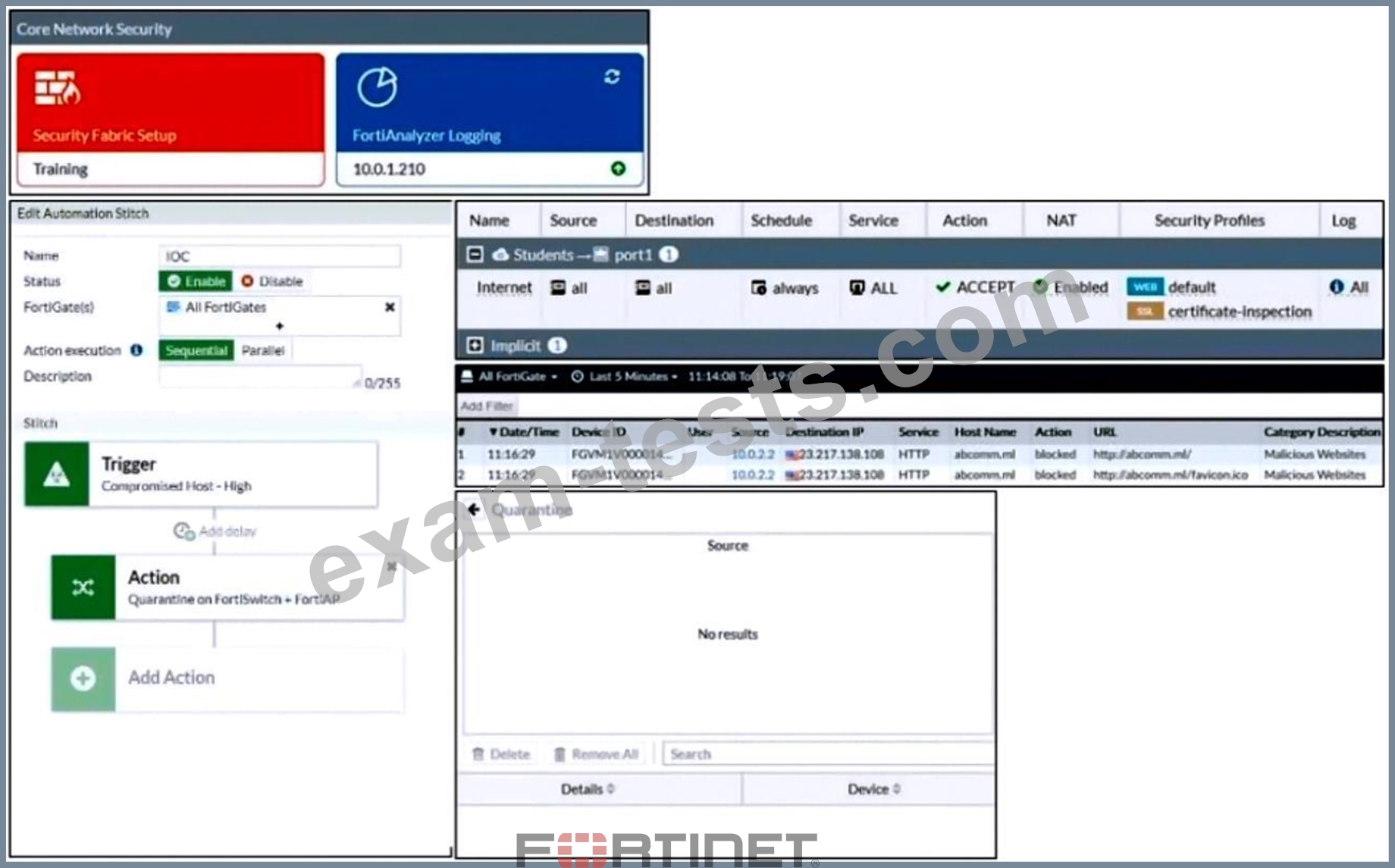

Refer to the exhibit. Examine the FortiGate configuration, FortiAnalyzer logs, and FortiGate widget shown in the exhibit.
An administrator is testing the Security Fabric quarantine automation. The administrator added FortiAnalyzer to the Security Fabric, and configured an automation stitch to automatically quarantine compromised devices. The test device (10.0.2.1) is connected to a managed FortiSwitch device.
After trying to access a malicious website from the test device, the administrator verifies that FortiAnalyzer has a log for the test connection. However, the device is not getting quarantined by FortiGate, as shown in the quarantine widget.
Which two scenarios are likely to cause this issue? (Choose two.)
  • Question 17

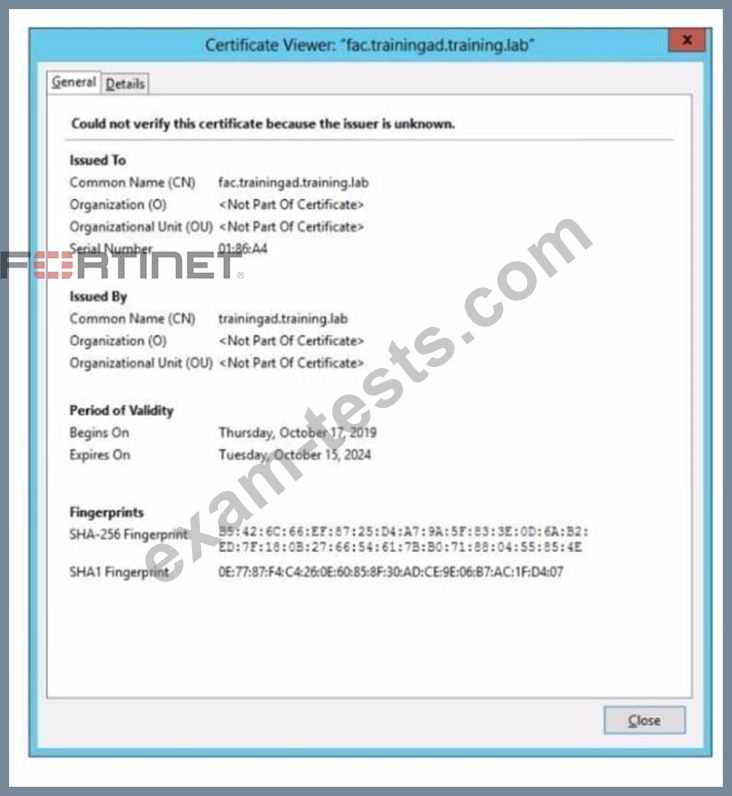

    Wireless guest users are unable to authenticate because they are getting a certificate error while loading the captive portal login page. This URL string is the HTTPS POST URL guest wireless users see when attempting to access the network using the web browser

    Which two settings are the likely causes of the issue? (Choose two.)
  • Question 18

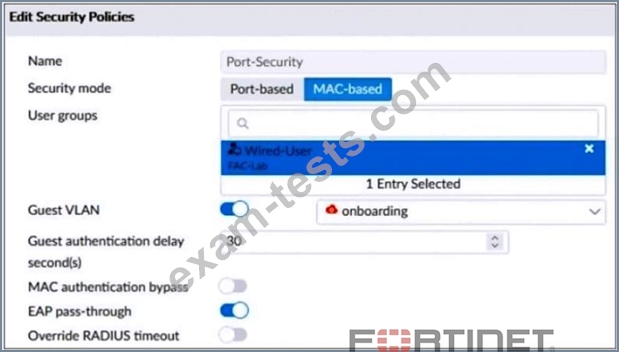

    Refer to the exhibit. Examine the FortiSwitch security policy shown in the exhibit. If the security profile shown in the exhibit is assigned to all ports on a FortiSwitch device for 802.1X authentication, which statement about the switch is correct?
  • Question 19

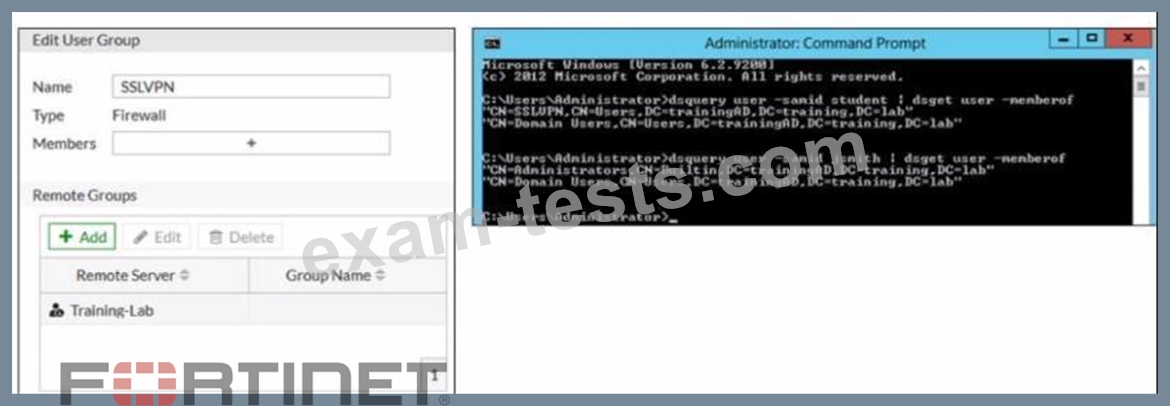

    Refer to the exhibit.

    Examine the FortiGate user group configuration and the Windows AD LDAP group membership information shown in the exhibit FortiGate is configured to authenticate SSL VPN users against Windows AD using LDAP The administrator configured the SSL VPN user group for SSL VPN users However the administrator noticed that both the student and j smith users can connect to SSL VPN Which change can the administrator make on FortiGate to restrict the SSL VPN service to the student user only?
  • Question 20

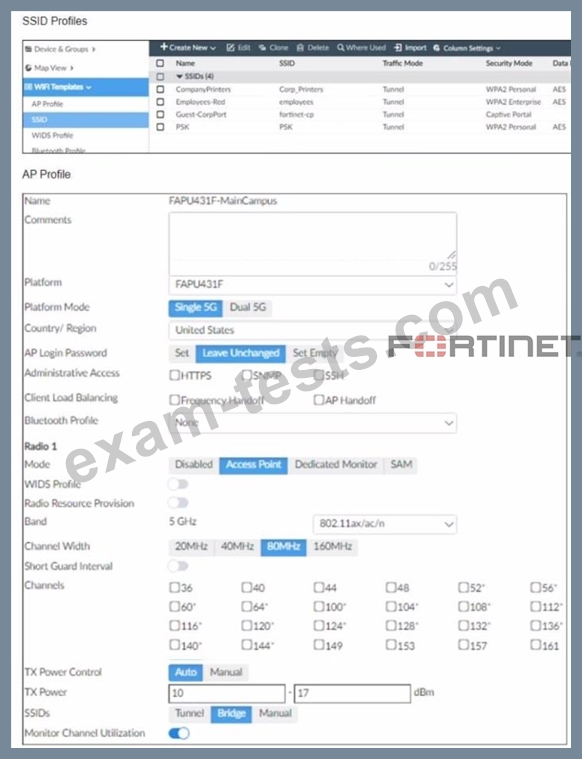

    Refer to the exhibits

    The exhibits show the wireless network (VAP) SSID profiles defined on FortiManager and an AP profile assigned to a group of APs that are supported by FortiGate None of the APs are broadcasting the SSlDs defined by the AP profile Which changes do you need to make to enable the SSIDs to broadcast?
