Online Access Free NSE7_SDW-7.0 Practice Test

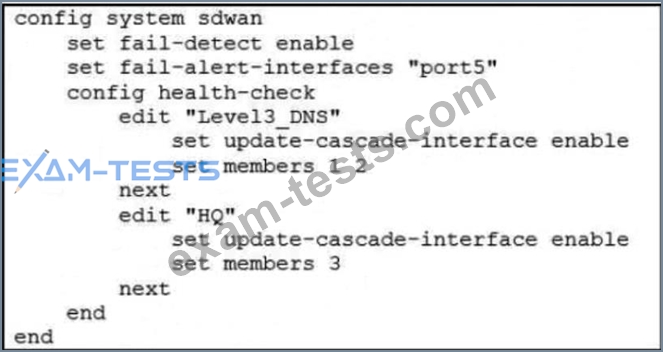

Refer to the exhibit.

Based on the exhibit, which action does FortiGate take?

• A.FortiGate brings down port5 after it detects all SD-WAN members as dead.
• B.FortiGate fails over to the secondary device after it detects all SD-WAN members as dead.
• C.FortiGate bounces port5 after it detects all SD-WAN members as dead.
• D.FortiGate brings up port5 after it detects all SD-WAN members as alive.

Which diagnostic command can you use to show the member utilization statistics measured by performance SLAs for the last 10 minutes?

• A.diagnose sys sdwan health-check
• B.diagnose sys sdwan log
• C.diagnose sys sdwan intf-sla-log
• D.diagnose sys sdwan sla-log

Refer to the exhibits.
Exhibit A -

Exhibit B -

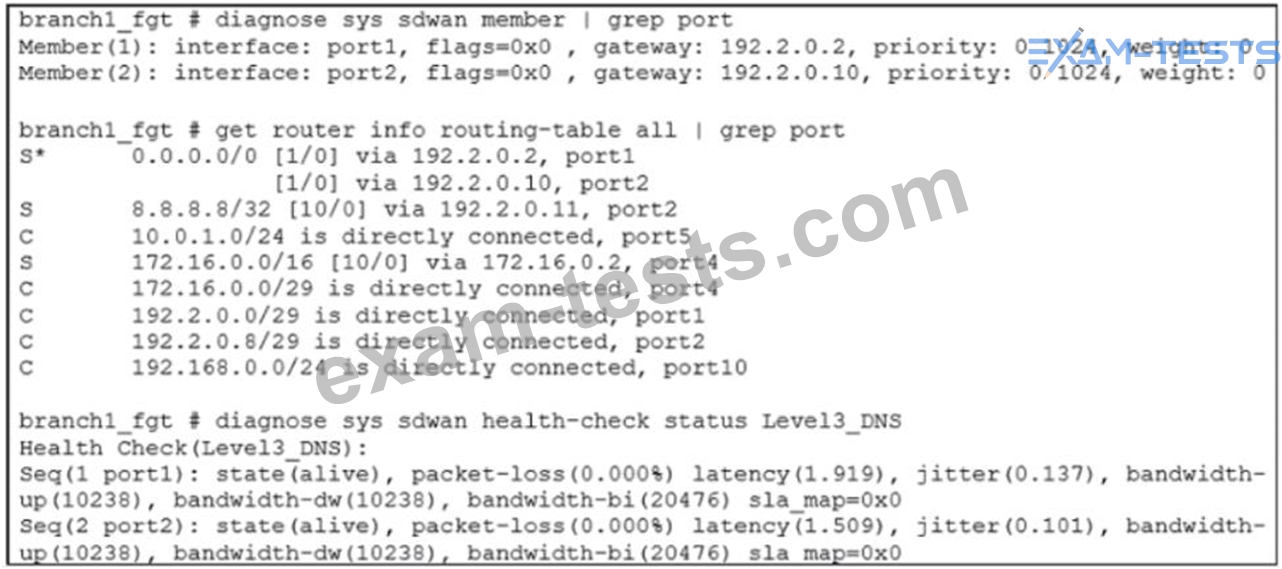

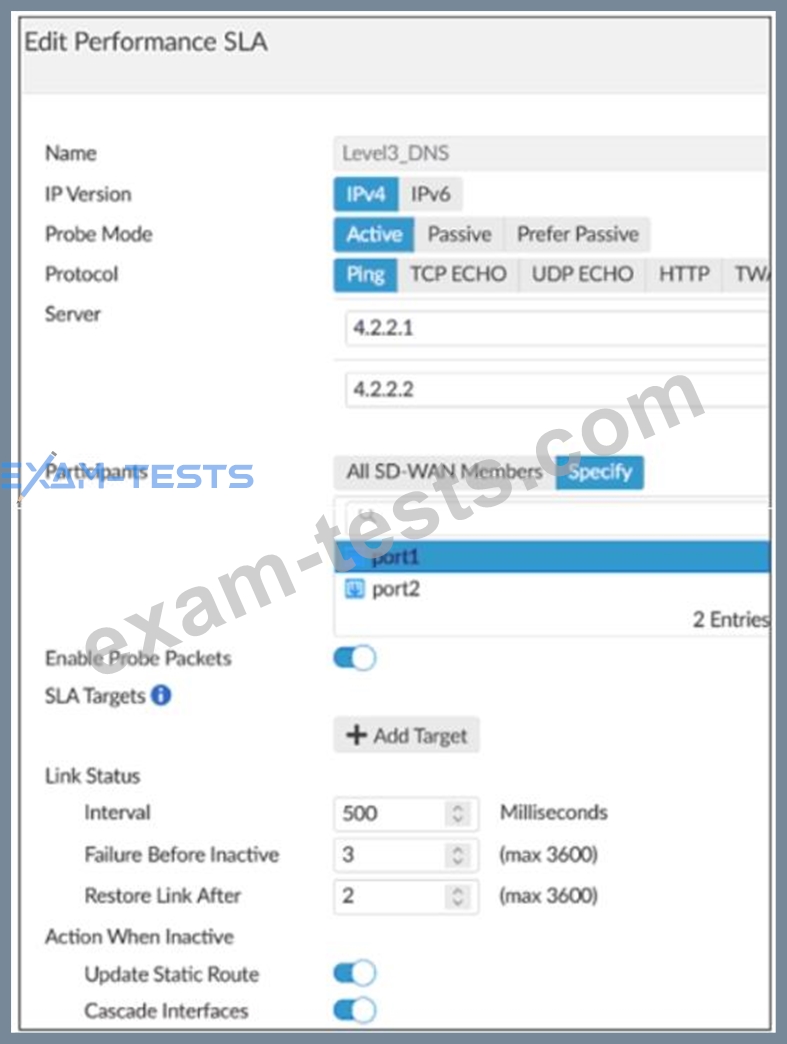

Exhibit A shows the SD-WAN performance SLA and exhibit B shows the SD-WAN member status, the routing table, and the performance SLA status.
If port2 is detected dead by FortiGate, what is the expected behavior?

• A.Port2 becomes alive after three successful probes are detected.
• B.Host 8.8.8.8 is reachable through port1 and port2.
• C.The administrator manually restores the static routes for port2, if port2 becomes alive.
• D.FortiGate removes all static routes for port2.

Which are two benefits of using CLI templates in FortiManager? (Choose two.)

• A.You can configure advanced CLI settings.
• B.You can reference meta fields.
• C.You can configure FortiManager to sync local configuration changes made on the managed device, to the CLI template.
• D.You can configure interfaces as SD-WAN members without having to remove references first.

What is a benefit of using application steering in SD-WAN?

• A.The traffic always skips the regular policy routes.
• B.You do not need to enable SSL inspection.
• C.You steer traffic based on the detected application.
• D.You do not need to configure firewall policies that accept the SD-WAN traffic.
