Free Access Fortinet.NSE7_SDW-7.2.v2024-11-26.q94 Practice Test (Page 6)

Question 21

Refer to the exhibit, which shows the IPsec phase 1 configuration of a spoke.

What must you configure on the IPsec phase 1 configuration for ADVPN to work with SD-WAN?

A.You must enable auto-discovery-sender.

B.You must enable net-device.

C.You must disable idle-timeout.

D.You must set ike-version to 1.

Question 22

Refer to the exhibits.
Exhibit A -

Exhibit B -

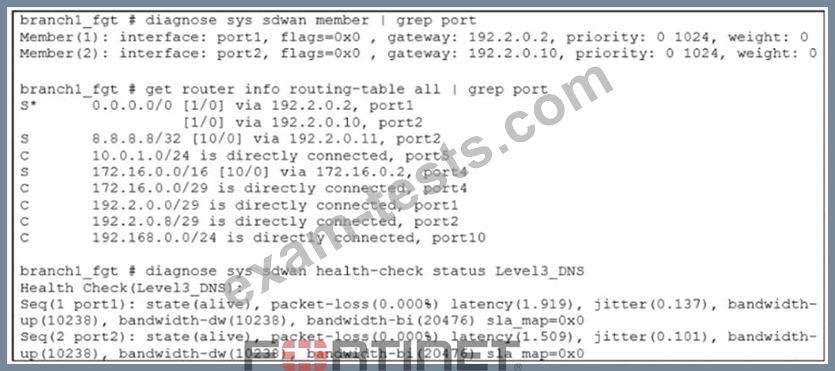

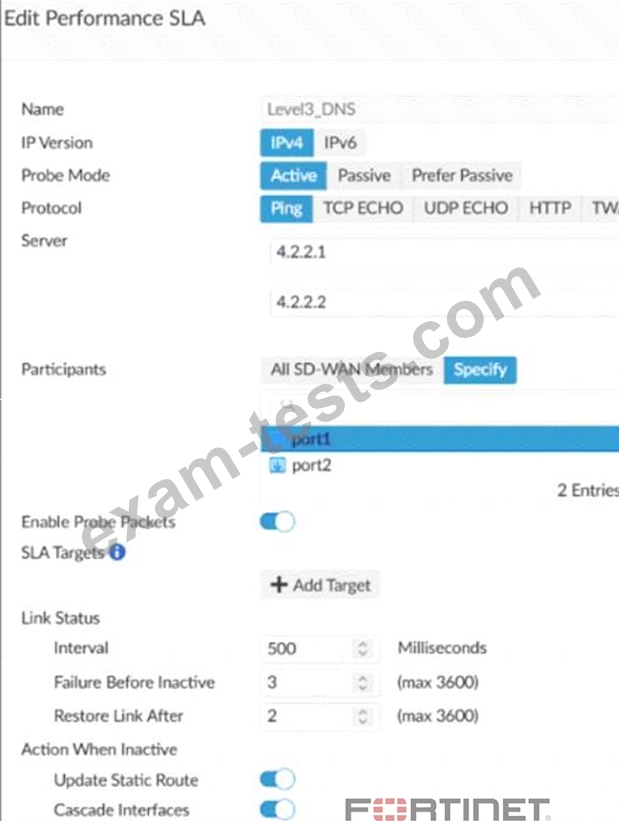

Exhibit A shows the SD-WAN performance SLA and exhibit B shows the SD-WAN member status, the
routing table, and the performance SLA status.
If port2 is detected dead by FortiGate, what is the expected behavior?

A.Port2 becomes alive after three successful probes are detected.

B.FortiGate removes all static routes for port2.

C.The administrator manually restores the static routes for port2, if port2 becomes alive.

D.Host 8.8.8.8 is reachable through port1 and port2.

Question 23

Refer to the exhibit.

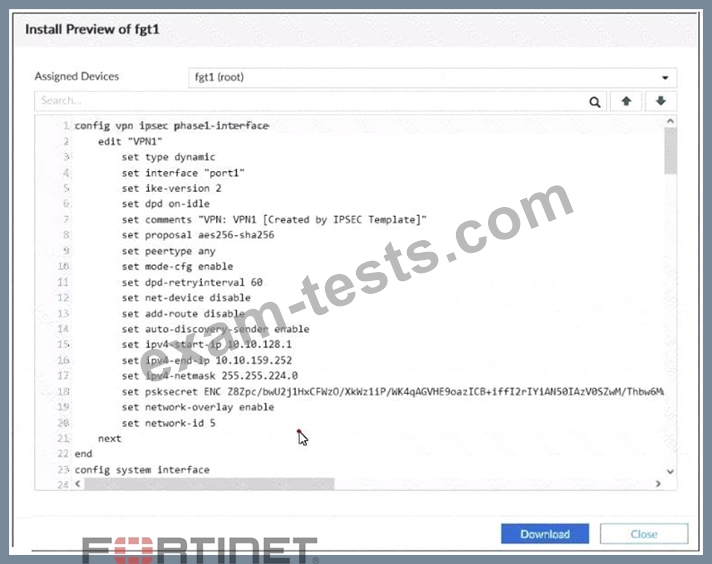

An administrator used the SD-WAN overlay template to prepare an IPsec configuration for a hub-and-spoke SD-WAN topology. The exhibit shows the installation preview for one FortiGate device. In the exhibit, which statement best describes the configuration applied to the FortiGate device?

A.It is a hub device. It can send ADVPN shortcut offers.

B.It is a spoke device that establishes dynamic IPsec tunnels to the hub. The subnet range is
10.10.128.0/23.

C.It is a spoke device that establishes dynamic IPsec tunnels to the hub. It can send ADVPN shortcut requests.

D.It is a hub device and will automatically discover the spoke devices that are in the SD-WAN topology.

Question 24

Refer to the exhibits.
Exhibit A -

Exhibit B -

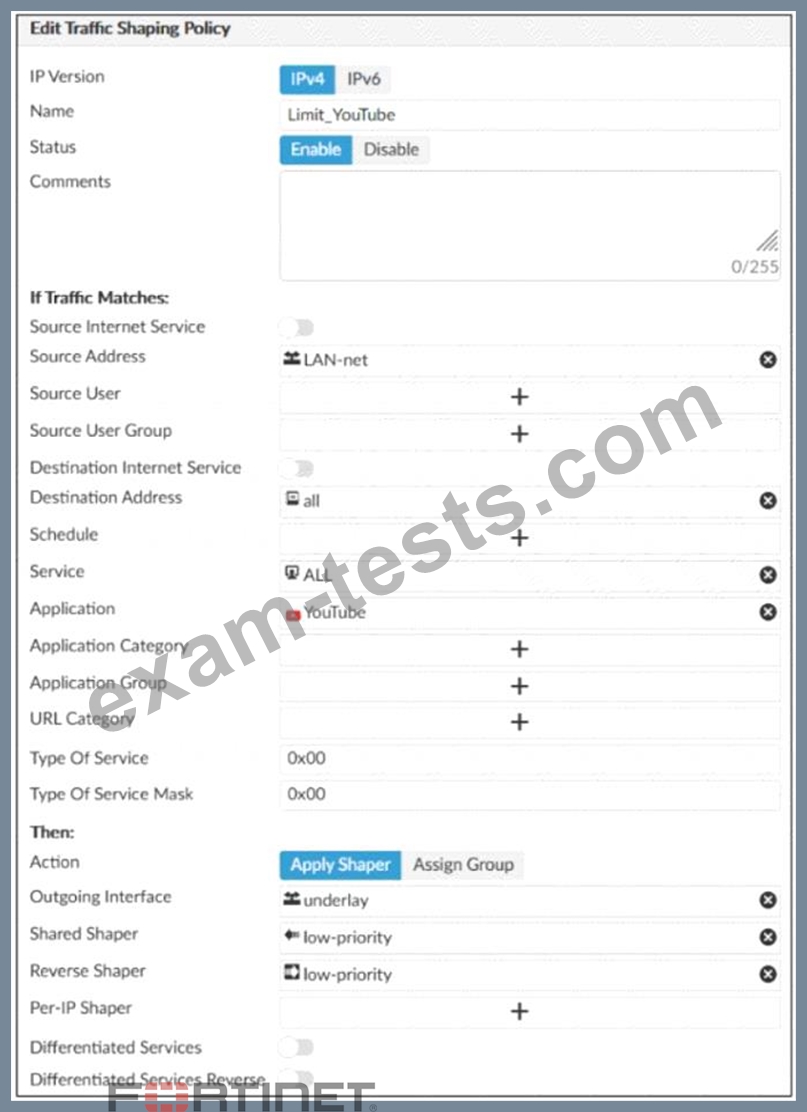

Exhibit A shows the traffic shaping policy and exhibit B shows the firewall policy.
The administrator wants FortiGate to limit the bandwidth used by YouTube. When testing, the administrator determines that FortiGate does not apply traffic shaping on YouTube traffic.
Based on the policies shown in the exhibits, what configuration change must be made so FortiGate performs traffic shaping on YouTube traffic?

A.Individual SD-WAN members must be selected as the outgoing interface on the traffic shaping policy.

B.Application control must be enabled on the firewall policy.

C.Web filtering must be enabled on the firewall policy.

D.Destination internet service must be enabled on the traffic shaping policy.

Question 25

Which are two benefits of using CLI templates in FortiManager? (Choose two.)

A.You can configure FortiManager to sync local configuration changes made on the managed device, to
the CLI template.

B.You can reference meta fields.

C.You can configure interfaces as SD-WAN members without having to remove references first.

D.You can configure advanced CLI settings.
