Question 1

Please read this scenario prior to answering the question
The ArchiSurance Mobile consumer solution is used for selling and renewing insurance products, providing customer service, enabling accurate and convenient home recordkeeping, and capturing and processing claims. The solution consists of three applications. The Consultant application lets customers review their existing coverage, and update it based on common life events, such as getting a new car, moving into a new home, or having a family member move in or out. If necessary, they can speak or chat with a customer service representative. The Home Manager application helps customers photograph and catalogue their valuable possessions in order to support the filing of accurate claims in case of loss or damage. The Claim Manager application enables customers to quickly file a claim for loss or damage to an insured auto, home or possession. It enables customers to describe the incident by referencing information captured with the Consultant and the Home Manager applications. In addition, it allows the customer to add photographs, audio, video and text to support a claim, submit the claim, and monitor its progress.
The ArchiSurance Mobile applications rely on a number of application services hosted by ArchiSurance. The first is an Auto Identification and Description (AID) service that the Consultant application uses to validate and complete auto information entered by customers. The second service, Home Identification and Description (HID) performs the same function for home information, and is used by the Home Manager application. The Consultant application also uses the Virtual Agent service to guide customers as they select coverage options, the Payment Processor service to arrange premium payments, and the Coverage Activator service to generate policies and put them in force.
ArchiSurance Mobile also relies on a number of technology services. The Home Manager application uses a Multimedia Repository service to store and retrieve information about insured homes. The Claim Manager application also uses this service for claim information entered by customers. All three ArchiSurance Mobile applications use a Personal Security service to register and authenticate customers, and to manage their profiles.
Each application service is realized by an application component with the same name. Each technology service is realized by a system software environment, having the same name. ArchiSurance hosts both the application components and system software environments in a virtualized server pool within its data center. Each service has its own virtual server. Each virtual server is connected to a data center network (DCN) which in turn connects to a commercial wide area network (WAN).
Refer to the Scenario

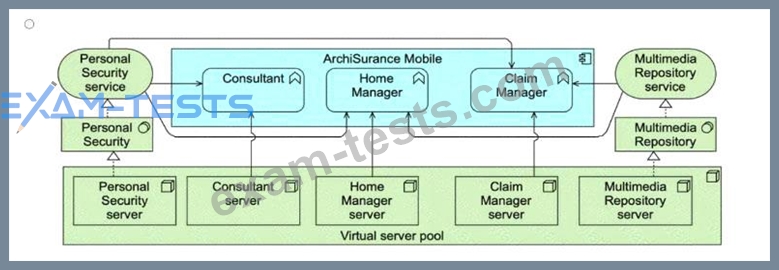

You have been asked to show the applications that make up the ArchiSurance Mobile solution and the technology that supports these applications.
Which of the following answers provides the best description? Note that it is not necessary to model the networks.

A.A diagram of a server Description automatically generated

B.A diagram of a server Description automatically generated

C.A diagram of a computer server Description automatically generated

D.A diagram of a server Description automatically generated

Correct Answer: C

In this scenario, the focus is on modeling theArchiSurance Mobile solution, showing theapplicationsthat make up this solution and thetechnology infrastructurethat supports them. This includes applications, application services, and the system software environments (technology services) upon which the applications rely.
Key ArchiMate® 3.2 Concepts Applied:
* Application Components and Services:
* Consultant Application:This allows customers to review, update coverage, and speak with customer service representatives. It uses the following application services:
* Auto Identification and Description (AID)for validating auto information.
* Virtual Agentfor helping customers select options.
* Payment Processorto arrange payments.
* Coverage Activatorto generate and activate policies.
* Home Manager Application:This allows customers to catalogue possessions and use theHome Identification and Description (HID)service to validate home information.
* Claim Manager Application:Enables filing of claims, referencing data from theConsultantand Home Managerapplications and storing information (such as photos, videos) via theMultimedia Repository.
* Technology Services:
* Personal Security Service:Used for customer registration, authentication, andprofile management across all three applications.
* Multimedia Repository Service:Used to store and retrieve information related to home possessions and claim details, supporting both theHome ManagerandClaim Manager applications.
* Technology Infrastructure:
* Each application component (Consultant, Home Manager, Claim Manager) is hosted on its own virtual serverwithin avirtualized server pool.
* Each technology service is realized by a corresponding system software environment (e.g., Multimedia Repository, Personal Security), each with its own virtual server.
* The infrastructure is hosted in a data center, but the focus here is on the services rather than the network connections.
Why Option C is Correct:
* Option Caccurately represents the keyapplications(Consultant, Home Manager, Claim Manager) in connection with the appropriatetechnology servicesand their respectivevirtual servers.
* The model shows the relationships between the applications and their dependencies onPersonal SecurityandMultimedia Repository, aligning with the description provided.
* Thevirtual server poolis depicted clearly, showing how the applications and services are realized within this infrastructure.
* The relationships betweenapplicationsandapplication services(AID, HID, Virtual Agent, Payment Processor, Coverage Activator) are not modeled in full detail here, but they are implicitly understood through the applications.
Why Other Options Are Incorrect:
* Option AandOption Dboth incorrectly depict some relationships between the applications and their supporting technology services or servers, or miss certain dependencies.
* Option Bdoes not provide as clear a depiction of the virtualized infrastructure and how the applications relate to theMultimedia RepositoryandPersonal Securityservices.
Conclusion:
Option Cprovides the most accurate and complete description of theArchiSurance Mobile solutionand the supporting technology, as required by the scenario. It correctly illustrates the relationships between the applications, the virtual servers, and the supporting technology services according to ArchiMate® 3.2 principles.

Question 2

Please read this scenario prior to answering the question
The ArchiSurance enterprise document management solution includes a sophisticated ecosystem of applications and technologies. Designed with a strong emphasis on high availability, it plays a vital role in providing support for a diverse range of document types and managing a substantial volume of document-based transactions on a daily basis.
Recognizing its importance to the business, the document management solution is redundantly hosted at two geographically separate data center sites, both configured identically for seamless operations.
The system software at the core of the document management solution is comprised of three key modules.
The Document Engine serves as a repository, facilitating document storage, retrieval, and various other operations. The Workflow Engine acts as a host for document management applications, while the Application Engine powers the most advanced and sophisticated applications within the system.
Two key factors have driven the Architecture Board's approval of a project aimed at updating this critical solution. Firstly, the supplier of the Workflow Engine has given notice of the end of support for the current software version, necessitating an upgrade. Secondly, the system administrator responsible for the Application Engine has flagged the need for hardware replacement on the server where the software is currently running. Given that the Claim Management application shares infrastructure with the Application Engine, the involvement of the system administrator responsible for this application is crucial in the project planning and execution.
Refer to the Scenario

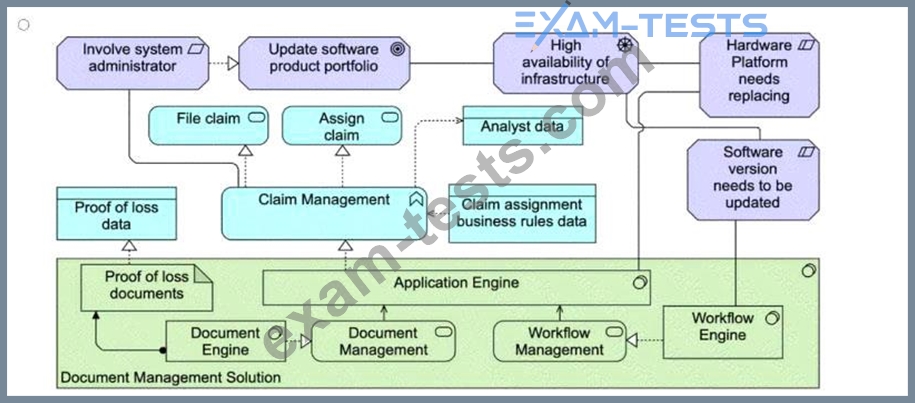

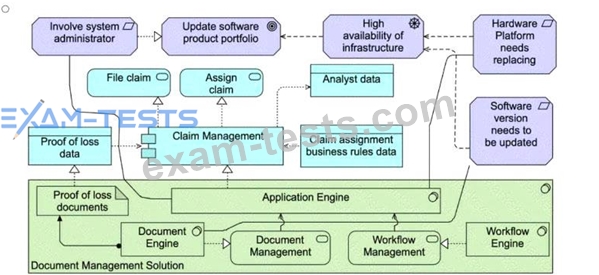

You are the Enterprise Architect within this organization. You have been assigned the task of modeling the applications and technology for this solution, as well as outlining the motivations driving the need for its update.
Based on the scenario, which answer provides the most complete and accurate description?

A.A diagram of a software project Description automatically generated

B.A diagram of software development Description automatically generated

C.A diagram of software development Description automatically generated

D.A diagram of software development Description automatically generated

Correct Answer: D

This scenario revolves aroundArchiSurance's document management solutionand themotivationsbehind updating the solution due to software and hardware challenges. The task is to model both theapplicationsand technology componentsinvolved, along with themotivationsdriving the need for an update.
Key ArchiMate® 3.2 Concepts Applied:
* Applications and Components:
* Claim Management Application:This application handles key processes such asfiling claimsand assigning claims, and it shares infrastructure with theApplication Engine.
* Document Management Solution:Includes several subsystems such as:
* Document Engine:Managesdocument storage, retrieval, and processing operations.
* Workflow Engine:Facilitates document workflows and supports document-related operations.
* Application Engine:Hosts sophisticated applications likeClaim Management.
* Data Objects:
* Proof of Loss DocumentsandProof of Loss Dataare critical components managed by the Document Management Solution. This data is processed and handled by both theDocument Engineand theClaim Managementapplication.
* Technology and Infrastructure:
* Hardware Platform Needs Replacing:TheApplication Engineruns on hardware that needs replacement. This drives a part of the motivation for updating the infrastructure.
* Software Version Needs to Be Updated:TheWorkflow Engineis running on outdated software, necessitating an upgrade to ensure continued support and functionality.
* High Availability of Infrastructure:Given that the system is redundantly hosted across two data centers,high availabilityis crucial for seamless operations. This includes continuous availability for the document management processes.
* Motivations and Drivers:
* Theend-of-supportnotice from theWorkflow Enginesupplier requires anupgradeto maintain operational continuity.
* The system administrator responsible for theApplication Enginehas raised concerns about hardware needing replacement, adding urgency to the infrastructure upgrade.
Why Option D is Correct:
* Option Dprovides the most comprehensive representation of the applications, infrastructure, and motivations for updating the solution.
* It clearly shows theClaim Management Applicationand its interaction with theClaim Assignment Business Rules Data, as well as how it relies on theApplication Engine.
* TheDocument Management Solutionand its subsystems (Document Engine, Workflow Engine, and Application Engine) are correctly depicted, with clear relationships to the data they manage (Proof of Loss Documents and Data).
* The motivations for change-specifically, the need toupdate the Workflow Engine softwareand replace thehardware platform-are clearly shown, alongside their impact on the overall system.
* The diagram shows the involvement of thesystem administratorin the update process, which is important for ensuring smooth project execution.
Why Other Options Are Incorrect:
* Option AandOption Bdo not accurately capture all necessary relationships, particularly the connections between theClaim Managementapplication and its reliance on theApplication Engine infrastructure. They also miss some of the drivers related to the requiredhardware replacement.
* Option Comits some key details regarding how theClaim Management ApplicationandDocument Management Solutioncomponents interact with the system, particularly theClaim Assignment Business Rules DataandProof of Loss Data.
Conclusion:
Option Dis the best answer because it offers the most complete and accurate representation of the applications, technology infrastructure, and driversfor the update project. It clearly illustrates how the Claim ManagementandDocument Managementsystems work together, along with the necessary infrastructure updates, in line with ArchiMate® 3.2 modeling standards.

Question 3

Please read this scenario prior to answering the question
ArchiAir Catering Services (ACS) manages the catering services for ArchiAir, a leading airline. ACS is the sole catering supplier for all ArchiAir flights, and its services include full provisioning to the aircraft.
Currently, ACS operates three central production facilities, supported by distribution hubs and local pre-flight production facilities. The central production facilities are responsible for producing standardized non-food materials (such as plates, cutlery, and boxes), non-perishable food products, and key ingredients required by the local production facilities. These materials are subsequently distributed to the distribution hubs, whichalso serve as warehouses for the local production facilities. Within the local production facilities, multiple production machines are utilized, each featuring dedicated workstations for chefs and quality inspectors. Most of the local production facilities employ fully automated assembly lines, including built-in packaging stations. The loaded service trolleys are then transported to the aircraft using small lorries.
In response to investor pressure for ArchiAir to reduce its carbon footprint, the CEO of ACS has announced a plan to address this environmental concern. Subsequently, the Ministry of Social Welfare and Health has enacted a law mandating a reduction in CO2 emissions from all production facilities by the end of the year. Additionally, the airline's decision to raise ticket prices due to escalating fuel costs has led to a decrease in passenger numbers. This, in turn, impacts the volume of non-food materials required from ACS. An intemal investigation has produced a report highlighting the potential benefits of centralizing production facilities and reducing the number of distribution centers. Such changes would result in lower CO2 emissions while still effectively meeting all the requirements of ArchiAir.
In addition to evaluating its supply chain to reduce its carbon footprint, ArchiAir is taking proactive steps to achieve a net zero carbon footprint for its IT operations. The Chief Information Officer (CIO) has identified two crucial requirements to support this endeavor. The first requirement involves switching to renewable energy for ACS facilities, which are often located in remote areas where traditional fuels are the primary source of energy. To align with sustainability goals, ArchiAir aims to transition these facilities to renewable energy sources. By utilizing renewable energy, ArchiAir can significantly reduce its reliance on traditional fuels and contribute to a greener operation. The second requirement pertains to the scalability of ArchiAir's IT operations, taking into account the airline's susceptibility to seasonal changes in demand. The CIO has observed notable disparities between sites that have additional blade servers and can scale their capacity, and sites that solely rely on the two mainframes housed in central facilities. A comprehensive report has revealed that the blade servers have a negligible impact on resource waste, whereas the mainframes are notorious for their power inefficiency, particularly during periods of low demand.
Refer to the Scenario

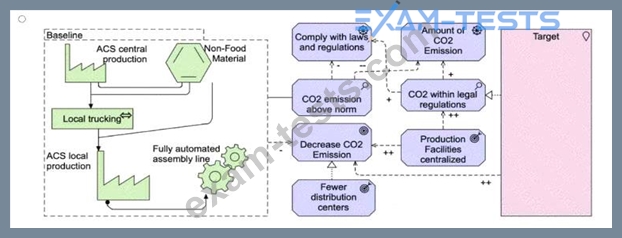

Which of the following answers best describes the proposed transition from baseline to target, including details of motivation for changes? Note that there is no need to show the details of the target state.

A.

B.

C.A diagram of a process Description automatically generated

D.

Correct Answer: D

The correct answer isD, as it best describes the transition from the baseline to the target state, including the motivation for changes based on the scenario. Here's a detailed explanation of whyDis the most accurate model:
* Baseline and Target:
* TheBaselinestate in all answers correctly depicts the current structure of ACS's operations, including theACS Central Production,Local Trucking,ACS Local Production, andFully Automated Assembly Line.
* Dcaptures the essential transition from this baseline state to the target state by illustrating how the organization is aiming to decrease CO2 emissions, as required by the new regulations, and how they intend to centralize production facilities.
* Motivation for Changes (Decrease in CO2 Emissions):
* The CEO's plan to reduceCO2 emissionsis a critical driver for change. This is captured clearly in D, which shows the effects ofDecreasing CO2 Emissions,Complying with Laws and Regulations, andCentralizing Production Facilities.
* TheMinistry of Social Welfare and Health's lawmandating CO2 reductions is accurately reflected inD, showing compliance as part of the motivation.
* Dalso depicts the motivation to centralize production facilities, which helps reduce CO2 emissions and aligns with the internal report suggesting that fewer distribution centers can meet ACS's needs effectively.
* Business and Environmental Factors:
* The scenario also points out thatpassenger numbers have decreaseddue to rising ticket prices, which reduces the demand for non-food materials from ACS. This factor is linked to the centralization effort, as reducing the need for distribution centers can reduce costs while still meeting business needs.
* Dreflects this by linkingFewer Distribution CentersandCentralized Production Facilitiesto both decreased emissions and operational efficiency.
* Compliance with Laws and Regulations:
* Dshows a clear connection between compliance withCO2 Emission Lawsand theAmount of CO2 Emissionsgenerated by ACS, which is an essential driver of change in the scenario.
* The need to ensure that emissions are within the legal limit is modeled effectively inD, reflecting the scenario's requirement to meet regulatory expectations by the end of the year.
* Centralization of Production:
* The scenario suggests thatcentralizing productionis one way to reduce emissions and achieve operational efficiency. This is depicted clearly inD, whereProduction Facilities Centralized leads to both fewer distribution centers and a significant decrease in CO2 emissions.
* Dlinks the motivation for fewer distribution centers to environmental sustainability (CO2 reduction) as well as operational improvements.
* Comprehensive ArchiMate® 3 Compliance:
* Daligns well with ArchiMate® 3 standards. It models theMotivation Elementssuch as goals (e.g., Decrease CO2 Emissions), assessments (e.g.,CO2 Emission Above Norm), and requirements (e.
g.,Comply with Laws and Regulations) accurately.
* The relationships between these motivation elements are correctly depicted using ArchiMate® connectors like influences and associations, ensuring that the transition from baseline to target is clear and fully compliant with ArchiMate® 3 best practices.
Conclusion:AnswerDprovides the best representation of the proposed transition, focusing on the motivations for centralization and reduction of CO2 emissions. It accurately reflects the scenario's requirements, including legal compliance, environmental goals, and operational changes, all while following ArchiMate® 3 modeling standards.

Question 4

Please read this scenario prior to answering the question
The ArchiSurance enterprise document management solution plays a crucial role in supporting a large number of document types and managing a high volume of document-based transactions each day. Given its business- critical nature, the document management solution is hosted redundantly across two geographically separate data center sites: Site A and Site B. Both sites are configured identically to ensure seamless operations.
Each site has a highly available data center network (DCN) that connects to the resilient ArchiSurance wide area network (WAN). Each claim management server is connected to its respective site's DCN, forming a converged network that interconnects servers and storage arrays. A dedicated physical storage array is allocated to the claim management application within each DCN. Additionally, each site houses four powerful physical servers exclusively dedicated to the claim management application.
Among these servers, one remains on standby at any given time, while the other three take on specific roles in hosting the document, workflow, and application engines.
The standby server is responsible for monitoring the behavior of the other servers, providing a logging and reporting service. The active servers regularly transmit data to facilitate this monitoring functionality. In the event of a server failure, the standby server steps in to perform resource reallocation, replacing the faulty server. However, this task requires manual intervention from a system administrator to reconfigure the logging and reporting service to adapt to the new environment.
Refer to the Scenario

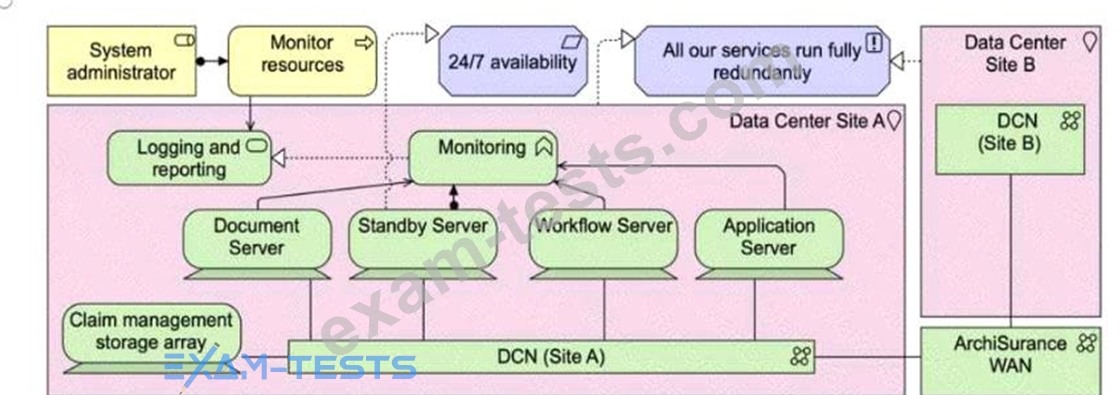

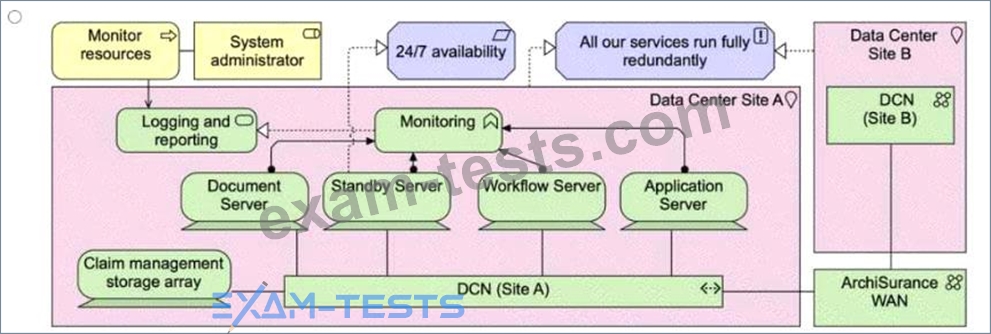

The IT manager has asked you to model the hardware and networks that support the document management solution. This includes capturing the infrastructure components such as data center sites, servers, storage, and networks. Additionally, you are expected to outline the necessary functionality and services required to enable failover within a server cluster. Given that both data centers share an identical configuration, it is sufficient for Site B to only show the associated networking.
Which of the following is the best answer?

A.A diagram of a server AI-generated content may be incorrect.
