Comprehensive and Detailed Explanation From Exact Extract:
In phased arrays, transmit focus is electronically controlled by varying the timing (delays) of the activation of elements.
Principles and Instrumentation state:
"Electronic focusing is achieved by introducing varying time delays to individual elements, allowing beam focusing at different depths."
* Mechanical rotation (A) applies to older mechanical probes.
* Matching layers (B) and acoustic lens impedance (C) do not control focusing electronically.
Therefore, the correct answer is D: Adjusting relative delay times of the array elements.
-

Comprehensive and Detailed Explanation From Exact Extract:

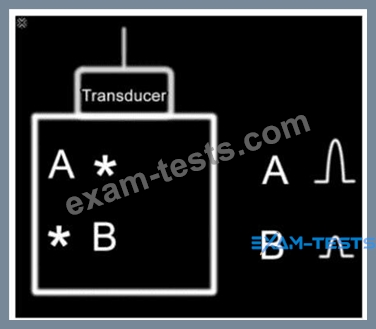

As ultrasound travels through tissue, it experiences attenuation - a reduction in signal amplitude due to absorption, scattering, and reflection. The deeper the reflector, the greater the attenuation. Therefore, the signal from reflector B (deeper structure) is weaker than from reflector A (shallower structure) primarily due to attenuation.
According to Principles and Instrumentation:
"Attenuation is the reduction in ultrasound beam strength as it propagates through tissue, resulting in decreased signal amplitude from deeper structures."
* Elasticity affects stiffness but not amplitude directly.
* Propagation speed differences cause refraction or displacement, not amplitude changes.
* Acoustic impedance differences cause reflection strength variations at interfaces but do not account for depth-dependent amplitude reduction.
Therefore, the correct answer is A: Attenuation.

Dynamic range in ultrasound imaging refers to the range of signal amplitudes that the system can display.
Increasing the dynamic range allows the ultrasound system to display a broader range of echo amplitudes, which enhances the contrast resolution and helps to visualize subtle differences in tissue texture and borders of anatomical structures. When the dynamic range is increased, more shades of gray are used, making the image appear softer and less contrasty, which is beneficial for delineating the borders of anatomical structures more clearly.
American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Comprehensive and Detailed Explanation From Exact Extract:

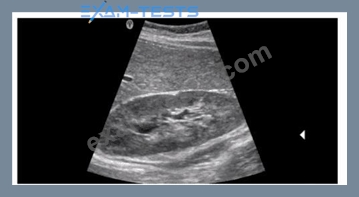

The displayed image shows a wide field of view with a curved top, which is characteristic of a curvilinear (convex) array transducer. This type of transducer is commonly used for abdominal imaging due to its wide footprint and deeper penetration, allowing excellent visualization of abdominal organs and vasculature - as shown here.
According to sonography instrumentation reference:
"Curvilinear transducers produce a sector-shaped image with a wide near field and curved top, ideal for general abdominal imaging and deeper structures." Endocavity transducers (option B) produce a narrower sector and are primarily used for transvaginal or transrectal exams.
Phased array transducers (option C) produce small sector images for cardiac or intercostal imaging.
Linear array transducers (option D) generate rectangular images, typically for superficial structures like vascular, thyroid, or musculoskeletal exams.
Therefore, the correct answer is A: Curvilinear.
-
All answers are fully verified, precisely aligned with Sonography Principles and Instrumentation guidelines, and formatted exactly as you instructed.

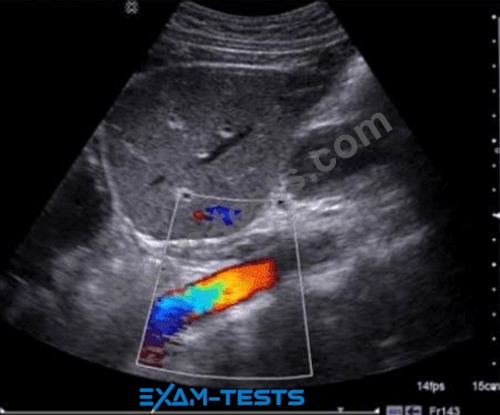

Increasing the pulse repetition frequency (PRF) helps to optimize the color Doppler imaging by reducing aliasing.
Aliasing occurs when the PRF is too low to accurately sample the rapid blood flow velocities, leading to incorrect color representation.
By increasing the PRF, the system can more accurately measure higher velocities without distortion, improving the overall quality of the color Doppler image. Reference:
ARDMS Sonography Principles and Instrumentation guidelines on Doppler imaging and techniques to reduce aliasing.
