Snapshot Management
The snapshot creates a binary image of the entire root (lv_current) disk partition. This includes Check Point products, configuration, and operating system.
Starting in R77.10, exporting an image from one machine and importing that image on another machine of the same type is supported.
The log partition is not included in the snapshot. Therefore, any locally stored FireWall logs will not be saved.

Explanation/Reference:
Explanation:
Configuring Interfaces
Configure the Security Gateway 80 interfaces in the Interfaces tab in the Security Gateway window.
To configure the interfaces:
1. From the Devices window, double-click the Security Gateway 80.
The Security Gateway window opens.
2. Select the Interfaces tab.
3. Select Use the following settings. The interface settings open.
4. Select the interface and click Edit.
The Edit window opens.
5. From the IP Assignment section, configure the IP address of the interface:
1. Select Static IP.
2. Enter the IP address and subnet mask for the interface.
6. In Security Zone, select Wireless, DMS, External, or Internal. Security zone is a type of zone, created by a bridge to easily create segments, while maintaining IP addresses and router configurations. Security zones let you choose if to enable or not the firewall between segments.
Reference: https://sc1.checkpoint.com/documents/R76/
CP_R76_SmartProvisioning_WebAdmin/16741.htm

Explanation/Reference:
Explanation: Deployments
Basic deployments:
Standalone deployment - Security Gateway and the Security Management server are installed on the

same machine.
Distributed deployment - Security Gateway and the Security Management server are installed on

different machines.

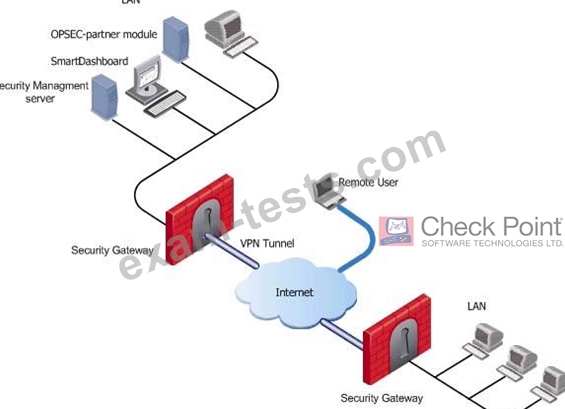

Assume an environment with gateways on different sites. Each Security Gateway connects to the Internet on one side, and to a LAN on the other.
You can create a Virtual Private Network (VPN) between the two Security Gateways, to secure all communication between them.
The Security Management server is installed in the LAN, and is protected by a Security Gateway. The Security Management server manages the Security Gateways and lets remote users connect securely to the corporate network. SmartDashboard can be installed on the Security Management server or another computer.
There can be other OPSEC-partner modules (for example, an Anti-Virus Server) to complete the network security with the Security Management server and its Security Gateways.
Reference: https://sc1.checkpoint.com/documents/R77/CP_R77_SecurityManagement_WebAdminGuide/ html_frameset.htm?topic=documents/R77/CP_R77_SecurityManagement_WebAdminGuide/118037

Explanation/Reference:
Explanation:
Backup configurations are stored in: /var/CPbackup/backups/
Reference:
https://sc1.checkpoint.com/documents/R77/CP_R77_Gaia_Installation_and_Upgrade_Guide/ html_frameset.htm?topic=documents/R77/CP_R77_Gaia_Installation_and_Upgrade_Guide/107104
