Question 126

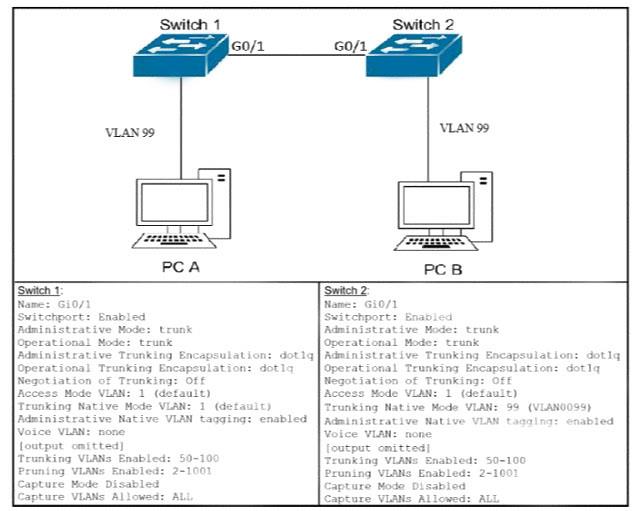

Refer to the Exhibit.
After the switch configuration the ping test fails between PC A and PC B Based on the output for switch 1.
which error must be corrected?
After the switch configuration the ping test fails between PC A and PC B Based on the output for switch 1.
which error must be corrected?
Question 127
What is a recommended approach to avoid co-channel congestion while installing access points that use the
2.4 GHz frequency?
2.4 GHz frequency?
Question 128

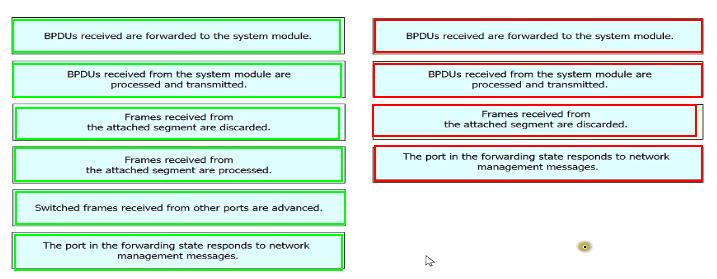

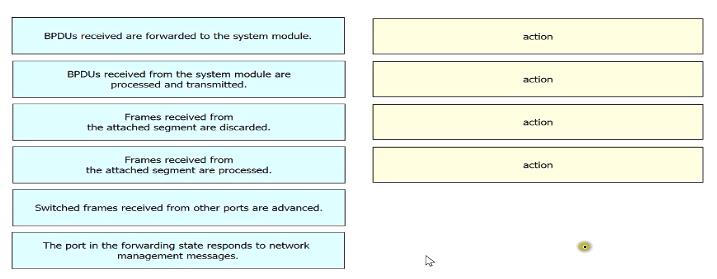

Drag and drop the Rapid PVST+ forwarding slate actions from the loft to the right. Not all actions are used.
Question 129
Refer to the exhibit.
An engineer has started to configure replacement switch SW1. To verify part of the configuration, the engineer issued the commands as shown and noticed that the entry for PC2 is missing. Which change must be applied to SW1 so that PC1 and PC2 communicate normally?
A)
B)
C)
D)
An engineer has started to configure replacement switch SW1. To verify part of the configuration, the engineer issued the commands as shown and noticed that the entry for PC2 is missing. Which change must be applied to SW1 so that PC1 and PC2 communicate normally?
A)
B)
C)
D)
Question 130

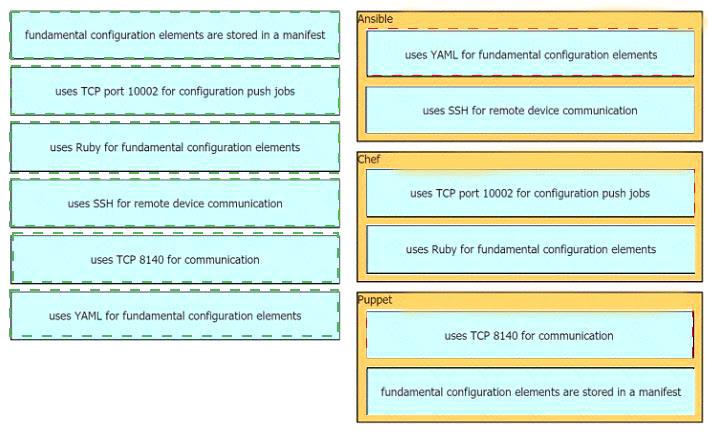

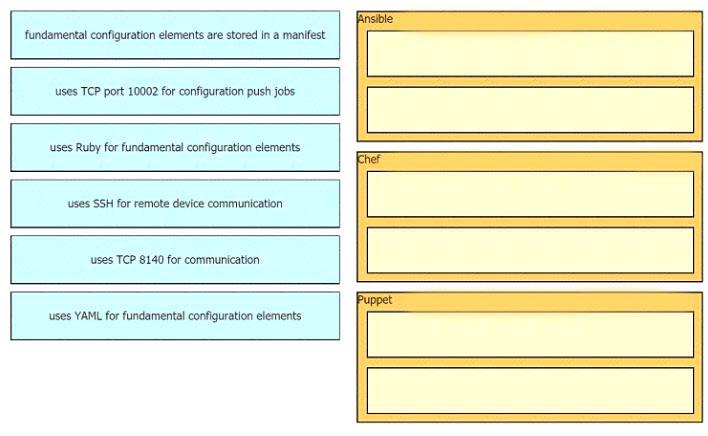

Drag drop the descriptions from the left onto the correct configuration-management technologies on the right.
