Free Access Cisco.200-301.v2022-06-18.q420 Practice Test (Page 28)

Question 131

Which action is taken by a switch port enabled for PoE power classification override?

A.As power usage on a PoE switch port is checked data flow to the connected device is temporarily paused

B.If a monitored port exceeds the maximum administrative value for power, the port is shutdown and err-disabled

C.When a powered device begins drawing power from a PoE switch port a syslog message is generated

D.If a switch determines that a device is using less than the minimum configured power it assumes the device has failed and disconnects

Question 132

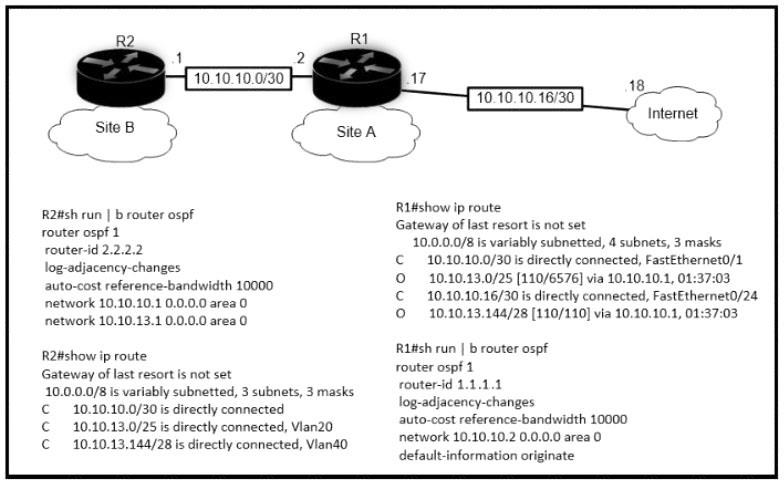

Refer to the exhibit.

The default-information originate command is configured under the R1 OSPF configuration After testing workstations on VLAN 20 at Site B cannot reach a DNS server on the Internet Which action corrects the configuration issue?

A.Add the always keyword to the default-information originate command on R1

B.Add the default-information originate command onR2

C.Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.18 command on R1

D.Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.2 command on R2

Question 133

Which command enables a router to become a DHCP client?

A.ip address dhcp

B.ip dhcp client

C.ip helper-address

D.ip dhcp pool

Question 134

Refer to the exhibit.

A network engineer must block access for all computers on VLAN 20 to the web server via HTTP All other computers must be able to access the web server Which configuration when applied to switch A accomplishes this task?

A.Option D

B.Option A

C.Option B

D.Option C

Question 135

The GRE tunnel between r3 and Branch 1 is down.
Which cause of the issue is true?

A.The EIGRP neighbor relationship was no formed due the IP address being misconfigured between the R2 and R3 interfaces

B.The tunnel source loopback0 interface is not advertised into EIGRP in R3

C.The tunnel source loopback0 interface is not advertised into EIGRP in Branch1.

D.The EIGRP neighbor relationship was not formed due to EIGRP packets blocked by inbound ACL on R3
