Free Access Cisco.200-301.v2022-06-18.q420 Practice Test (Page 77)

Question 376

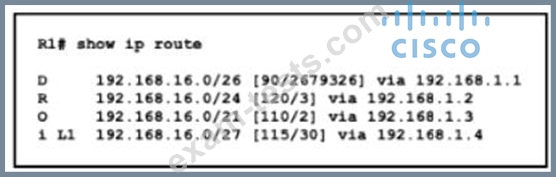

Refer to the exhibit.

Which route does R1 select for traffic that is destined to 192 168.16.2?

A.192.168 26.0/26

B.192.168.16.0/24

C.192.168.16.0/21

D.192.168.16.0/27

Question 377

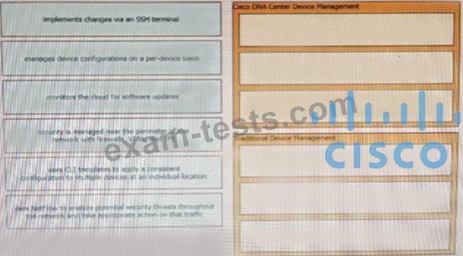

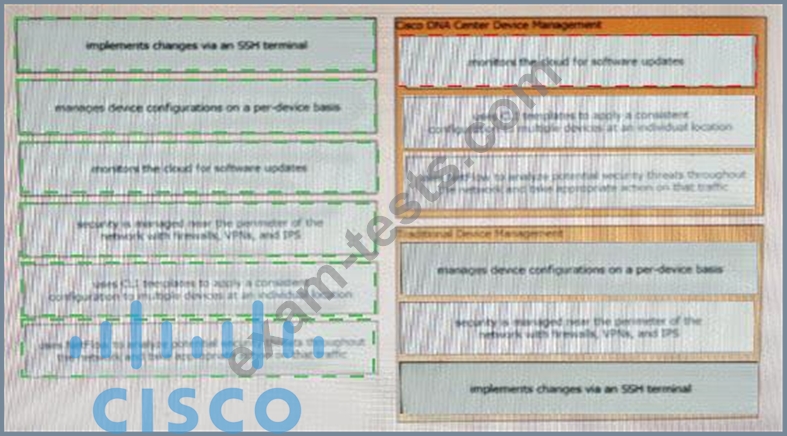

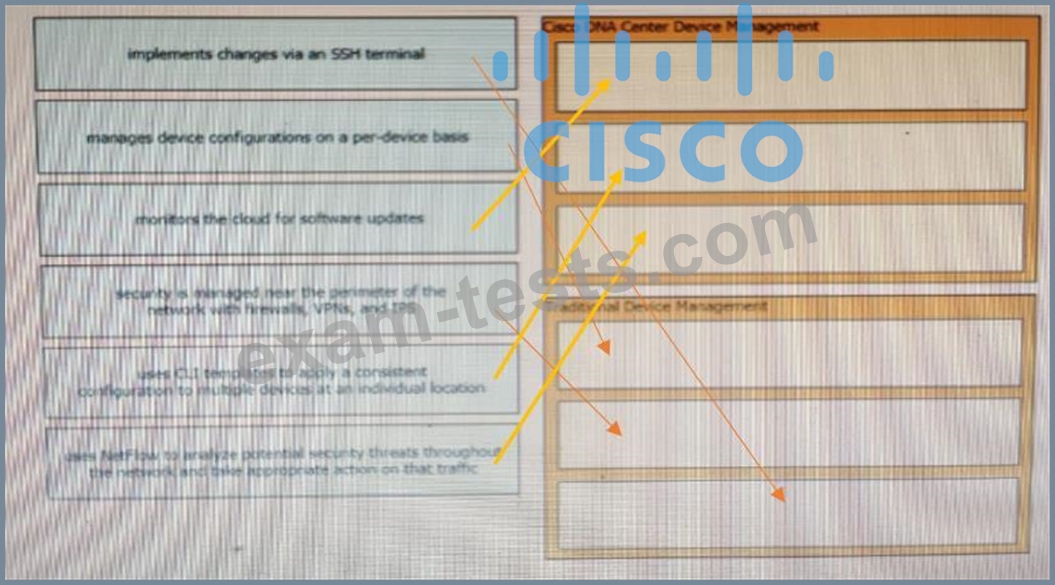

Drag the descriptions of device management from the left onto the types of device management on the right.

Question 378

What is one benefit of PVST+?

A.PVST+automatically selects the root bridge location, to provide optimized bandwidth usage.

B.PVST+supports Layer 3 load balancing without loops.

C.PVST+allow the root switch location to be optimized per vlan.

D.PVST+reduces the CPU cycles for all the switches in the network

Question 379

How will Link Aggregation be implemented on a Cisco Wireless LAN Controller?

A.The EtherChannel must be configured in "mode active".

B.When enabled, the WLC bandwidth drops to 500 Mbps.

C.To pass client traffic, two or more ports must be configured.

D.One functional physical port is needed to pass client traffic.

Question 380

Refer to the exhibit.

Only four switches are participating in the VLAN spanning-tree process.
Branch-1 priority 614440
Branch-2: priority 39082416
Branch-3: priority 0
Branch-4: root primary
Which switch becomes the permanent root bridge for VLAN 5?

A.Branch-1

B.Branch-2

C.Branch-3

D.Branch-4
