Free Access Cisco.200-301.v2022-06-18.q420 Practice Test (Page 78)

Question 381

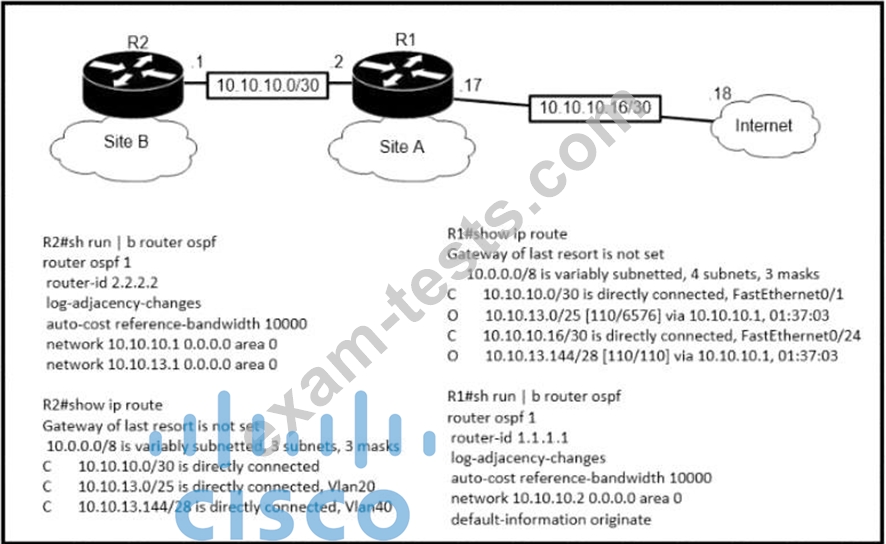

Refer to the exhibit.

The default-information originate command is configured under the R1 OSPF configuration After testing workstations on VLAN 20 at Site B cannot reach a DNS server on the Internet Which action corrects the configuration issue?

A.Add the default-information originate command onR2

B.Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.2 command on R2

C.Configure the ip route 0.0.0.0 0.0.0.0 10.10.10.18 command on R1

D.Add the always keyword to the default-information originate command on R1

Question 382

What are two reasons for an engineer to configure a floating state route? (Choose two)

A.to enable fallback static routing when the dynamic routing protocol fails

B.to automatically route traffic on a secondary path when the primary path goes down

C.to support load balancing via static routing

D.to control the return path of traffic that is sent from the router

E.to route traffic differently based on the source IP of the packet

Question 383

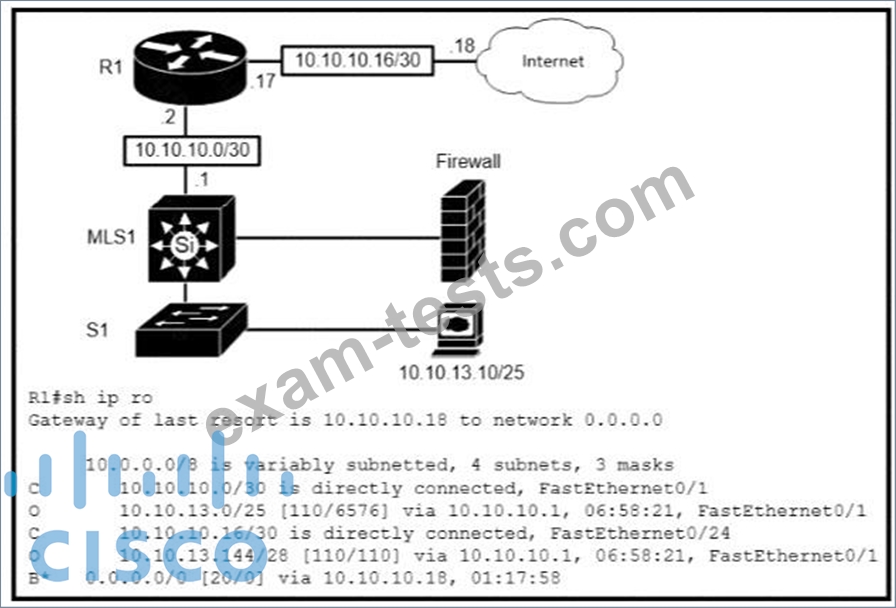

Refer to the exhibit.

Which type of route does R1 use to reach host 10.10.13.10/32?

A.default route

B.network route

C.floating static route

D.host route

Question 384

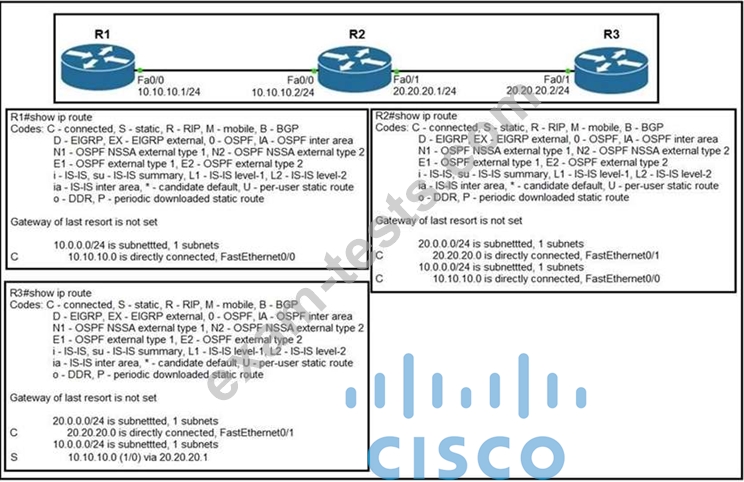

Refer to the exhibit. Router R1 Fa0/0 cannot ping router R3 Fa0/1. Which action must be taken in router R1 to help resolve the configuration issue?

A.configure a static route with 10.10.10.2 as the next hop to reach the 20.20.20.0/24 network

B.configure a static route with Fa0/1 as the egress interface to reach the 20.20.2.0/24 network

C.set the default gateway as 20.20.20.2

D.set the default network as 20.20.20.0/24

Question 385

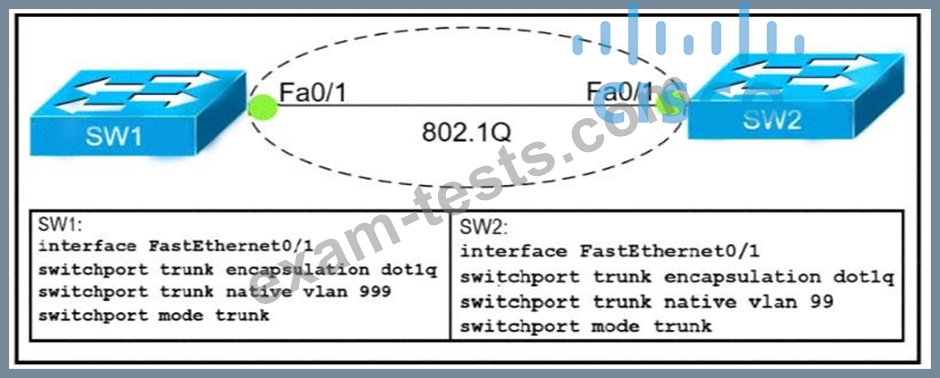

Refer to Exhibit.

Which action do the switches take on the trunk link?

A.The trunk does not form and the ports go into an err-disabled status.

B.The trunk forms but the mismatched native VLANs are merged into a single broadcast domain.

C.The trunk does not form, but VLAN 99 and VLAN 999 are allowed to traverse the link.

D.The trunk forms but VLAN 99 and VLAN 999 are in a shutdown state.
