Question 6
Refer to the exhibit.

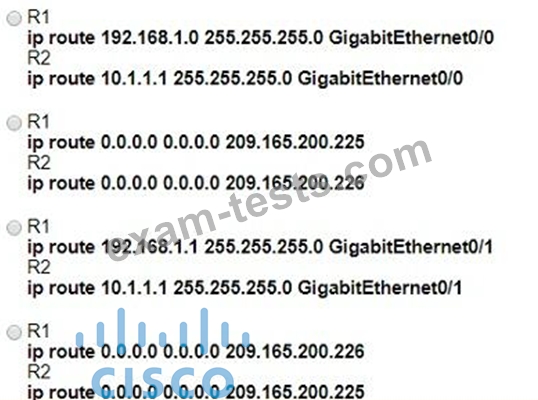

A network engineer is in the process of establishing IP connectivity between two sites. Routers R1 and R2 are partially configured with IP addressing. Both routers have the ability to access devices on their respective LANs. Which command set configures the IP connectivity between devices located on both LANs in each site?
A network engineer is in the process of establishing IP connectivity between two sites. Routers R1 and R2 are partially configured with IP addressing. Both routers have the ability to access devices on their respective LANs. Which command set configures the IP connectivity between devices located on both LANs in each site?
Question 7
Which two outcomes are predictable behaviors for HSRP? (Choose two)
Question 8

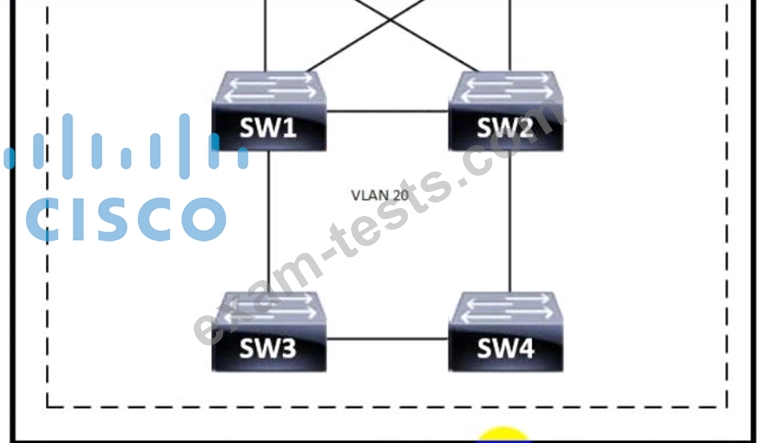

Refer to the exhibit.
Which switch becomes the root of a spanning tree for VLAN 20 if all li links are of equal speed?
Which switch becomes the root of a spanning tree for VLAN 20 if all li links are of equal speed?
Question 9
What is a network appliance that checks the state of a packet to determine whether the packet is legitimate?
Question 10
Refer to the exhibit.
An engineer is bringing up a new circuit to the MPLS provider on the Gi0/1 interface of Router1 The new circuit uses eBGP and teams the route to VLAN25 from the BGP path What s the expected behavior for the traffic flow for route 10.10.13.0/25?
An engineer is bringing up a new circuit to the MPLS provider on the Gi0/1 interface of Router1 The new circuit uses eBGP and teams the route to VLAN25 from the BGP path What s the expected behavior for the traffic flow for route 10.10.13.0/25?
