Question 231

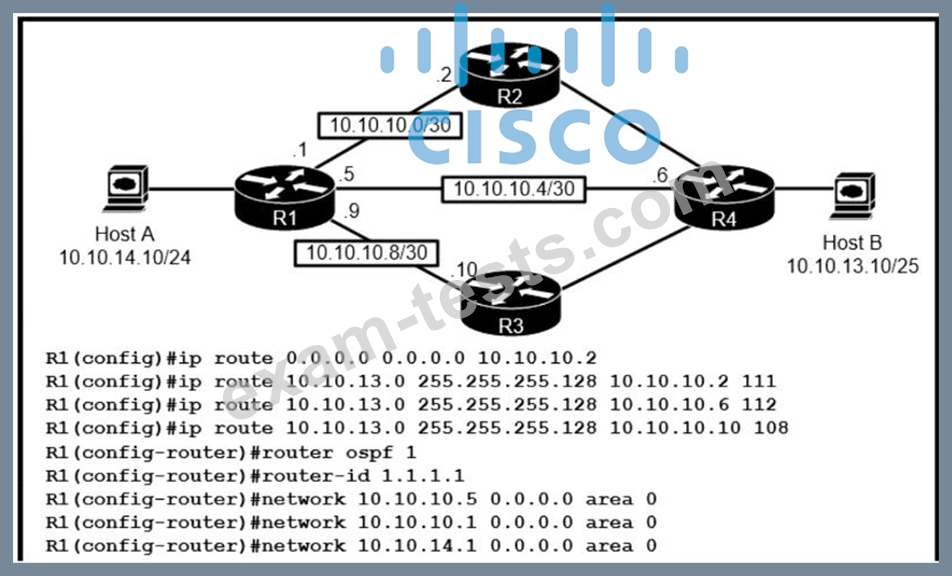

Refer to the exhibit.

R1 has just received a packet from host A that is destined to host B. Which route in the routing table is used by R1 to reac B?

A.10.10.13.0/25 [110/2] via 10.10.10.6

B.10.10.13.0/25 [108/0] via 10.10.10.10

C.10.10.13.0/25 [1/0] via 10.10.10.2

D.10.10.13.0/25 [110/2] via 10.10.10.2

Question 232

Which action must be taken to assign a global unicast IPv6 address on an interface that is derived from the MAC address of that interface?

A.disable the EUI-64 bit process

B.enable SLAAC on an interface

C.explicitly assign a link-local address

D.configure a stateful DHCPv6 server on the network

Question 233

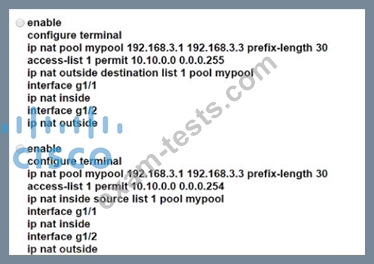

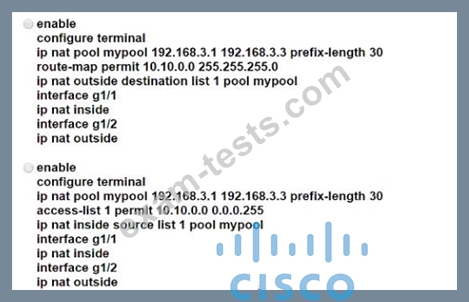

An engineer is configuring NAT to translate the source subnet of 10.10.0.0/24 to any of three addresses 192.168.30.1, 192.168.3.2, 192.168.3.3 Which configuration should be used?

A.Option D

B.Option A

C.Option B

D.Option C

Question 234

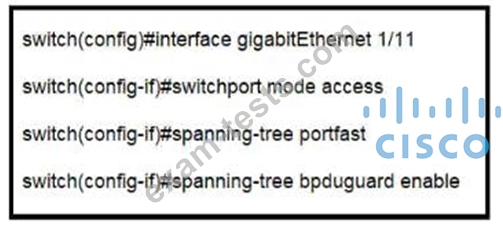

Refer to the exhibit.

What is the result if Gig1/11 receives an STP BPDU?

A.The port immediately transitions to STP forwarding.

B.The port goes into error-disable state

C.The port transitions to the root port

D.The port transitions to STP blocking

Question 235

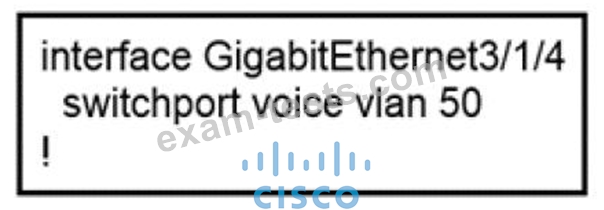

Refer to the exhibit.

An administrator is tasked with configuring a voice VLAN. What is the expected outcome when a Cisco phone is connected to the GigabitEfriemet3/1/4 port on a switch?

A.The phone and a workstation that is connected to the phone do not have VLAN connectivity

B.The phone sends and receives data in VLAN 50, but a workstation connected to the phone has no VLAN connectivity

C.The phone and a workstation that is connected to the phone send and receive data in VLAN 50.

D.The phone sends and receives data in VLAN 50, but a workstation connected to the phone sends and receives data in VLAN 1
