Free Access Cisco.200-301.v2024-05-18.q342 Practice Test (Page 6)

Question 21

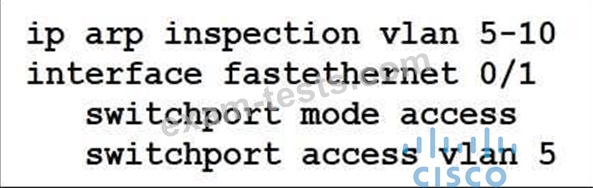

Refer to the exhibit. What is the effect of this configuration?

A.The switch discards all ingress ARP traffic with invalid MAC-to-IP address bindings.

B.All ARP packets are dropped by the switch.

C.Egress traffic is passed only if the destination is a DHCP server.

D.All ingress and egress traffic is dropped because the interface is untrusted.

Question 22

What are two reasons for an engineer to configure a floating static route? (Choose two.)

A.to support load balancing via static routing

B.to automatically route traffic on a secondary path when the primary path goes down

C.to route traffic differently based on the source IP of the packet

D.to control the return path of traffic that is sent from the router

E.to enable fallback static routing when the dynamic routing protocol fails

Question 23

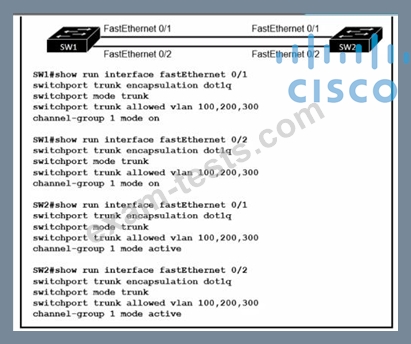

Refer to the exhibit.

An engineer built a new L2 LACP EtherChannel between SW1 and SW2 and executed these show commands to verify the work. Which additional task allows the two switches to establish an LACP port channel?

A.Change the channel-group mode on SW1 to desirable.

B.Change the channel-group mode on SW1 to active or passive.

C.Change the channel-group mode on SW2 to auto

D.Configure the interface port-channel 1 command on both switches.

Question 24

Refer to the exhibit.

Router R1 Fa0/0 cannot ping router R3 Fa0/1.
Which action must be taken in router R1 to help resolve the configuration issue?

A.set the default network as 20.20.20.0/24

B.configure a static route with Fa0/1 as the egress interface to reach the 20.20.20.0/24 network

C.configure a static route with 10.10.10.2 as the next hop to reach the 20.20.20.0/24 network

D.set the default gateway as 20.20.20.2

Question 25

Refer to the exhibit. Shortly after SiteA was connected to SiteB over a new single-mode fiber path, users at SiteA report intermittent connectivity issues with applications hosted at SiteB. What is the cause of the intermittent connectivity issue?

A.High usage is causing high latency

B.An incorrect SFP media type was used at SiteA

C.Interface errors are incrementing

D.The sites were connected with the wrong cable type
