Question 321
Refer to the exhibit.
Which switch in this configuration will be elected as the root bridge?
Which switch in this configuration will be elected as the root bridge?
Question 322
Refer to the exhibit.
An engineer configured the New York router with state routes that point to the Atlanta and Washington sites.
When command must be configured on the Atlanta and Washington routers so that both sites are able to reach the loopback2 interface on the New York router?
An engineer configured the New York router with state routes that point to the Atlanta and Washington sites.
When command must be configured on the Atlanta and Washington routers so that both sites are able to reach the loopback2 interface on the New York router?
Question 323
Drag and drop the AAA functions from the left onto the correct AAA services on the right
Question 324

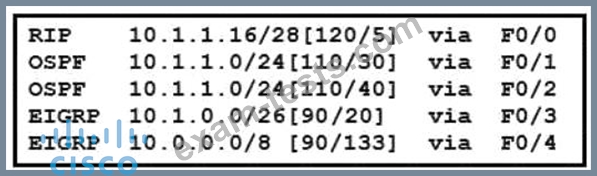

Refer to the exhibit.
Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?
Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?
Question 325
If two OSPF neighbors have formed complete adjacency and are exchanging link-state advertisements, which state have they reached?
