Free Access Cisco.200-301.v2026-09-23.q650 Practice Test (Page 82)

Question 401

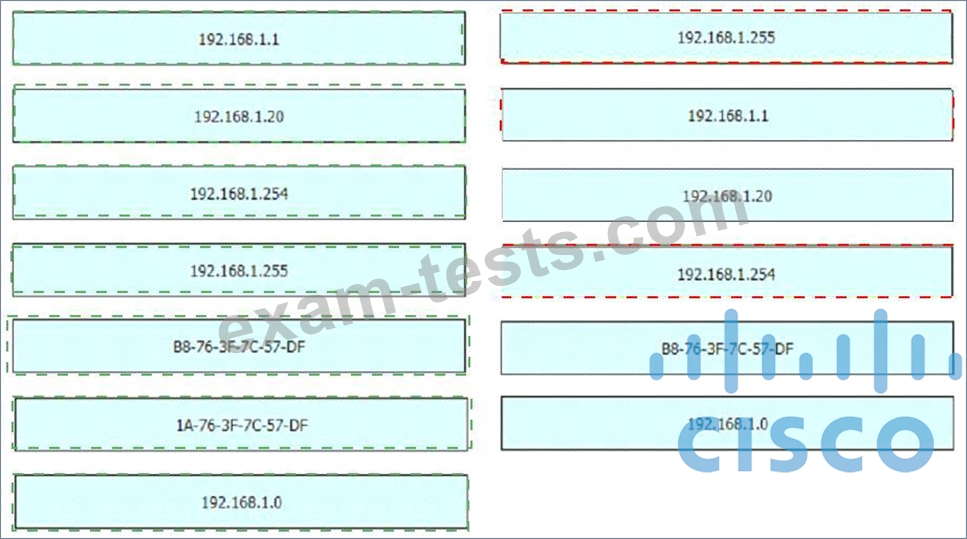

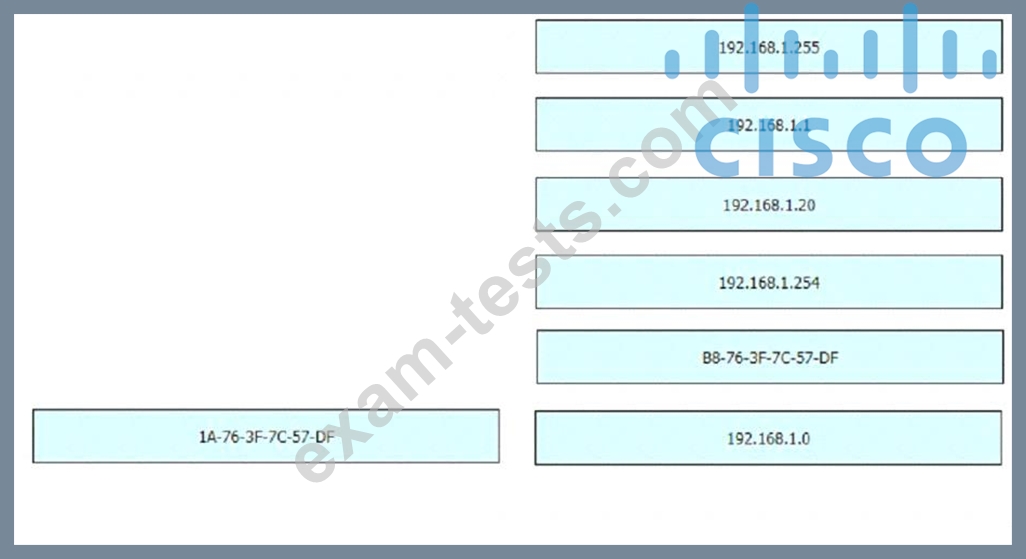

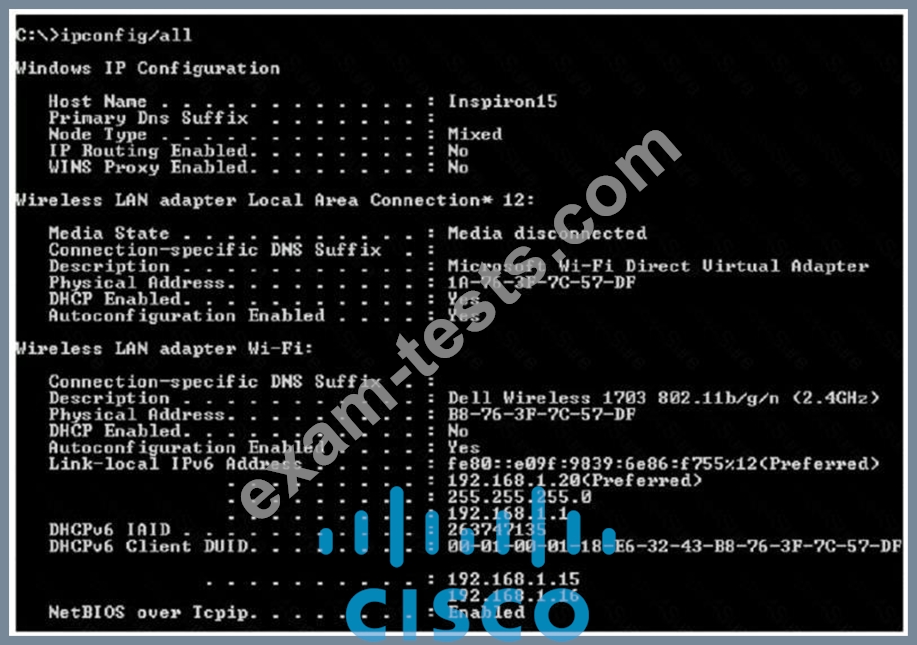

Refer to the exhibit.

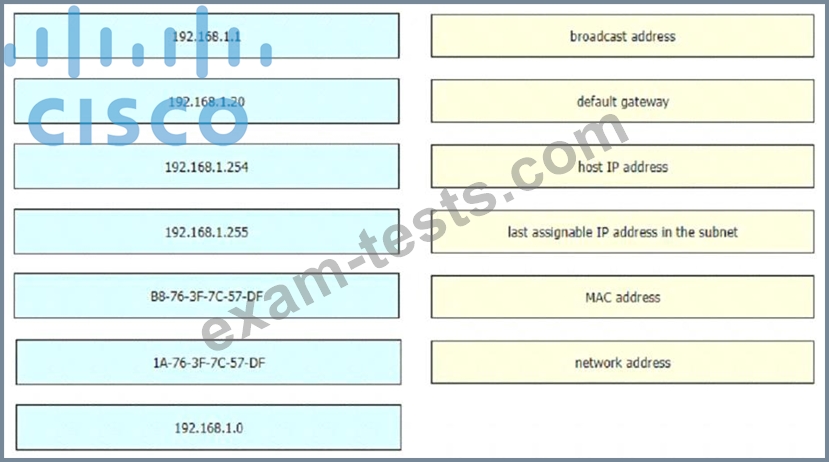

An engineer is required to verify that the network parameters are valid for the users wireless LAN connectivity on a /24 subnet. Drag and drop the values from the left onto the network parameters on the right. Not all values are used.

Question 402

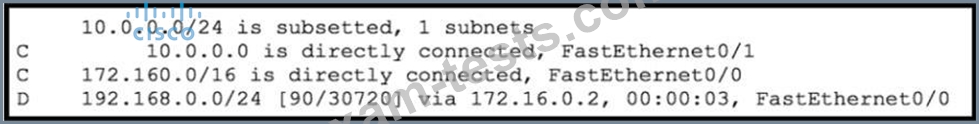

Refer to the exhibit.

Which route type does the routing protocol Code D represent in the output?

A.internal BGP route

B.route learned through EIGRP

C./24 route of a locally configured IP

D.statically assigned route

Question 403

Which two statements distinguish authentication from accounting? (Choose two.)

A.Only authentication records the duration of a user's connection.

B.Only authentication provides supporting information for billing users.

C.Only authentication supports user-activity audits.

D.Only authentication challenges users for their credentials and returns a response.

E.Only authentication validates "who you are."

Question 404

A router received three destination prefixes: 10.0.0.0/8, 10.0.0.0/16, and 10.0.0.0/24. When the show ip route command is executed, which output does it return?

A.Gateway of last resort is 172.16.1.1 to network 0.0.0.0
o E2 10.0.0.0/16[110/5] via 192.168.2.1, 0:01:00, Ethernet1
o E2 10.0.0.0/24[110/5] via 192.168.3.1, 0:01:00, Ethernet2

B.Gateway of last resort is 172.16.1.1 to network 0.0.0.0
o E2 10.0.0.0/8 [110/5] via 192.168.1.1, 0:01:00, Ethernet0

C.Gateway of last resort is 172.16.1.1 to network 0.0.0.0
o E2 10.0.0.0/24[110/5] via 192.168.3.1, 0:01:00, Ethernet2

D.Gateway of last resort is 172.16.1.1 to network 0.0.0.0
o E2 10.0.0.0/8 [110/5] via 192.168.1.1, 0:01:00, Ethernet0
o E2 10.0.0.0/16[110/5] via 192.168.2.1, 0:01:00, Ethernet1
o E2 10.0.0.0/24[110/5] via 192.168.3.1, 0:01:00, Ethernet2

Question 405

What is the default behavior of a Layer 2 switch when a frame with an unknown destination MAC address is received?

A.The Layer 2 switch drops the received frame

B.The Layer 2 switch forwards the packet and adds the destination MAC address to its MAC address table

C.The Layer 2 switch floods packets to all ports except the receiving port in the given VLAN.

D.The Layer 2 switch sends a copy of a packet to CPU for destination MAC address learning.
