Question 406

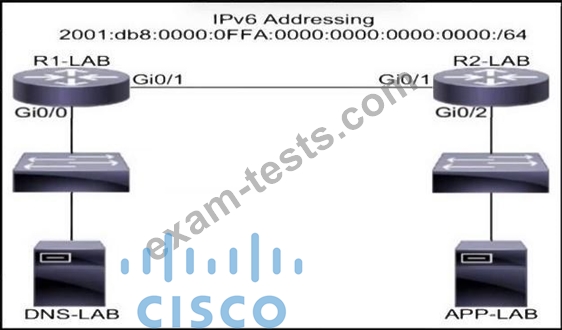

Refer to the exhibit. The routers R1-LAB and R2-LAB are configured with link-local addresses.
What command must be applied to interface Gi0/0 on R1-LAB for an automated address self- assignment on the IPv6 network?

A.ipv6 address 2001 :db8:0:0FFA::1/64

B.ipv6 address 2001 :db8:0:0FFA::/64 eui-64

C.ipv6 address 2001:db8:1:0FFA:0::/64

D.ipv6 address 2001 :db8:0:0FFA::/64 anycast

Question 407

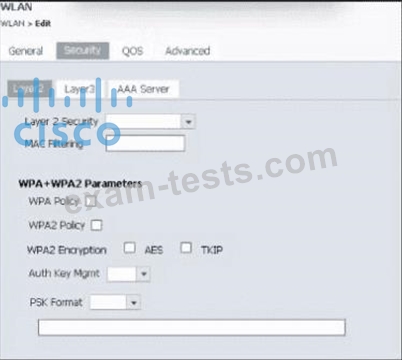

Refer to the exhibit. An engineer is using the Cisco WLC GUI to configure a WLAN for WPA2 encryption with AES and preshared key Cisc0123456. After the engineer selects the WPA + WPA2 option from the Layer 2 Security drop-down, which two tasks must they perform to complete the process? (Choose two)

A.Select PSK from the Auth Key Mgmt drop-down list, set the PSK Format to ASCII, and enter the key

B.Select the WPA2 Policy and AES check boxes

C.Select the WPA2 Policy, AES, and TKIP check boxes

D.Select ASCII from the PSK Format drop-down list, enter the key, and leave the Auth Key Mgmt setting blank

E.Select CCKM for the Auth Key Mgmt drop-down list, set the PSK Format to Hex, and enter the key

Question 408

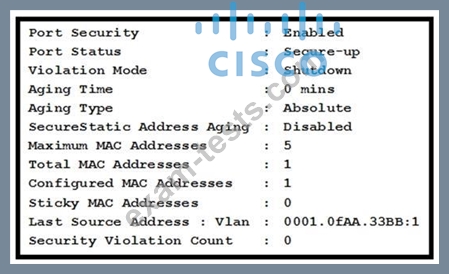

Refer to the exhibit. Which statement about the interface that generated the output is true?

A.A syslog message is generated when a violation occurs.

B.One secure MAC address is dynamically learned on the interface.

C.One secure MAC address is manually configured on the interface.

D.Five secure MAC addresses are dynamically learned on the interface.

Question 409

Refer to the exhibit.

Which switch becomes the root bridge?
A)

A.Option C

B.Option D

C.Option B

D.Option A

Question 410

An engineering team asks an implementer to configure syslog for warning conditions and error conditions. Which command does the implementer configure to achieve the desired result?

A.logging trap 4

B.logging trap 2

C.logging trap 3

D.logging trap 5
