Explanation:

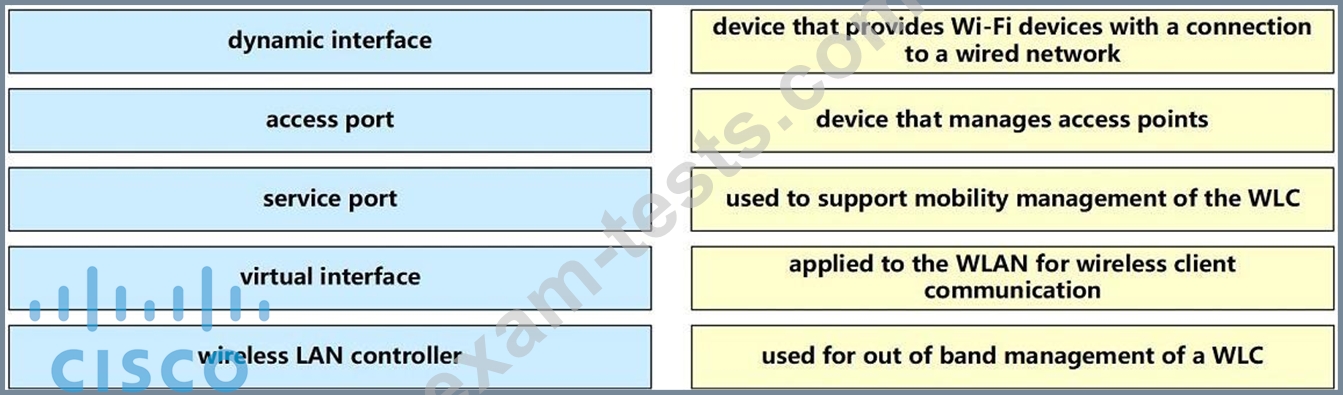

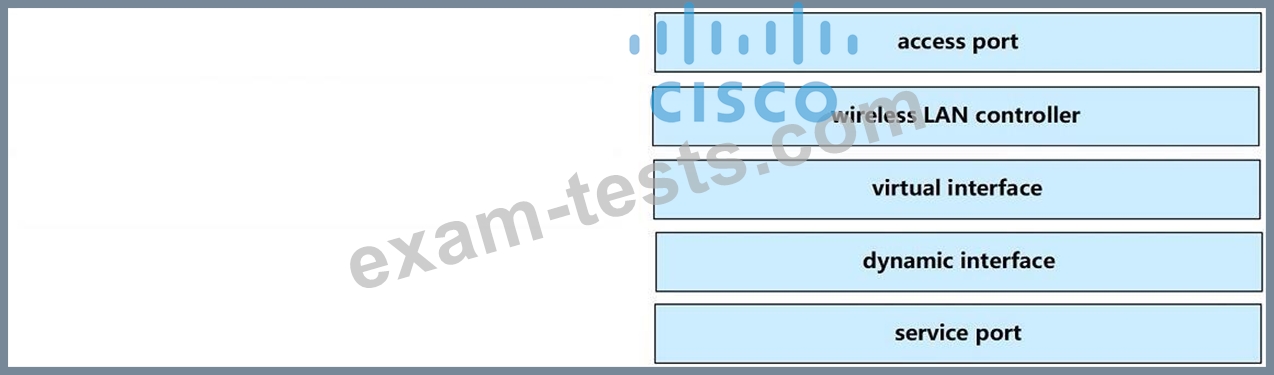

The service port can be used management purposes, primarily for out-of-band management. However, AP management traffic is not possible across the service port. In most cases, the service port is used as a "last resort" means of accessing the controller GUI for management purposes. For example, in the case where the system distribution ports on the controller are down or their communication to the wired network is otherwise degraded.
A dynamic interface with the Dynamic AP Management option enabled is used as the tunnel source for packets from the controller to the access point and as the destination for CAPWAP packets from the access point to the controller.
The virtual interface is used to support mobility management, Dynamic Host Configuration Protocol (DHCP) relay, and embedded Layer 3 security such as guest web authentication. It also maintains the DNS gateway host name used by Layer 3 security and mobility managers to verify the source of certificates when Layer 3 web authorization is enabled.
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-5/config-guide/b_cg85/ports_and_interfaces.html

Explanation

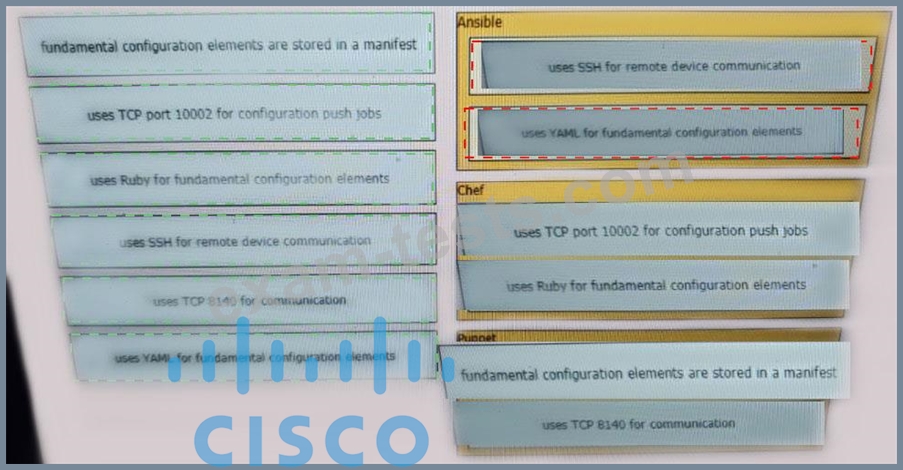

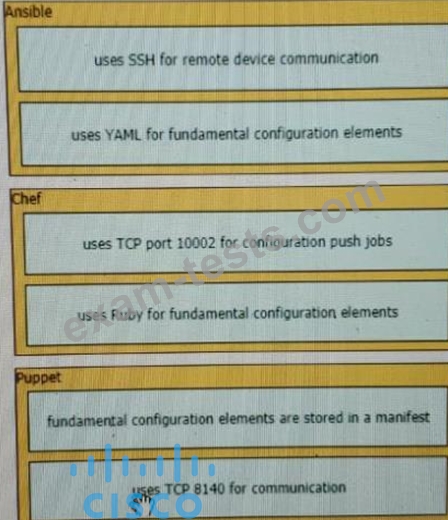

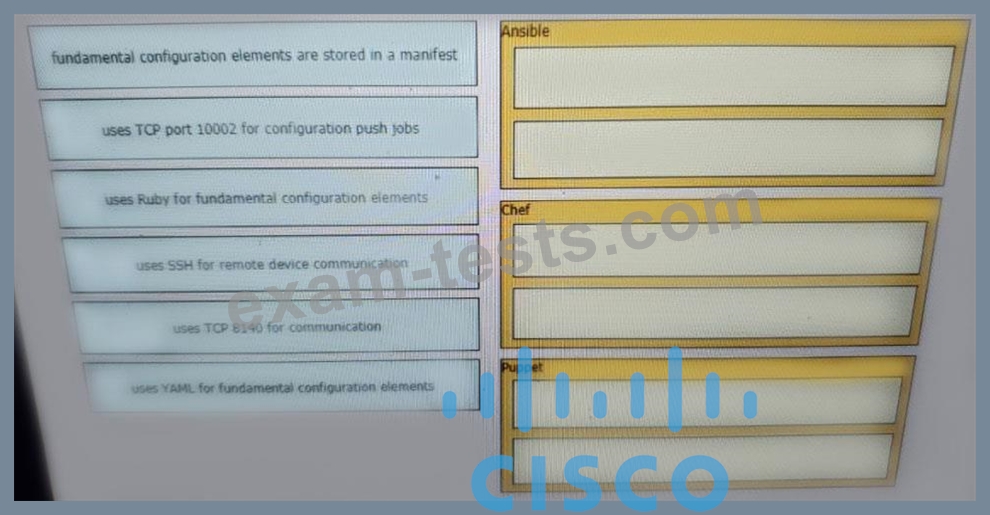

Ansible:- uses SSH for remote device communication- uses YAML for fundamental configuration elements Chef:- uses TCP port 10002 for configuration push jobs- uses Ruby for fundamental configuration elements Puppet:- fundamental configuration elements are stored in a manifest- uses TCP 8140 for communication The focus of Ansible is to be streamlined and fast, and to require no node agent installation.Thus, Ansible performs all functions over SSH. Ansible is built on Python, in contrast to the Ruby foundation of Puppet and Chef.TCP port 10002 is the command port. It may be configured in the Chef Push Jobs configuration file .This port allows Chef Push Jobs clients to communicate with the Chef Push Jobs server.Puppet is an open-source configuration management solution, which is built with Ruby and offers custom Domain Specific Language (DSL) and Embedded Ruby (ERB) templates to create custom Puppet language files, offering a declarative-paradigm programming approach.A Puppet piece of code is called a manifest, and is a file with .pp extension.
