Question 431

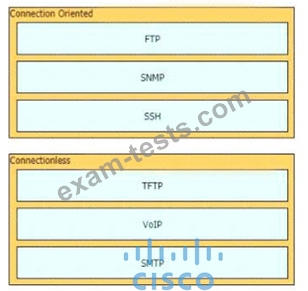

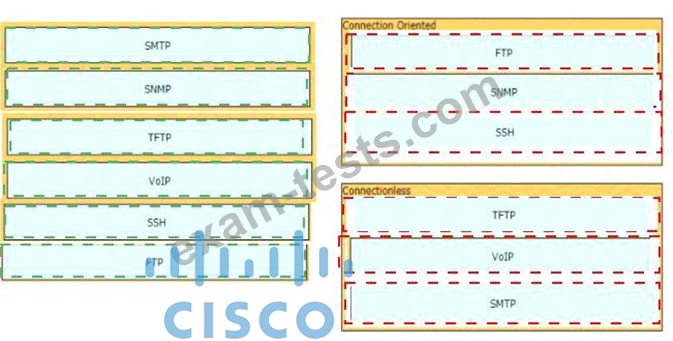

Drag and drop the network protocols from the left onto the correct transport services on the right.

Question 432

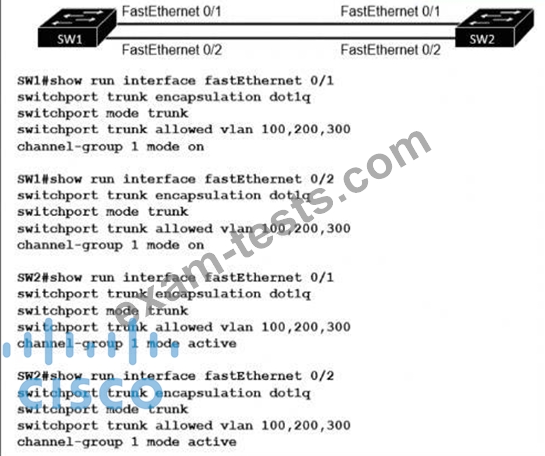

Refer to the exhibit.

An engineer built a new L2 LACP EtherChannel between SW1 and SW2 and executed these show commands to verify the work. Which additional task allows the two switches to establish an LACP port channel?

A.Change the channel-group mode on SW1 to active or passive.

B.Configure the interface port-channel 1 command on both switches.

C.Change the channel-group mode on SW2 to auto

D.Change the channel-group mode on SW1 to desirable.

Question 433

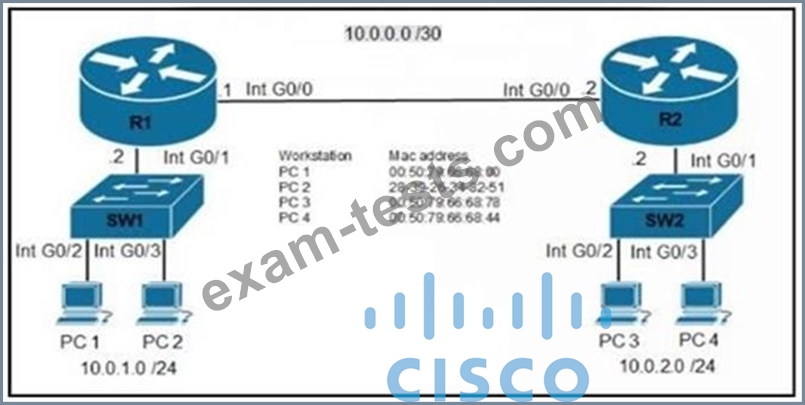

Refer to the exhibit. An engineer must configure the interface that connects to PC1 and secure it in a way that only PC1 is allowed to use the port. No VLAN tagging can be used except for a voice VLAN. Which command sequence must be entered to configure the switch?

A.SW1(config-if)#switchport mode dynamic desirable
SW1(config-if)#switchport port-security mac-address 0050.7966.6800
SW1(config-if)#switchport port-security mac-address sticky

B.SW1(config-if)#switchport mode nonegotiate
SW1(config-if)#switchport port-security
SW1(config-if)#switchport port-security maximum 1

C.SW1(config-if)#switchport mode dynamic auto
SW1(config-if)#switchport port-security
SW1(config-if)#switchport port-security violation restrict

D.SW1(config-if)#switchport mode access
SW1(config-if)#switchport port-security
SW1(config-if)#switchport port-security mac-address 0050.7966.6800

Question 434

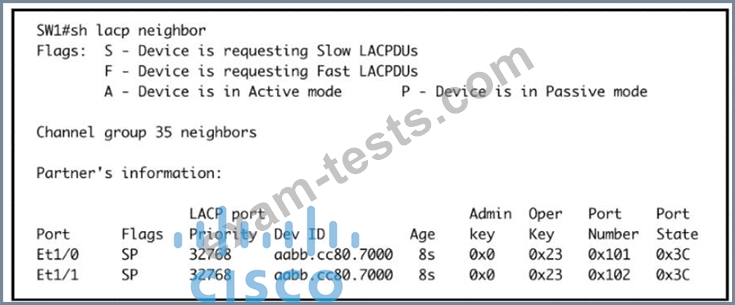

Refer to the exhibit.

Based on the LACP neighbor status, in which mode is the SW1 port channel configured?

A.passive

B.mode on

C.auto

D.active

Question 435

Refer to the exhibit.

R5 is the current DR on the network, and R4 is the BDR. Their interfaces are flapping, so a network engineer wants the OSPF network to elect a different DR and BDR. Which set of configurations must the engineer implement?
A)
