Free Access Cisco.300-410.v2022-01-27.q256 Practice Test (Page 16)

Question 71

Which IGPs are supported by the MPLS LDP autoconfiguration feature?

A.RIPv2 and OSPF

B.OSPF and EIGRP

C.OSPF and ISIS

D.ISIS and RIPv2

Question 72

Refer to the exhibit.

An IP SLA was configured on router R1 that allows the default route to be modified in the event that Fa0/0 loses reachability with the router R3 Fa0/0 interface. The route has changed to flow through router R2. Which debug command is used to troubleshoot this issue?

A.debug ip flow

B.debug ip sla error

C.debug ip routing

D.debug ip packet

Question 73

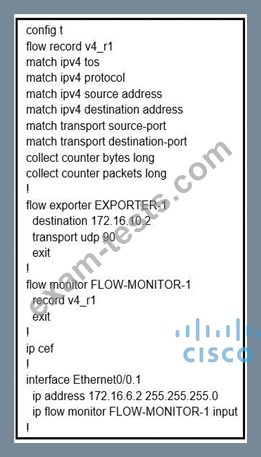

Refer to the exhibit.

Why is the remote NetFlow server failing to receive the NetFlow data?

A.The flow exporter is configured but is not used.

B.The flow monitor is applied in the wrong direction.

C.The flow monitor is applied to the wrong interface.

D.The destination of the flow exporter is not reachable.

Question 74

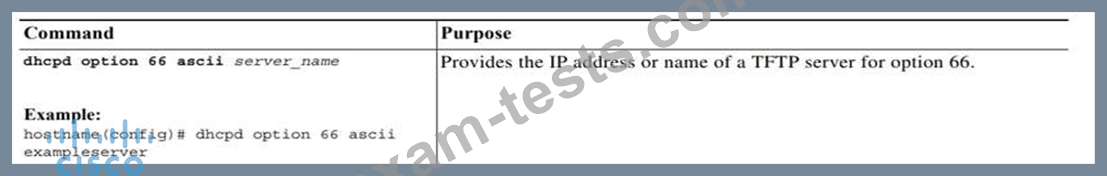

An engineer configured a DHCP server for Cisco IP phones to download its configuration from a TFTP server, but the IP phones failed to toad the configuration What must be configured to resolve the issue?

A.BOOTP port 67

B.DHCP option 66

C.BOOTP port 68

D.DHCP option 69

Question 75

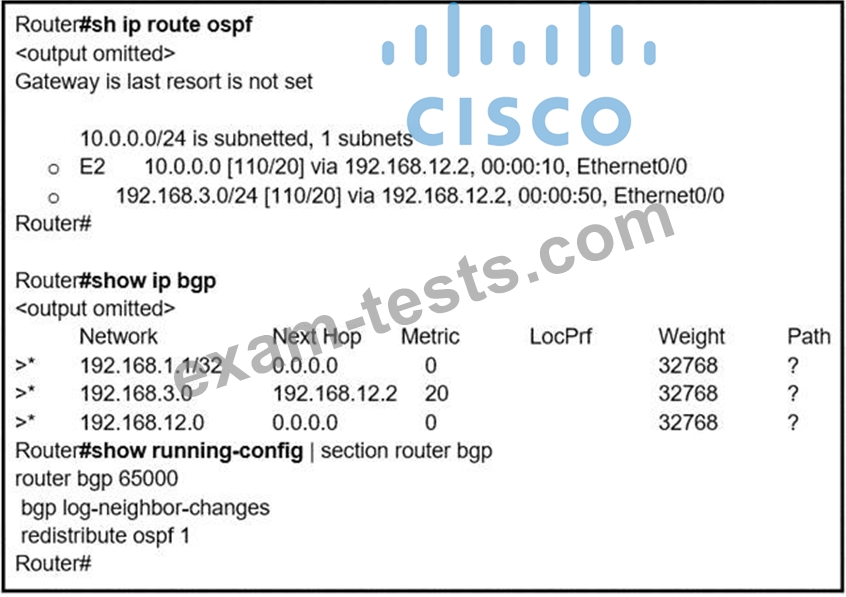

Refer to the exhibit.

An engineer is trying to redistribute OSPF to BGP, but not all of the routes are redistributed. What is the reason for this issue?

A.By default, only internal routes and external type 1 routes are redistributed into BGP

B.Only classful networks are redistributed from OSPF to BGP

C.BGP convergence is slow, so the route will eventually be present in the BGP table

D.By default, only internal OSPF routes are redistributed into BGP
