Free Access Cisco.300-410.v2022-01-27.q256 Practice Test (Page 18)

Question 81

Which statement about route distinguishers in an MPLS network is true?

A.Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

B.Route distinguishers are used for label bindings.

C.Route distinguishers make a unique VPNv4 address across the MPLS network.

D.Route distinguishers define which prefixes are imported and exported on the edge router.

Question 82

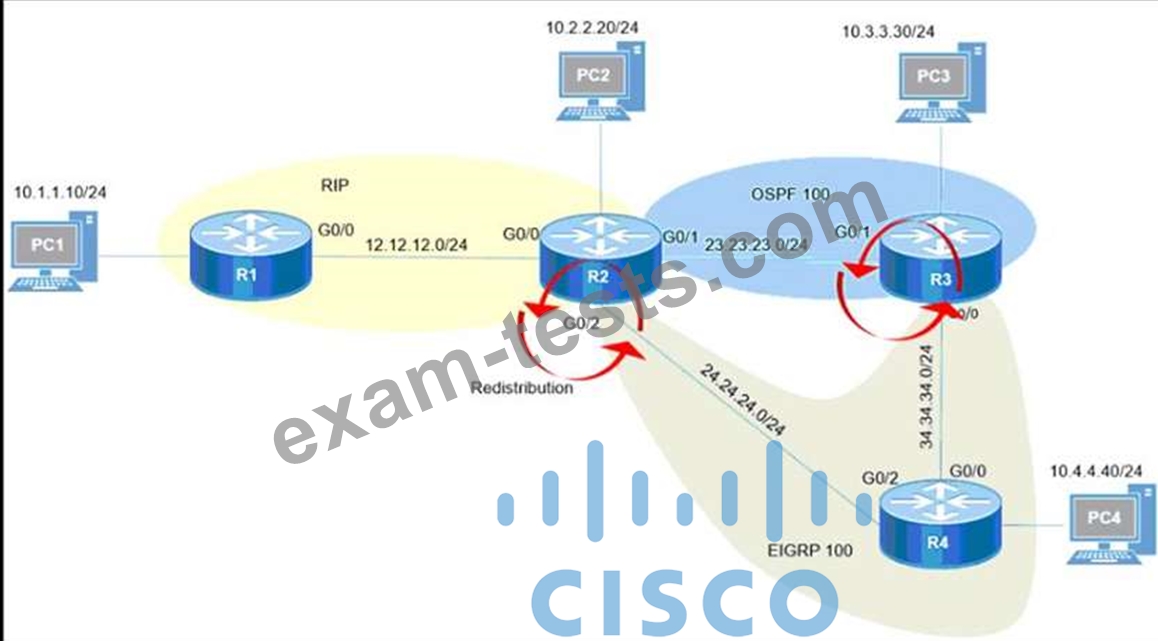

Refer to the exhibit.

Redistribution is enabled between the routing protocols, and nowPC2 PC3, and PC4 cannot reach PC1. What are the two solutions to fix the problem? (Choose two.)

A.Filter RIP routes back into RIP when redistributing into RIP in R2

B.Filter OSPF routes into RIP FROM EIGRP when redistributing into RIP in R2.

C.Filter all routes except RIP routes when redistributing into EIGRP in R2.

D.Filter RIP AND OSPF routes back into OSPF from EIGRP when redistributing into OSPF in R2

E.Filter all routes except EIGRP routes when redistributing into OSPF in R3.

Question 83

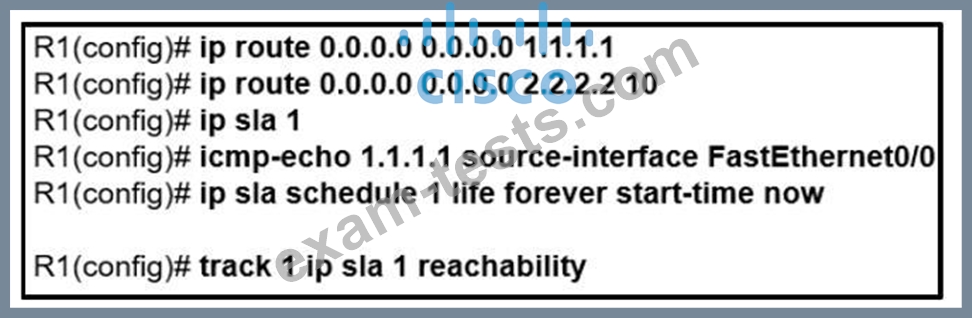

Refer to the exhibit.

An IP SLA is configured to use the backup default route when the primary is down, but it is not working as desired. Which command fixes the issue?

A.R1(config)# ip route 0.0.0.0.0.0.0.0.2.2.2.2 10 track 1

B.R1(config)# ip route 0.0.0.0.0.0.0.0.1.1.1.1 track 1

C.R1(config)#ip sla track 1

D.R1(config)# ip route 0.0.0.0.0.0.0.0.2.2.2.2

Question 84

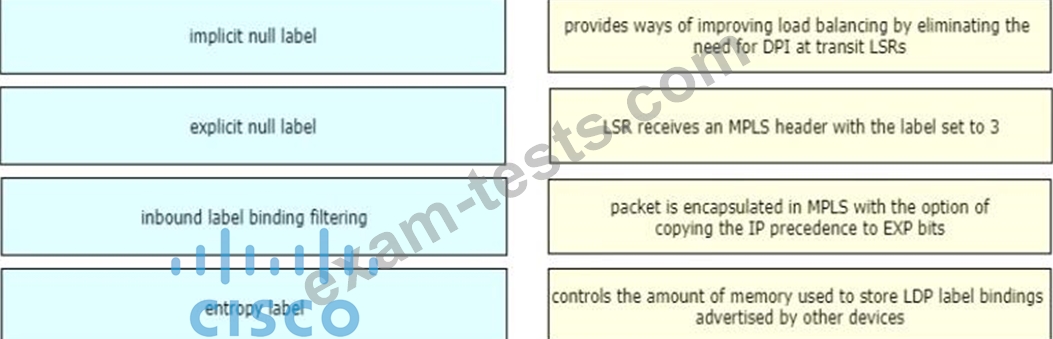

Drag and drop the LDP features from the left onto the descriptions on the right

Question 85

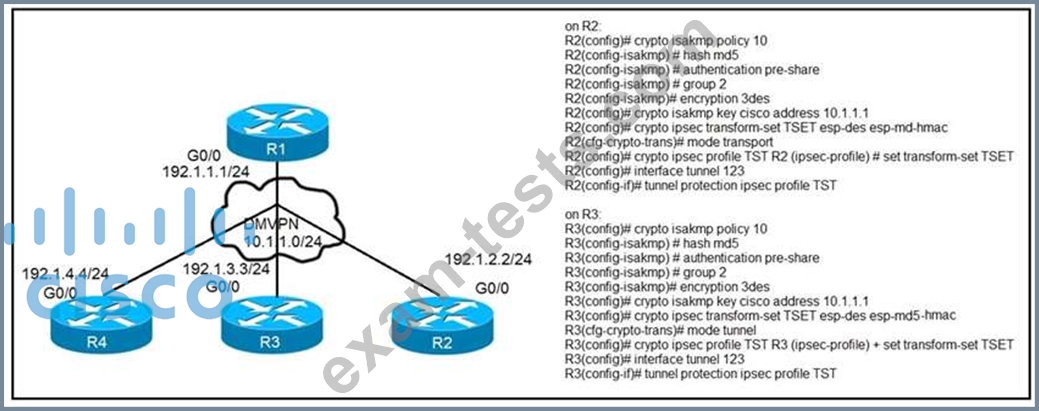

Refer to the exhibit.

After applying IPsec, the engineer observed that the DMVPN tunnel went down, and both spoke-to-spoke and hub were not establishing. Which two actions resolve the issue? (Choose two.)

A.Configure the crypto isakmp key cisco address 0.0.0.0 on R2 and R3.

B.Configure the crypto isakmp key cisco address 192.1.1.1 on R2 and R3

C.Change the mode from mode transport to mode tunnel on R2.

D.Change the mode from mode tunnel to mode transport on R3

E.Remove the crypto isakmp key cisco address 10.1.1.1 on R2 and R3
