Question 1

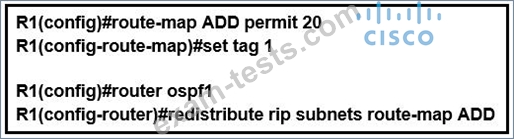

Refer to the exhibit.

Which statement about R1 is true?

A.R1 adds one to the metric for RIP learned routes before redistributing to OSPF.

B.RIP learned routes are distributed to OSPF with a tag value of one.

C.RIP routes are redistributed to OSPF without any changes.

D.OSPF redistributes RIP routes only if they have a tag of one.

Question 2

While working with software images, an engineer observes that Cisco DNA Center cannot upload its software image directly from the device. Why is the image not uploading?

A.The device must be resynced to Cisco DNA Center.

B.The software image for the device is in install mode.

C.The device has lost connectivity to Cisco DNA Center.

D.The software image for the device is in bundle mode

Question 3

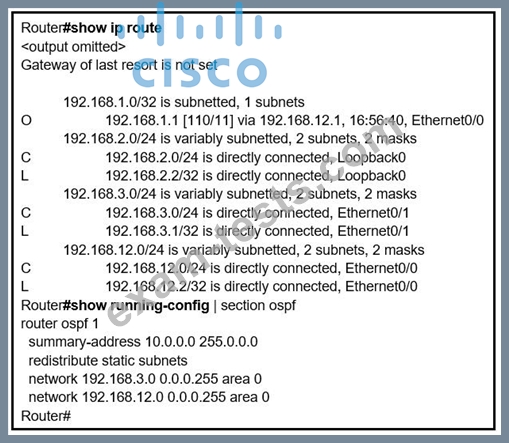

Refer to the exhibit.

An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table. Why is the summary route missing?

A.There is no route for a subnet inside 10.0.0.0/8, so the summary route is not generated.

B.The summary-address command is used only for summarizing prefixes between areas.

C.The summary route is visible only in the OSPF database, not in the routing table.

D.The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.

Question 4

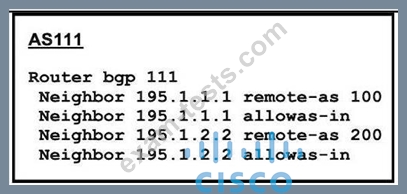

Refer to the exhibit.

AS111 is receiving its own routes from AS200 causing a loop in the network. Which configuration provides loop prevention?
A)

A.Option D

B.Option A

C.Option B

D.Option C

Question 5

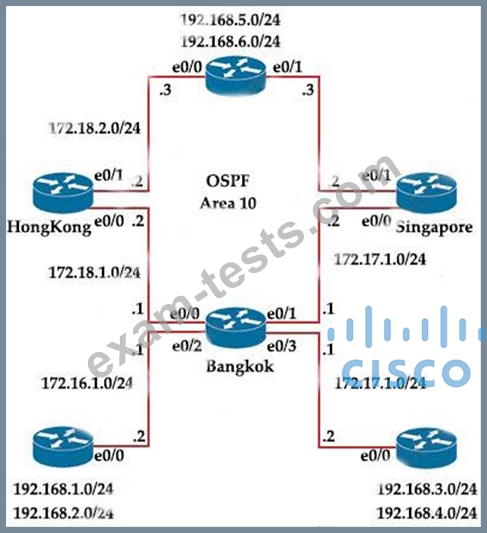

Exhibit:

Bangkok is using ECMP to reach to the 192.168.5.0/24 network. The administrator must configure Bangkok in such a way that Telnet traffic from 192.168.3.0/24 and192.168.4.0/24 networks uses the HongKong router as the preferred router. Which set of configurations accomplishes this task?

A.access-list 101 permit tcp 192.168.3.0 0.0.0.255 192.168.5.0 0.0.0.255 access-list 101 permit tcp 192.168.4.0 0.0.0.255 192.168.5.0 0.0.0.255
!
route-map PBR1 permit 10
match ip address 101
set ip next-hop 172.18.1.2
interface Ethernet0/3
ip policy route-map PBR1

B.access-list 101 permit tcp 192.168.3.0 0.0.0.255 192.168.5.0 0.0.0.255 eq 23 access-list 101 permit tcp 192.168.4.0 0.0.0.255 192.168.5.0 0.0.0.255 eq 23
!
route-map PBR1 permit 10
match ip address 101
set ip next-hop 172.18.1.2
interface Ethernet0/1
ip policy route-map PBR1

C.access-list 101 permit tcp 192.168.3.0 0.0.0.255 192.168.5.0 0.0.0.255 eq 23 access-list 101 permit tcp 192.168.4.0 0.0.0.255 192.168.5.0 0.0.0.255 eq 23
!
route-map PBR1 permit 10
match ip address 101
set ip next-hop 172.18.1.2
!
interface Ethernet0/3
ip policy route-map PBR1

D.access-list 101 permit tcp 192.168.3.0 0.0.0.255 192.168.5.0 0.0.0.255 access-list 101 permit tcp 192.168.4.0 0.0.0.255 192.168.5.0 0.0.0.255
!
route-map PBR1 permit 10
match ip address 101
set ip next-hop 172.18.1.2
!
interface Ethernet0/1
ip policy route-map PBR1
