Question 6

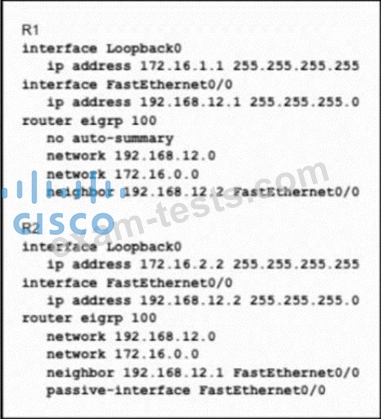

Refer to the exhibit. R1 and R2 cannot establish an EIGRP adjacency. Which action establishes EIGRP adjacency?

A.Add the passive-interface command to the R1 configuration so that it matches the R2 configuration.

B.Remove the passive-interface command from the R2 configuration so that it matches the R1 configuration.

C.Add the no auto-summary command to the R2 configuration so that it matches the R1 configuration.

D.Remove the current autonomous system number on one of the routers and change to a different value.

Question 7

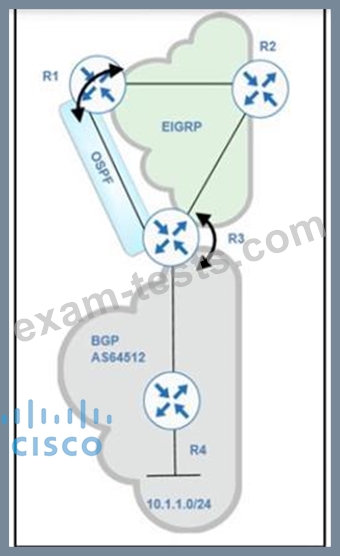

Refer to exhibit.

Routing protocols are mutually redistributed on R3 and R1. Users report intermittent connectivity to services hosted on the 10.1.1.0/24 prefix. Significant routing update changes are noticed on R3 when the show ip route profile command is run. How must the services be stabilized?

A.The issue with using BGP must be resolved by using another protocol and redistributing it into EIGRP on R3

B.The routing loop must be fixed by reducing the admin distance of iBGP from 200 to 100 on R3

C.The routing loop must be fixed by reducing the admin distance of OSPF from 110 to 80 on R3

D.The issue with using iBGP must be fixed by running eBGP between R3 and R4

Question 8

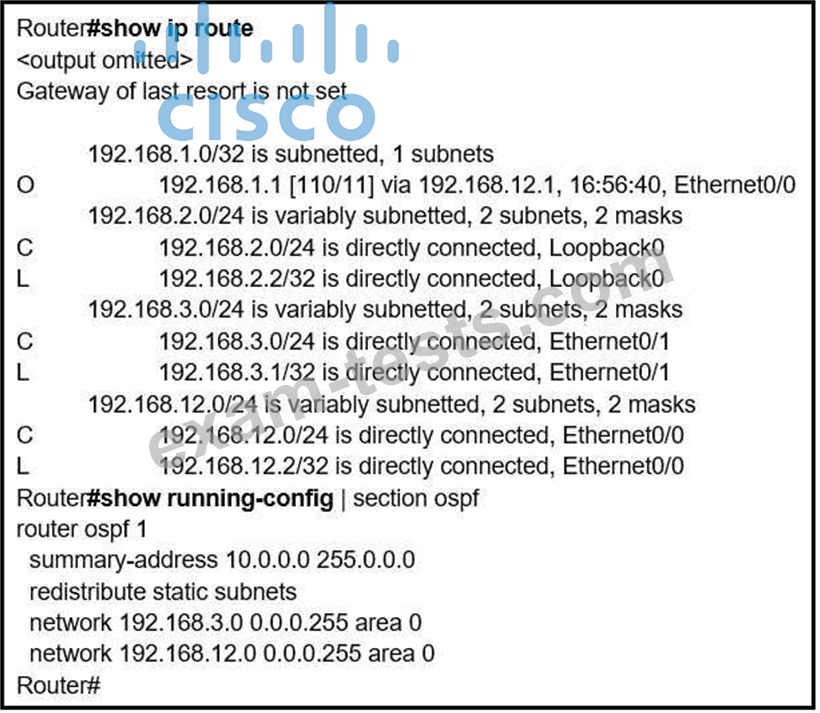

Refer to the exhibit. An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table.
Why is the summary route missing?

A.The summary-address command is used only for summarizing prefixes between areas.

B.The summary route is visible only in the OSPF database, not in the routing table.

C.There is no route for a subnet inside 10.0.0.0/8, so the summary route is not generated.

D.The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.

Question 9

An engineer configured the wrong default gateway for the Cisco DNA center enterprise interface during the install.
Which command must the engineer run to correct the configuration?

A.Sudo maglev install config update

B.Sudo magiev-config update

C.Sudo maglev reinstall

D.Sudi update config install

Question 10

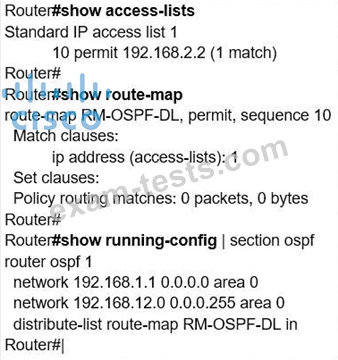

Refer to the exhibit.

An engineer is trying to block the route to 192.168.2.2 from the routing table by using the configuration that is shown. The route is still present in the routing table as an OSPF route. Which action blocks the route?

A.Add this statement to the route map: route-map RM-OSPF-DL deny 20.

B.Change sequence 10 in the route-map command from permit to deny.

C.Use an extended access list instead of a standard access list.

D.Use a prefix list instead of an access list in the route map.
