Question 101

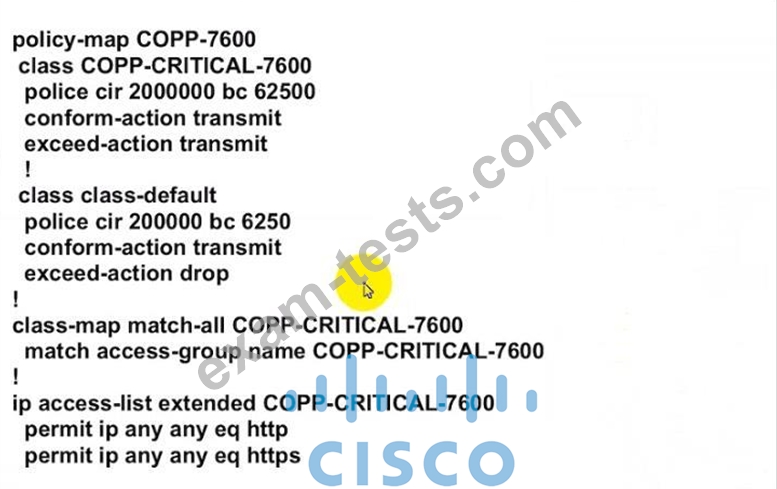

Exhibit:

BGP is flapping after the Copp policy is applied. What are the two solutions to fix the issue?
(Choose two)

A.Configure BGP in the COPP-CRITICAL-7600 ACL

B.Configure a higher value for CIR under the default class to allow more packets during peak traffic

C.Configure a higher value for CIR under the class COPP-CRITICAL-7600

D.Configure a three-color policer instead of two-color policer under class COPP-CRITICAL-
7600

E.Configure IP CEF to CoPP policy and BGP to work

Question 102

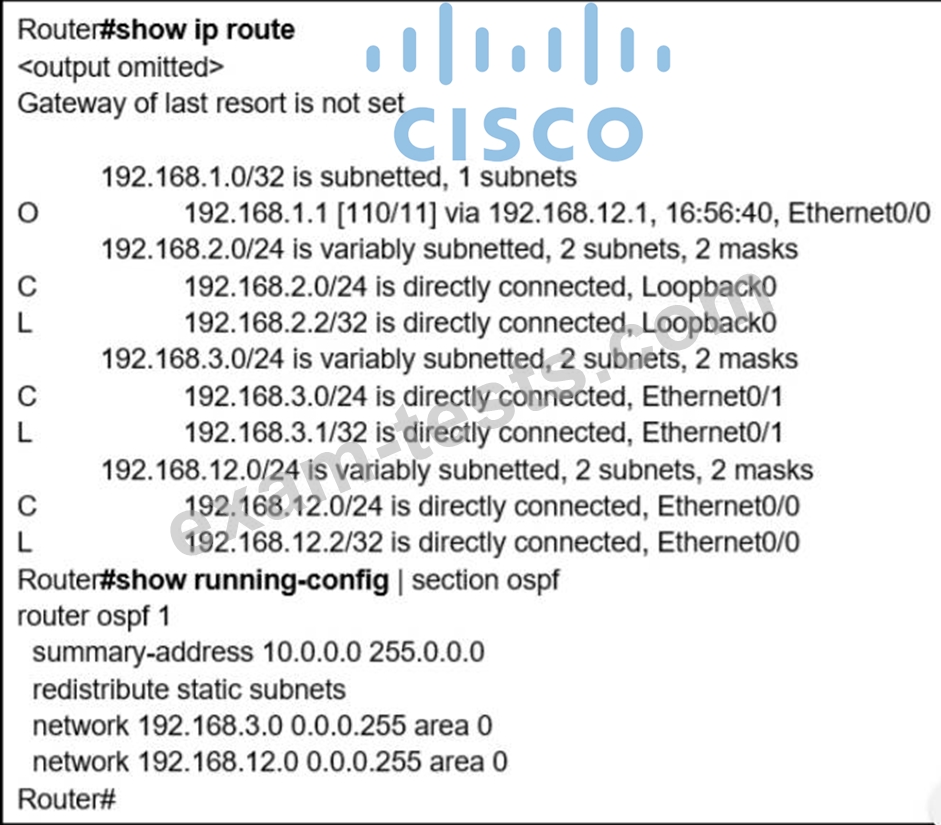

Refer to the exhibit.

An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table.
Why is the summary route missing?

A.There is no route for a subnet inside 10.0.0.0/8, sp the summary route is not generated.

B.The summary-address command is used only for summary prefixes between areas.

C.The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.

D.The summary route is visible only in the OSPF database not in the routing table.

Question 103

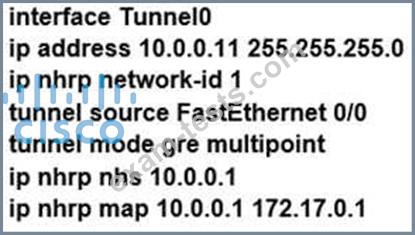

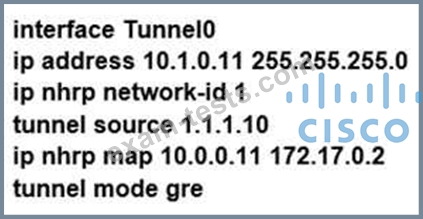

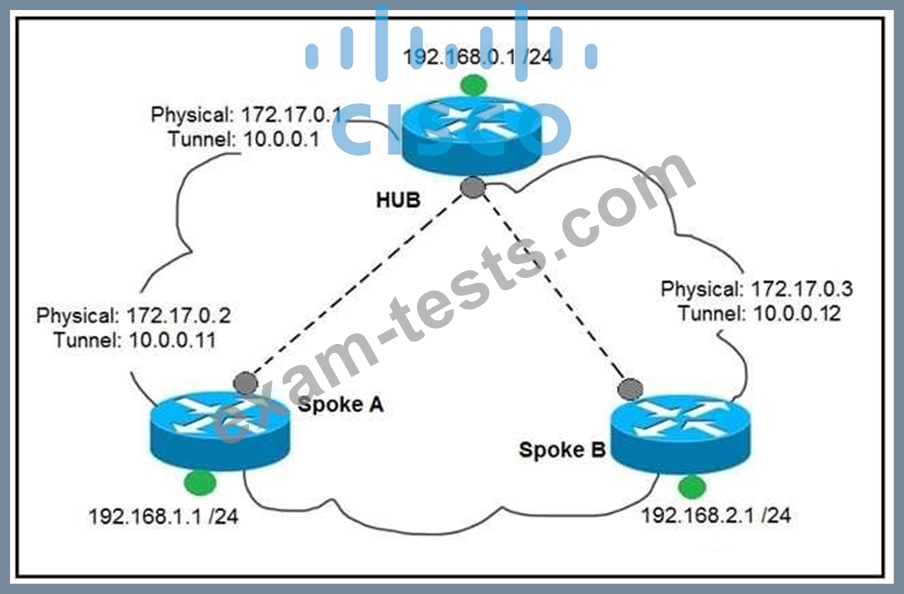

Refer to the exhibit. Which interface configuration must be configured on the spoke A router to enable a dynamic DMVPN tunnel with the spoke B router?

Question 104

Refer to the exhibit.

An engineer is monitoring reachability of the configured default routes to ISP1 and ISP2. The default route from ISP1 is preferred if available. How is this issue resolved?

A.Use the icmp-echo command to track both default routes

B.Start IP SLA by defining frequency and scheduling it

C.Start IP SLA by matching numbers for track and ip sla commands

D.Use the same AD for both default routes

Question 105

Which method changes the forwarding decision that a router makes first changing the routing table or influencing the IP data plane?

A.Packet switching

B.Forwarding information base

C.Nonbroadcast multi-access

D.Policy-based routing
