Free Access Cisco.300-410.v2022-01-27.q256 Practice Test (Page 33)

Question 156

Refer to the exhibit.

Which routes from OSPF process 5 are redistributed into EIGRP?

A.E1 and E2 subnets matching prefix list TO-OSPF

B.E1 and E2 subnets matching access list TO-OSPF

C.only E2 subnets matching access list TO-OSPF

D.only E1 subnets matching prefix listTO-OS1

Question 157

Refer to the exhibit.

An engineer configures a static route on a router, but when the engineer checks the route to the destination, a different next hop is chosen. What is the reason for this?

A.Dynamic routing protocols always have priority over static routes.

B.The metric of the OSPF route is lower than the metric of the static route.

C.The configured AD for the static route is higher than the AD of OSPF.

D.The syntax of the static route is not valid, so the route is not considered.

Question 158

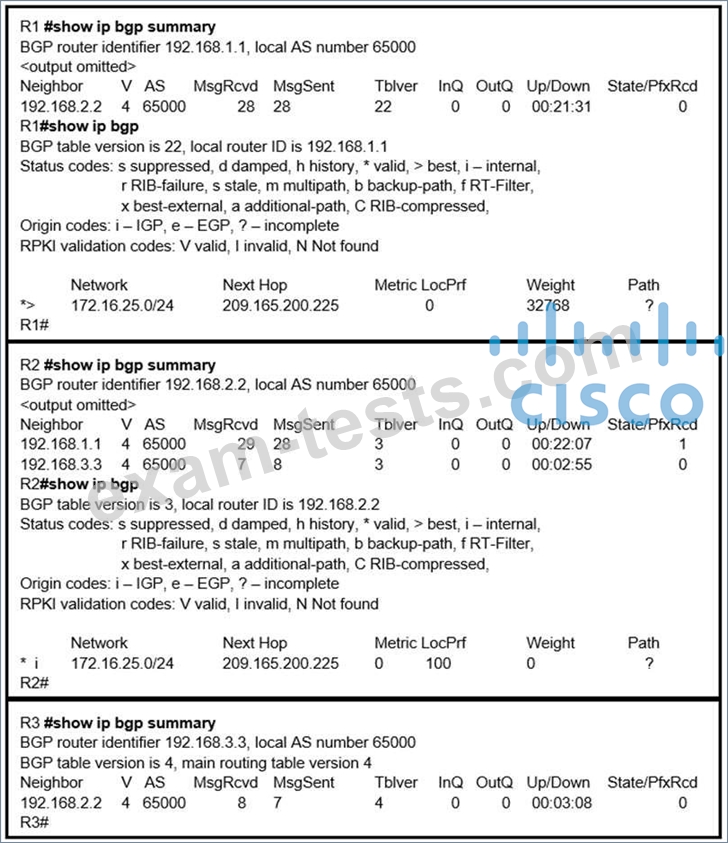

Refer to the exhibit. R2 is a route reflector, and R1 and R3 are route reflector clients. The route reflector learns the route to 172.16.25.0/24 from R1, but it does not advertise to R3.
What is the reason the route is not advertised?

A.R2 does not have a route to the next hop, so R2 does not advertise the prefix to other clients.

B.Route reflector setup requires full IBGP mesh between the routers.

C.In route reflector setup, only classful prefixes are advertised to other clients.

D.In route reflector setups, prefixes are not advertised from one client to another.

Question 159

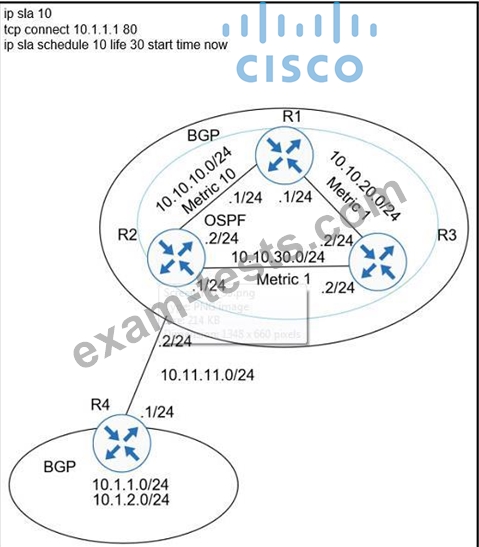

Refer to the exhibit.

A user has set up an IP SLA probe to test if a non-SLA host web server on IP address 10.1.1.1 accepts HTTP sessions prior to deployment. The probe is failing. Which action should the network administrator recommend for the probe to succeed?

A.Re-issue the ip sla schedule command.

B.Add icmp-echo command for the host.

C.Add the control disable option to the tcp connect.

D.Modify the ip sla schedule frequency to forever.

Question 160

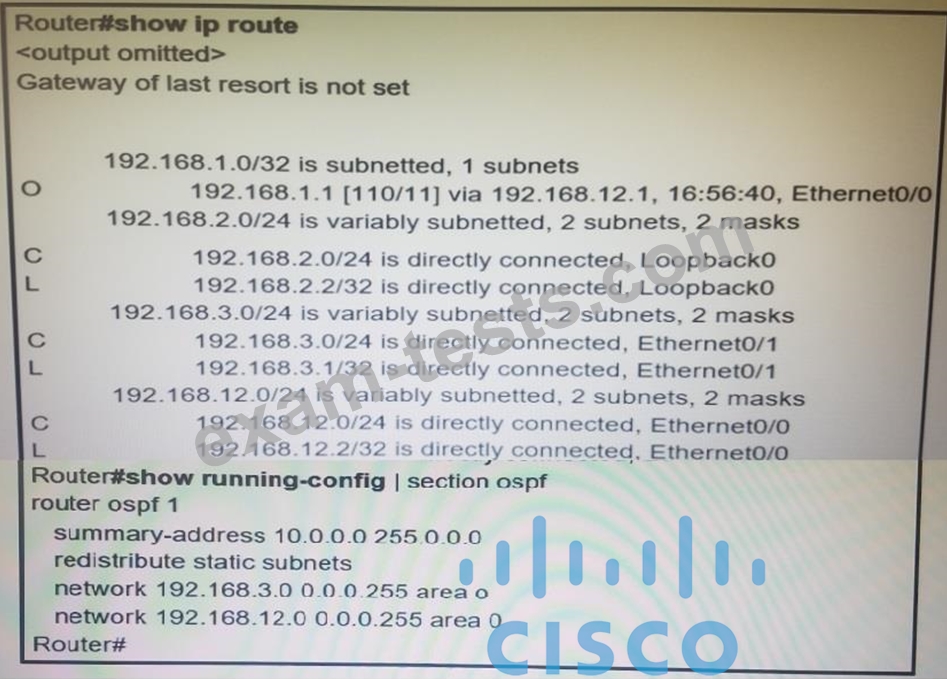

Refer to the exhibit.

An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table. Why is the summary route missing?

A.The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.

B.There is no route for a subnet inside 10.0.0.0/8, sp the summary route is not generated.

C.The summary route is visible only in the OSPF database not in the routing table.

D.The summary-address command is used only for summary prefixes between areas.
