Question 161

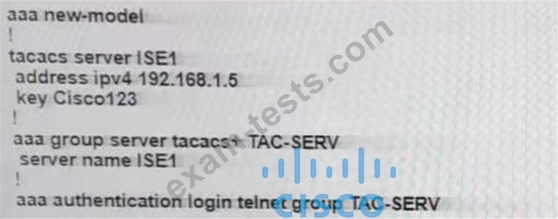

The network administrator configured R1 to authenticate Telnet connections based on Cisco ISE using TACACS+. ISE has been configured with an IP address of 192.168.1.5 and with a network device pointing toward R1(192.168.1.1) with a shared secret password of Cisco123.
The administrator cannot authenticate to R1 based on ISE. Which configuration fixes the issue?
The administrator cannot authenticate to R1 based on ISE. Which configuration fixes the issue?
Question 162
Refer to the exhibit.

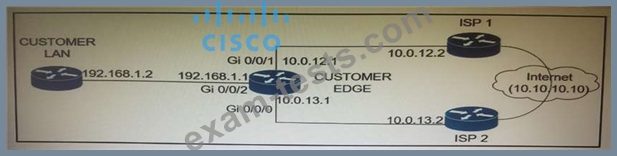

ISP 1 and ISP 2 directly connect to the internet. A customer IS tracking both ISP links to achieve redundancy and cannot see the Cisco IP SLA tracking output on the router console. Which command is missing from the IP SLA configuration?
ISP 1 and ISP 2 directly connect to the internet. A customer IS tracking both ISP links to achieve redundancy and cannot see the Cisco IP SLA tracking output on the router console. Which command is missing from the IP SLA configuration?
Question 163
Refer to Exhibit:

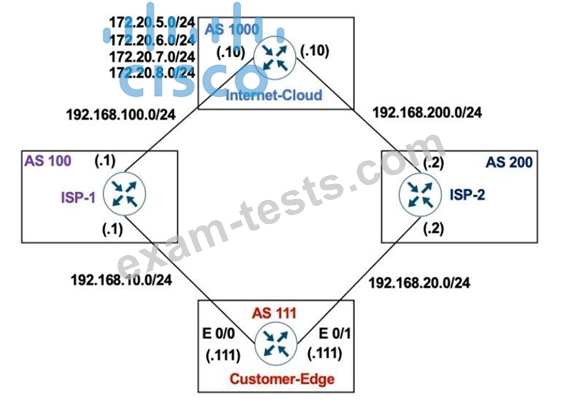

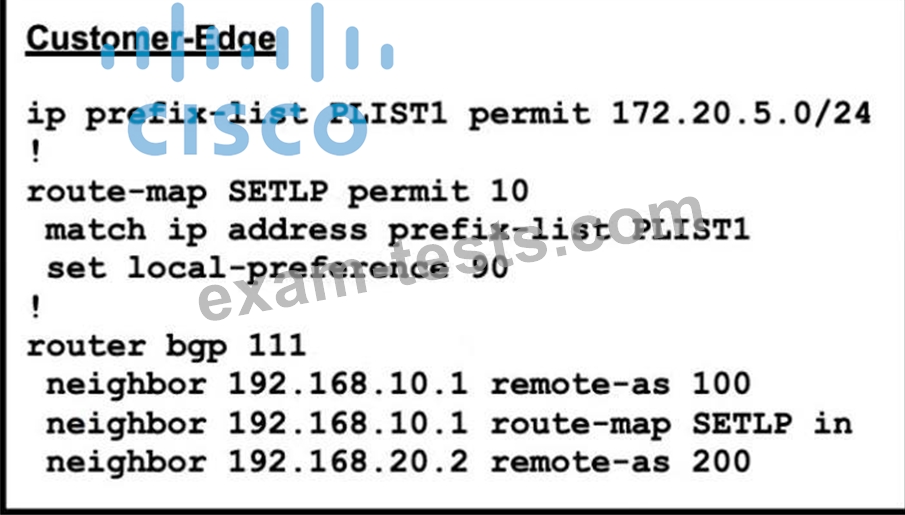

AS 111 wanted to use AS 200 as the preferred path for 172.20.5.0/24 and AS 100 as the backup. After the configuration, AS 100 is not used for any other routes. Which configuration resolves the issue?
AS 111 wanted to use AS 200 as the preferred path for 172.20.5.0/24 and AS 100 as the backup. After the configuration, AS 100 is not used for any other routes. Which configuration resolves the issue?
Question 164

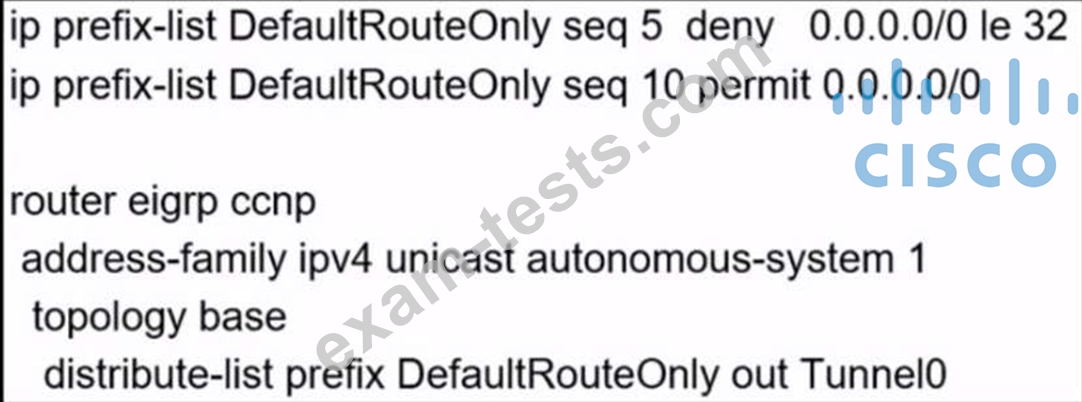

Refer to the exhibit. The administrator configured route advertisement to a remote low resources rooter to use only the default route to reach any network but failed. Which action resolves this issue?
Question 165
Exhibit:

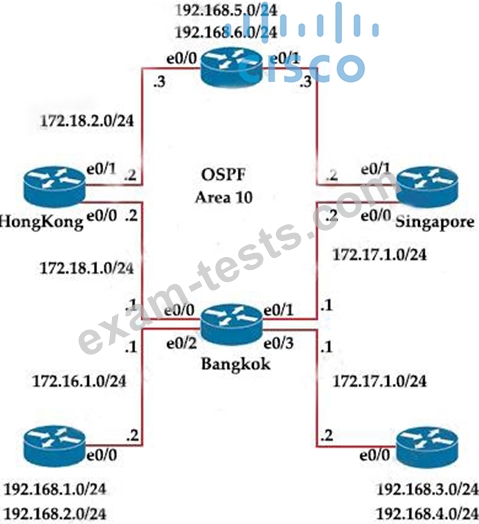

Bangkok is using ECMP to reach to the 192.168.5.0/24 network. The administrator must configure Bangkok in such a way that Telnet traffic from 192.168.3.0/24 and192.168.4.0/24 networks uses the HongKong router as the preferred router. Which set of configurations accomplishes this task?
Bangkok is using ECMP to reach to the 192.168.5.0/24 network. The administrator must configure Bangkok in such a way that Telnet traffic from 192.168.3.0/24 and192.168.4.0/24 networks uses the HongKong router as the preferred router. Which set of configurations accomplishes this task?
