Free Access Cisco.300-410.v2022-01-27.q256 Practice Test (Page 50)

Question 241

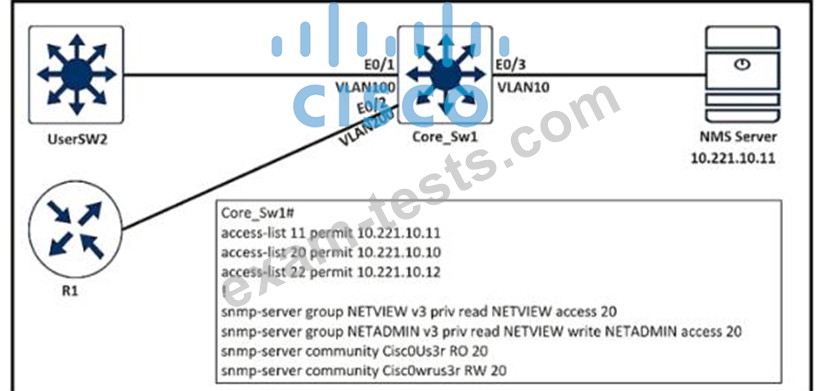

Refer to the exhibit.

An engineer configured SNMP communities on the Core_SW1, but the SNMP server cannot obtain information from Core_SW1. Which configuration resolves this issue?

A.access-list 20 permit 10.221.10.11

B.access-list 20 permit 10.221.10.12

C.snmp-server group NETVIEW v2c priv read NETVIEW access 20

D.snmp-server group NETADMIN v3 priv read NETVIEW write NETADMIN access 22

Question 242

Refer to the exhibit.

Which statement about R1 is true?

A.OSPF redistributes RIP routes only if they have a tag of one.

B.RIP learned routes are distributed to OSPF with a tag value of one.

C.RIP routes are redistributed to OSPF without any changes.

D.R1 adds one to the metric for RIP learned routes before redistributing to OSPF.

Question 243

Which function does LDP provide in an MPLS topology?

A.It exchanges routes for MPLS VPNs across different VRFs.

B.It enables a MPLS topology to connect multiple VPNs to P routers.

C.It provides a means for LSRs to exchange IP routes.

D.It provides hop-by-hop forwarding in an MPLS topology for LSRs.

Question 244

Which 0S1 model is used to insert an MPLS label?

A.between Layer 1 and Layer 2

B.between Layer 2 and Layer 3

C.between Layer 3 and Layer 4

D.between Layer 5 and Layer 6

Question 245

A network administrator is tasked to permit http and https traffic only toward the internet from the User1 laptop to adhere to company's security policy. The administrator can still ping to www.cisco.com Which interface should the access list 101 be applied to resolve this issue?

A.Interface S1/0 in the outgoing direction.

B.Interface G0/0 in the outgoing direction.

C.Interface G0/48 in the incoming direction

D.Interface G0/0 in the incoming direction.
