Free Access Cisco.300-410.v2022-07-26.q136 Practice Test (Page 24)

Question 111

Refer to the exhibit.

Network operations cannot read or write any configuration on the device with this configuration from the operations subnet. Which two configurations fix the issue? (Choose two.)

A.Configure SNMP rw permission in addition to version 1.

B.Modify access list 1 and allow SNMP in the access list.

C.Modify access list 1 and allow operations subnet in the access list.

D.Configure SNMP rw permission in addition to community ciscotest 1.

E.Configure SNMP rw permission in addition to community ciscotest.

Question 112

Drag and drop the SNMP attributes in Cisco IOS devices from the left onto the correct SNMPv2c or SNMPV3 categories on the right.

Question 113

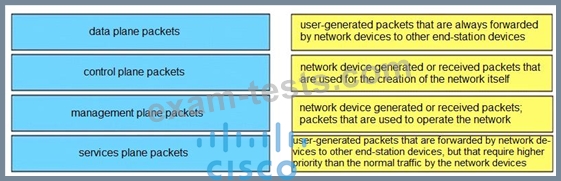

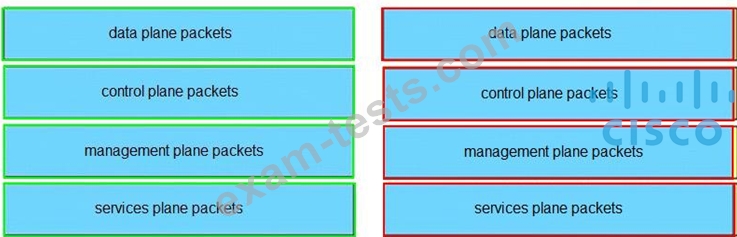

Drag and drop the packet types from the left onto the correct descriptions on the right.

Correct Answer:

Explanation:
Unlike legacy network technologies such as ISDN, Frame Relay, and ATM that defined separate data and control channels, IP carries all packets within a single pipe. Thus, IP network devices such as routers and switches must be able to distinguish between data plane, control plane, and management plane packets to treat each packet appropriately. From an IP traffic plane perspective, packets may be divided into four distinct, logical groups: 1. Data plane packets - End-station, user-generated packets that are always forwarded by network devices to other end-station devices. From the perspective of the network device, data plane packets always have a transit destination IP address and can be handled by normal, destination IP address-based forwarding processes. 2. Control plane packets - Network device generated or received packets that are used for the creation and operation of the network itself. From the perspective of the network device, control plane packets always have a receive destination IP address and are handled by the CPU in the network device route processor. Examples include protocols such as ARP, BGP, OSPF, and other protocols that glue the network together. 3. Management plane packets - Network device generated or received packets, or management station generated or received packets that are used to manage the network. From the perspective of the network device, management plane packets always have a receive destination IP address and are handled by the CPU in the network device route processor. Examples include protocols such as Telnet, Secure Shell (SSH), TFTP, SNMP, FTP, NTP, and other protocols used to manage the device and/or network. 4. Services plane packets - A special case of data plane packets, services plane packets are also user-generated packets that are also forwarded by network devices to other end-station devices, but that require high-touch handling by the network device (above and beyond normal, destination IP address-based forwarding) to forward the packet. Examples of high-touch handling include such functions as GRE encapsulation, QoS, MPLS VPNs, and SSL/IPsec encryption/decryption, etc. From the perspective of the network device, services plane packets may have a transit destination IP address, or may have a receive destination IP address (for example, in the case of a VPN tunnel endpoint).
Reference:
https://tools.cisco.com/security/center/resources/copp_best_practices

Question 114

Refer to the exhibit.

A network engineer applied a filter for LSA traffic on OSPFv3 interarea routes on the area 5 ABR to protect advertising the internal routes of area 5 to the business partner network. All other areas should receive the area 5 internal routes. After the respective route filtering configuration is applied on the ABR, area 5 routes are not visible on any of the areas. How must the filter list be applied on the ABR to resolve this issue?

A.in the "out" direction for area 20 on router R2

B.in the "in" direction for area 5 on router R1

C.in the "out" direction for area 5 on router R1

D.in the "in" direction for area 20 on router R2

Question 115

Refer to the exhibit.

An administrator that is connected to the console does not see debug messages when remote users log in. Which action ensures that debug messages are displayed for remote logins?

A.Enter the logging console debugging configuration command.

B.Enter the transport input ssh configuration command.

C.Enter the terminal monitor exec command.

D.Enter the aaa new-model configuration command.
