Question 116

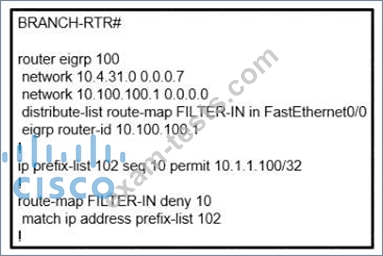

Refer to the exhibit.

A junior engineer updated a branch router configuration. Immediately after the change, the engineer receives calls from the help desk that branch personnel cannot reach any network destinations. Which configuration restores service and continues to block 10.1.1.100/32?
  • Question 117

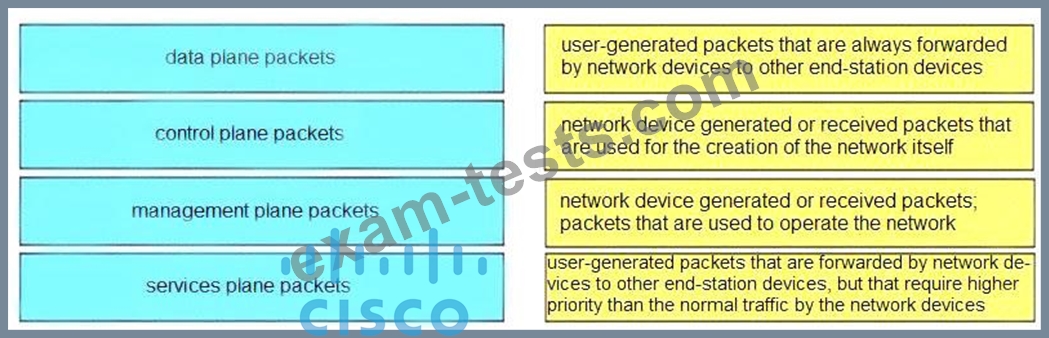

    Drag and drop the packet types from the left onto the correct descriptions on the right.

    Question 118

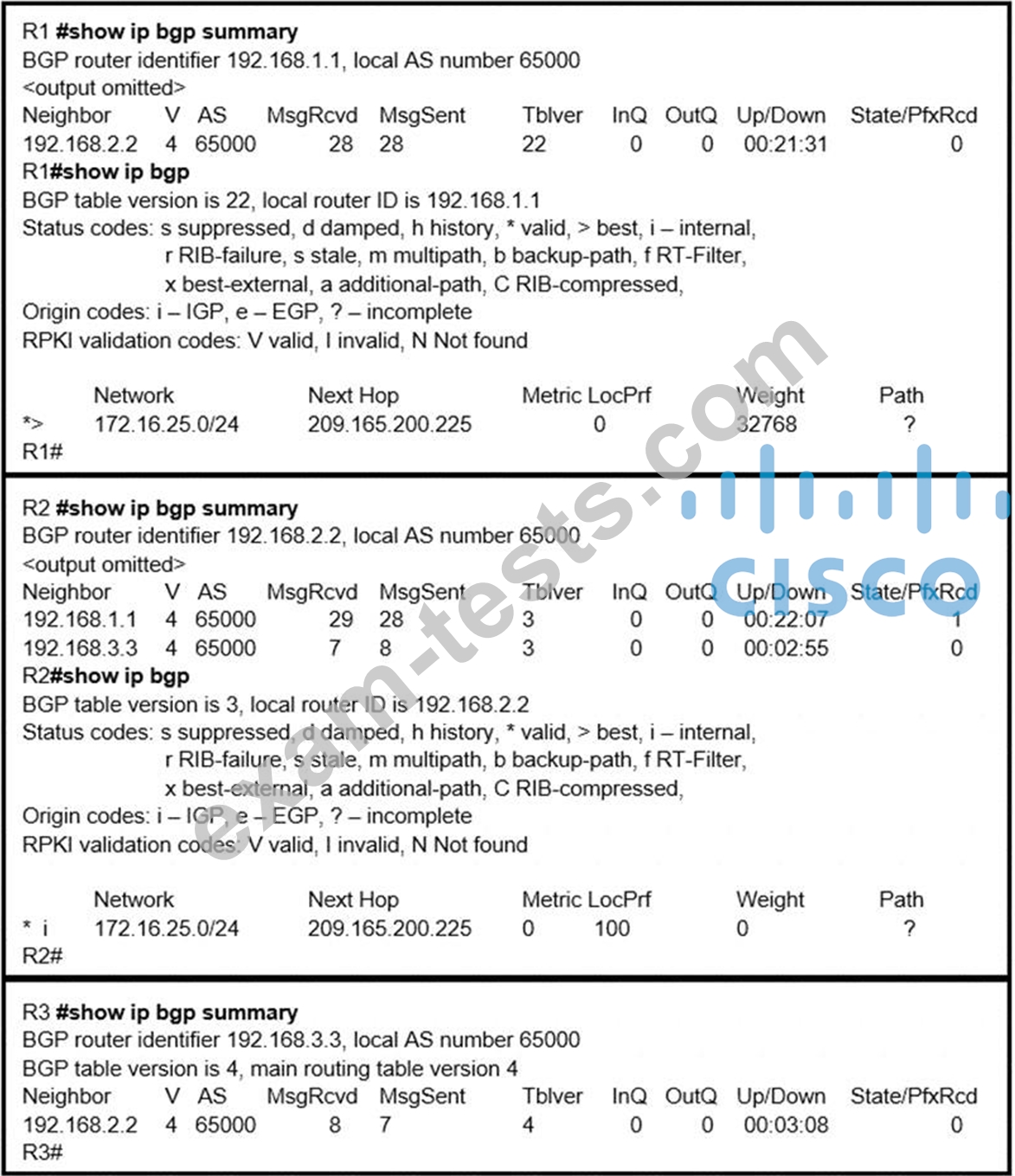

    Refer to the exhibit.

    R2 is a route reflector, and R1 and R3 are route reflector clients. The route reflector learns the route to
    172.16.25.0/24 from R1, but it does not advertise to R3. What is the reason the route is not advertised?
  • Question 119

    An engineer configured a leak-map command to summarize EIGRP routes and advertise specifically loopback
    0 with an IP of 10.1.1.1.255.255.255.252 along with the summary route. After finishing configuration, the customer complained not receiving summary route with specific loopback address. Which two configurations will fix it? (Choose two.)
  • Question 120

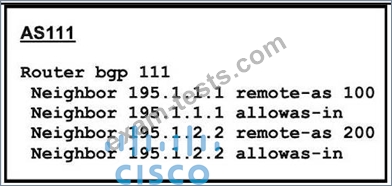

    Refer to the exhibit.

    AS111 is receiving its own routes from AS200 causing a loop in the network. Which configuration provides loop prevention?
    A)

    B)

    C)

    D)
