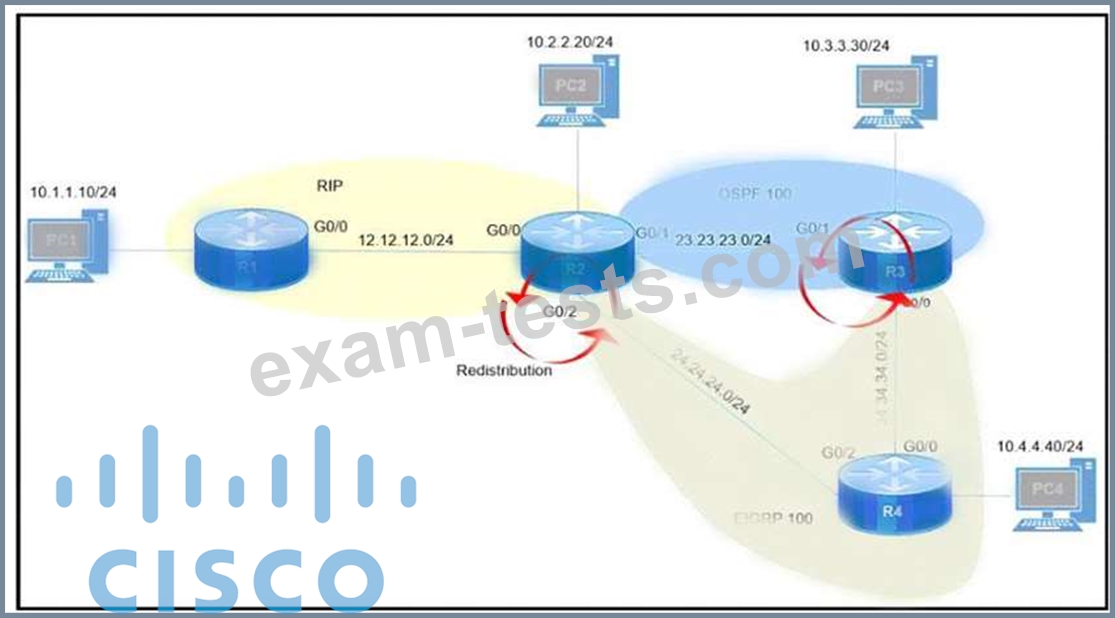

Question 16

Refer to the exhibit.

Redistribution is enabled between the routing protocols, and nowPC2 PC3, and PC4 cannot reach PC1. What are the two solutions to fix the problem? (Choose two.)

A.Filter RIP routes back into RIP when redistributing into RIP in R2

B.Filter OSPF routes into RIP FROM EIGRP when redistributing into RIP in R2.

C.Filter all routes except RIP routes when redistributing into EIGRP in R2.

D.Filter RIP AND OSPF routes back into OSPF from EIGRP when redistributing into OSPF in R2

E.Filter all routes except EIGRP routes when redistributing into OSPF in R3.

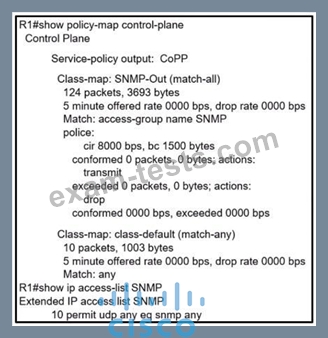

Question 17

Refer to the exhibit.

R1 is being monitored using SNMP and monitoring devices are getting only partial information. What action should be taken to resolve this issue?

A.Modify the CoPP policy to increase the configured exceeded limit for SNMP.

B.Modify the access list to add a second line to allow udp any any eq snmp

C.Modify the CoPP policy to increase the configured CIR limit for SNMP.

D.Modify the access list to include snmptrap.

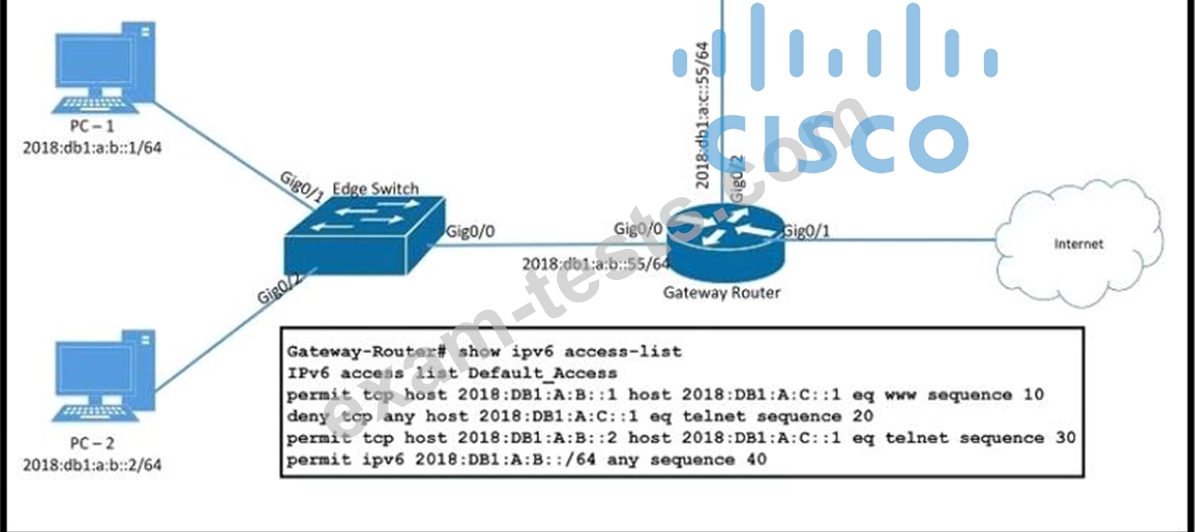

Question 18

Refer to the exhibit.

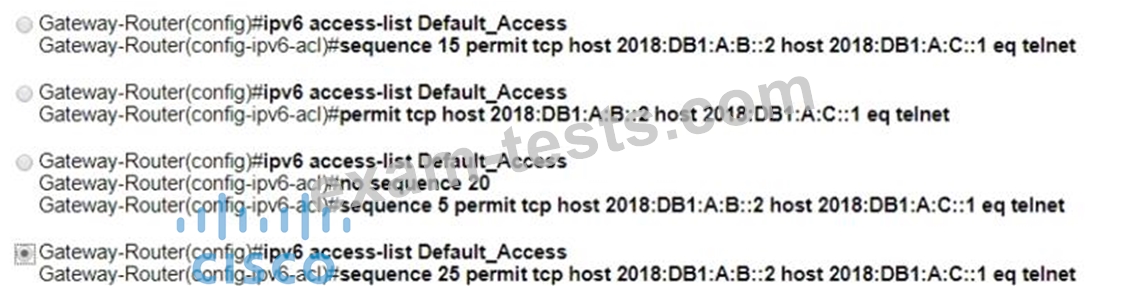

PC-2 failed to establish a Telnet connection to the terminal server Which configuration resolves the issue?

A.Option A

B.Option B

C.Option C

D.Option D

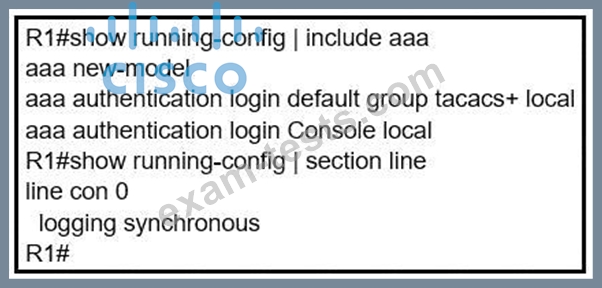

Question 19

Refer to the exhibit.

An engineer is trying to configure local authentication on the console line, but the device is trying to authenticate using TACACS+. Which action produces the desired configuration?

A.Add the login authentication Console command to the line configuration

B.Add the aaa authentication login default group tacacs+ local-case command to the global configuration.

C.Replace the capital "C" with a lowercase "c" in the aaa authentication login Console local command.

D.Add the aaa authentication login default none command to the global configuration.

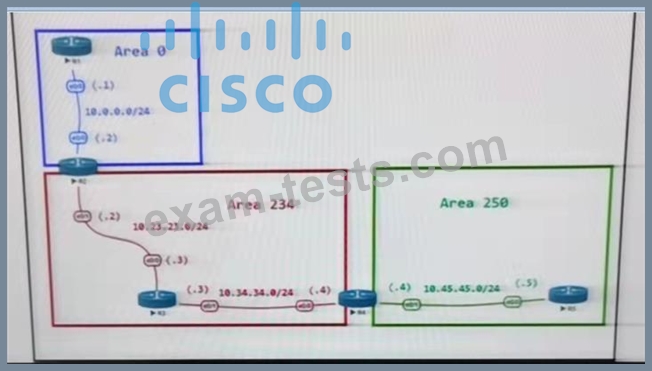

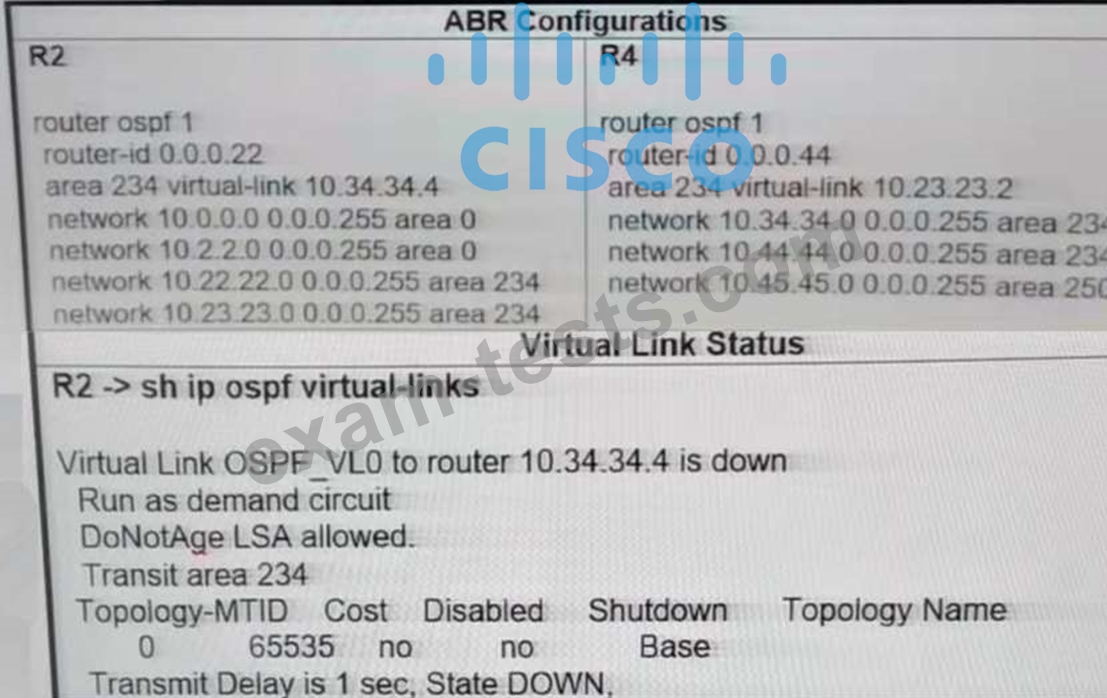

Question 20

Refer to the exhibit.

The network administrator configured the network to connect two disjointed networks and ail the connectivity is up except the virtual link which causes area 250 to be unreachable. Which two configurations resolve this issue? (Choose two.)

A.R4
router ospf 1
no area 234 virtual-link 10.23.23.2
area 234 virtual-link 0.0.0.22

B.R2
router ospf 1
no area 234 virtual-link 10.34.34.4
area 234 virtual-link 0.0.0.44

C.R4
router ospf 1
no area area 234 virtual-link 10.23.23.2
area 0 virtual-link 0.0.0.22

D.R2
router ospf 1
router-id 10.23.23.2

E.R2
router ospf 1
no area area 234 virtual-link 10.34.34.4
area 0 virtual-link 0.0.0.44
