Free Access Cisco.300-410.v2022-07-26.q136 Practice Test (Page 8)

Question 31

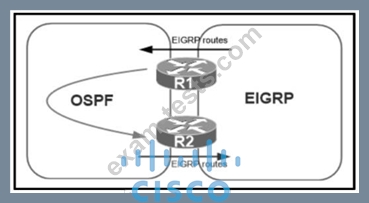

Refer to the exhibit.

A network administrator configured mutual redistribution on R1 and R2 routers, which caused instability in the network. Which action resolves the issue?

A.Set a tag in the route map when redistributing EIGRP into OSPF on R1. and match the same tag on R2 to allow when redistributing OSPF into EIGRP.

B.Apply a prefix list of EIGRP network routes in OSPF domain on R1 to propagate back into the EIGRP routing domain.

C.Set a tag in the route map when redistributing EIGRP into OSPF on R1, and match the same tag on R2 to deny when redistributing OSPF into EIGRP.

D.Advertise summary routes of EIGRP to OSPF and deny specific EIGRP routes when redistributing into OSPF.

Question 32

A network administrator added a new spoke site with dynamic IP on the DMVPN network. Which configuration command passes traffic on the DMVPN tunnel from the spoke router?

A.ip nhrp registration no-unique

B.ip nhrp registration dynamic

C.ip nhrp registration no-registration

D.ip nhrp registration ignore

Question 33

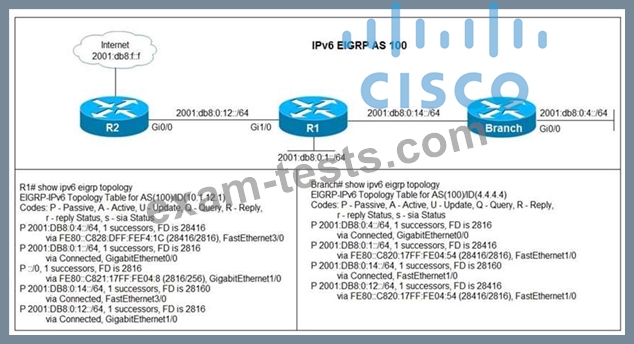

Refer to the exhibit.

Users in the branch network of 2001:db8:0:4::/64 report that they cannot access the Internet. Which command is issued in IPv6 router EIGRP 100 configuration mode to solve this issue?

A.Issue the eigrp stub command on R1

B.Issue the no neighbor stub command on R2.

C.Issue the eighr command on R2.

D.Issue the no eighrp stub command on R2.

Question 34

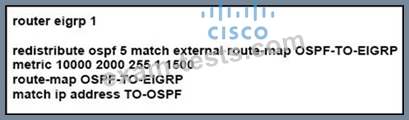

Refer to the exhibit.

Which routes from OSPF process 5 are redistributed into EIGRP?

A.only E2 subnets matching access list TO-OSPF

B.E1 and E2 subnets matching access list TO-OSPF

C.only E1 subnets matching prefix listTO-OS1

D.E1 and E2 subnets matching prefix list TO-OSPF

Question 35

An engineer configured a company's multiple area OSPF head office router and Site A cisco routers with VRF lite. Each site router is connected to a PE router of an MPLS backbone.

After finishing both site router configurations, none of the LSA 3,4 5, and 7 are installed at Site A router.
Which configuration resolves this issue?

A.configure capability vrf-lite on Site A and its connected PE router under router ospf 1 vrf abc

B.configure capability vrf-lite on Head Office and Site A routers under router ospf 1 vrf abc

C.configure capability vrf-lite on Head Office and its connected PE router under router ospf 1 vrf abc

D.configure capability vrf-lite on both PE routers connected to Head Office and Site A routers under routtr ospf 1 vrf abc
