Question 1

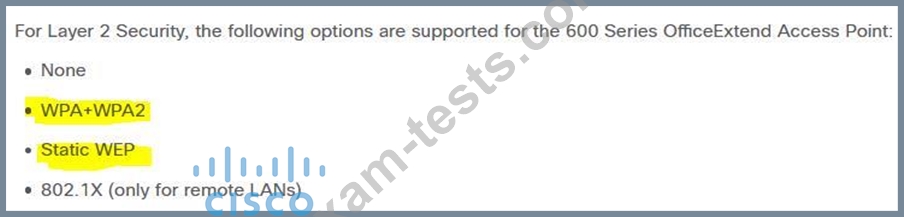

An engineer must configure a Cisco WLC to support Cisco Aironet 600 Series OfficeExtend APs. Which two Layer 2 security options are supported in this environment? (Choose two.)
  • Question 2

    Which two configurations are applied on the WLC to enable multicast, check multicast stream subscriptions, and stream content only to subscribed clients? (Choose two)
  • Question 3

    An engineer must track guest traffic flow using the WLAN infrastructure. Which Cisco CMX feature must be configured and used to accomplish this tracking?
  • Question 4

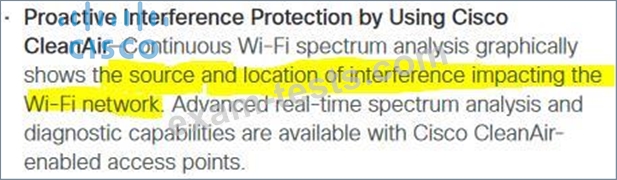

    A customer is experiencing performance issues with its wireless network and asks a wireless engineer to provide information about all sources of interference and their impacts to the wireless network over the past few days. Where can the requested information be accessed?
  • Question 5

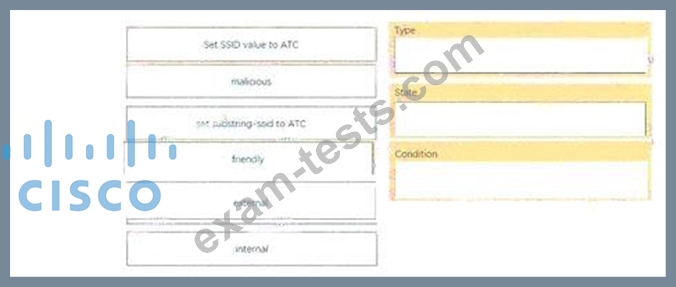

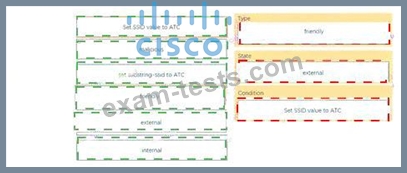

    The network management team in a large shopping center has detected numerous roque APs from local coffee shops that are broadcasting SSIDs. All of these SSlDs have names starting with ATC (for example. ATC302.
    ATC011. and ATC566). A wireless network engineer must appropriately classify these SSIDs using the Rogue Rules feature. Drag and drop the options from the left onto the categories in which they must be used on the right. Not all options are used.
