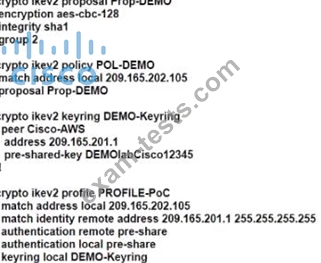

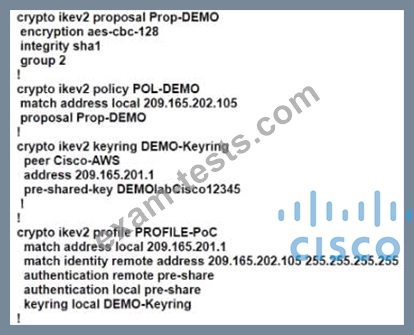

Option C is the correct answer because it configures the IKEv2 profile with the correct match identity, authentication, and keyring parameters. It also configures the IPsecprofile with the correct transform set and lifetime parameters. Option A is incorrect because it does not specify the match identity remote address in the IKEv2 profile, which is required to match the AWS virtual private gateway IP address. Option B is incorrect because it does not specify the authentication pre-share in the IKEv2 profile, which is required to authenticate the IKEv2 peers using a pre-shared key. Option C also matches the configuration example provided by AWS1 and Cisco2 for setting up an IKEv2 IPsec site-to-site VPN between a Cisco IOS-XE router and an AWS virtual private gateway. References :=
1: AWS VPN Configuration Guide for Cisco IOS-XE
2: Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services

To enable the OMP advertisement of BGP routes for a specific VRF instance on a Cisco IOS XE SD-WAN device, the engineer must first configure the global address-family ipv4 and then enable bgp advertisement under the vrf definition. This will allow the device to advertise the BGP routes learned from the cloud provider to the OMP control plane, which will then distribute them to the other SD-WAN devices in the overlay network1 References := 1: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 3: Configuring IPsec VPN from Cisco IOS XE to AWS, Topic: Configuring BGP on the Cisco IOS XE Device, Page 3-24.

Explanation:
Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Select Template. Step 3 = Click CLI Add-On Template and enter the name and description. Step 4 = Paste the CLI configuration and then click Save.
The process of configuring a CLI add-on feature template in Cisco vManage for enhanced policy-based routing (ePBR) for IPv4 involves several steps1234.
Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.
Click Add Template, select the device, and then click Select Template: In this step, you add a new template for the device1.
Click CLI Add-On Template and enter the name and description: After setting up the template, you select the CLI Add-On Template option, and then enter the name and description for the template1.
Paste the CLI configuration and then click Save: Finally, you paste the CLI configuration into the template and save the changes1.
References :=
CLI Add-On Feature Templates - Cisco
Cisco Catalyst SD-WAN Systems and Interfaces Configuration Guide, Cisco IOS XE Catalyst SD-WAN Release 17.x - CLI Add-On Feature Templates Cisco SD-WAN vSmart CLI Template - NetworkLessons.com CLI Templates for Cisco XE SD-WAN Routers

The problem is that the site-list "All-Site" has a higher match sequence than the site-list "Hub", which means that the policy for "All-Site" will take precedence over the policy for "Hub" for any site that belongs to both lists. This creates a conflict and prevents the engineer from adding a new centralized control policy in Cisco vManage. To resolve this issue, the site-list "All-Site" should be configured with a new match sequence that is lower than the sequence for site-list "Hub", so that the policy for "Hub" will be applied first and then the policy for "All-Site" will be applied only to the remaining sites that are not in the "Hub" list. References := Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3: Cisco SD-WAN Cloud OnRamp for Colocation, Lesson 3: Cisco SD-WAN Cloud OnRamp for Colocation - Centralized Control Policies Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide, Chapter 4: Configuring Centralized Control Policies Cisco SD-WAN Configuration Guide, Release 20.3, Chapter: Centralized Policy Framework, Section:
Policy Configuration Overview
