Free Access Cisco.300-510.v2022-02-01.q126 Practice Test (Page 10)

Question 41

You have configured routing policies on a Cisco IOS XR device with routing policy language. Which two statements about the routing policies are true? (Choose two.)

A.If you make edits to an existing routing policy without pasting the full policy into the CLI, the previous policy is overwritten.

B.The routing policies are implemented using route maps.

C.The routing policies affect BGP-related routes only.

D.The routing policies are implemented in a sequential manner.

E.You can change an existing routing policy by editing individual statements.

Question 42

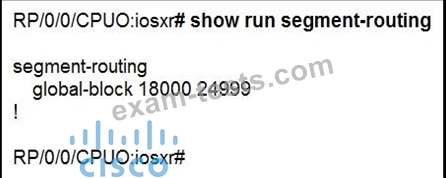

Refer to the exhibit.

A network engineer implemented this segment routing configuration. Which statement about the output is true?

A.This range conflicts with the segment routing local block range.

B.The device must be reloaded for these ranges to be allocated and used.

C.The default segment routing global block range is being used on this device.

D.A nondefault segment routing global block range is being used on this device.

Question 43

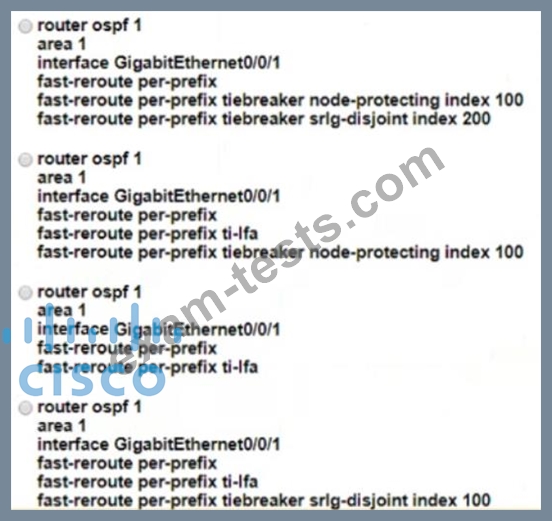

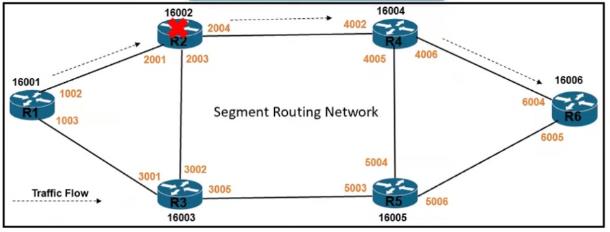

Refer to the exhibit.

Traffic flow from router R1 to router R6 is delay-sensitive It must consider potential link-failure and node-failure conditions Which configuration must an engineer apply to router R1 to route traffic to router R6 if router R2 fails?

A.Option C

B.Option B

C.Option D

D.Option A

Question 44

An engineer is working to implement segment routing protocol on the customer's core network. Which step should the engineer take before the segment routing is enabled and is running with BGP?

A.Explicit-null must be configured for all neighbors.

B.Segment routing must be configured with EIGRP.

C.MPLS must be configured.

D.Segment routing must be configured with ISIS.

Question 45

An engineer is troubleshooting slow performance issues on a customer's network after the last multicast configuration change was applied on it While checking the running configuration on the router the engineer notices there are many ip igmp join-group commands applied on several interfaces of the router which caused the high CPU utilization usage. What action must the engineer take to solve this issue?

A.Configure all router interfaces to be process-switched by increasing the query interval

B.Remove unnecessary members from the IGMP group

C.Remove ip igmp join-group command on all unnecessary interfaces

D.Configure ip igmp static-group command on all interfaces
