Question 56

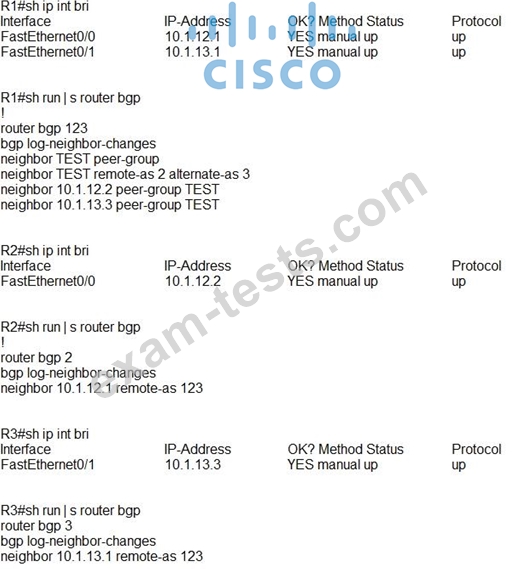

Refer to the exhibit.

R1 is directly connected to R2 and R3. R1 is in BGP AS 123, R2 is in BGP AS 2, and R3 is in BGP AS 3. Assume that there is no connectivity issue between R1, R2 and R1, R3. Which result between BGP peers R1, R2 and R1, R3 is true?

A.The BGP session does not come up between R1 and R2 and between R1 and R3.

B.The BGP session comes up between R1 and R3, but not between R1 and R2.

C.The BGP session comes up between R1 and R2 and between R1 and R3.

D.The BGP session comes up between R1 and R2, but not between R1 and R3.

Question 57

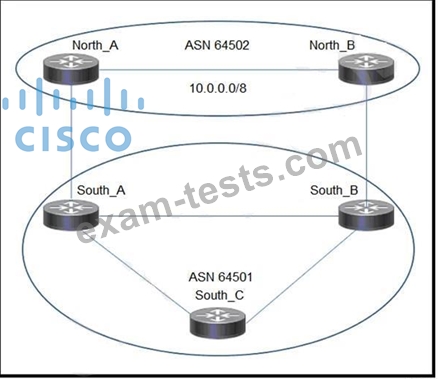

Refer to me exhibit.

A network engineer sets up a multihoming eBGP topology where multiple Autonomous Systems connect to ASN 64501. The engineer wants to block all the routers coming from ASN 64502. but allow all the others. For that purpose, the following AS Pam prefix 1st s being used:

What must be fixed to achieve this result?

A.At the end ip as-path access-list 10 permit .* must be included

B.The statement must be modified with ip as-path access-list 1 deny _64502_

C.The statement must CM modified with ip as path access list 1 deny A64502$

D.The AS-PATH filter must be defined inside the route-map mode

Question 58

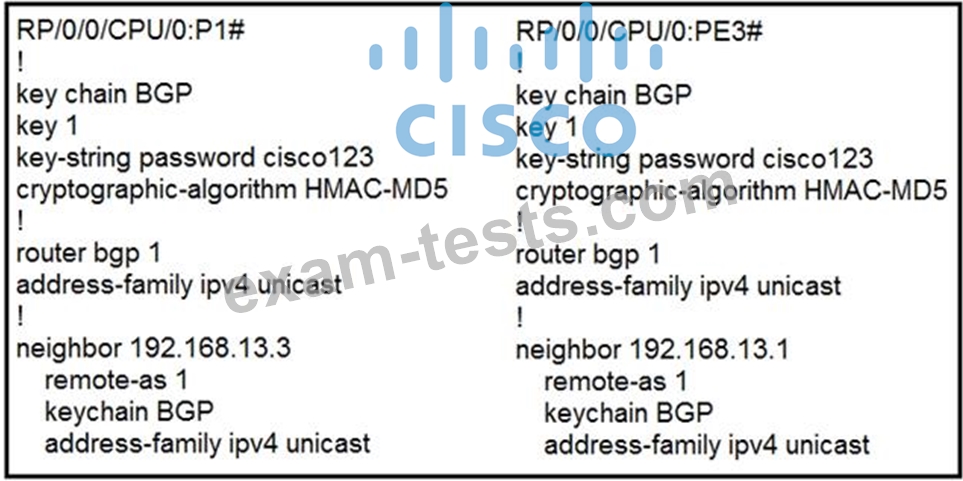

Refer to the exhibit.

P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers can open tcp port 179 to each other. Which action fixes the issue?

A.Change HMAC-MD5 to HMAC-SHA1-12

B.Change HMAC-MD5 to MD5

C.Change HMAC-MD5 to HMAC-SHA1-20

D.Configure the send and accept lifetime under key 1

Question 59

A network engineer for an ISP wants to reduce the number of iBGP adjacencies.
A merge is taking place with another ISP network, so the network engineer needs to make both ASNs look like a single network for the Internet.
Which BGP technology is most suitable?

A.route reflector

B.peer group

C.confederation

D.clustering

Question 60

Refer to me exhibit. A network engineer sets up a multihoming eBGP topology where multiple Autonomous Systems connect to ASN 64501.

The engineer wants to block all the routers coming from ASN 64502. but allow all the others. For that purpose, the following AS Pam prefix 1st s being used:
(config)#ip as-path access-list 10 deny _64502$
What must be fixed to achieve this result?

A.The AS-PATH filter must be defined inside the route-map mode

B.The statement must CM modified with ip as path access list 1 deny A64502$

C.The statement must be modified with ip as-path access-list 1 deny _64502_

D.At the end ip as-path access-list 10 permit .* must be included
