Question 86

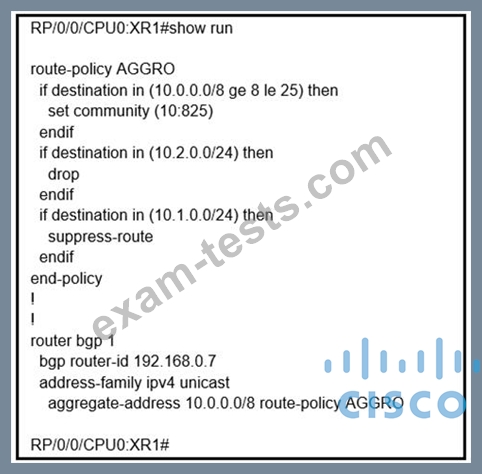

Refer to the exhibit.

A network operator is working to filter routes from being advertised that are covered under an aggregate announcement. The receiving router of the aggregate announcement block is still getting some of the more specific routes plus the aggregate. Which configuration change ensures that only the aggregate is announced now and in the future if other networks are to be added?

A.Configure the summary-only keyword on the aggregate command

B.Filter the routes on the receiving router

C.Set each specific route in the AGGRO policy to remove instead of suppress-route

D.Set each specific route in the AGGRO policy to drop instead of suppress-route

Question 87

An engineer is troubleshooting a connectivity issue across the MPLS network and is verifying the forwarding behavior of packets. Which table does the engineer look at to verify the forwarding behavior of an IP packet as it enters the MPLS network at the ingress LSR?

A.FIB

B.RIB

C.LFIB

D.LIB

Question 88

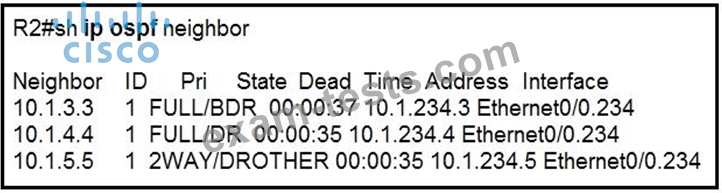

Refer to the exhibit.

Why is neighbor 10.1.5.5 stuck in "2WAY" state?

A.Router ID 10.1.5.5 is not reachable from R2

B.OSPF parameters (Area ID or hello interval) are mismatched between R2 and 10.1.5.5

C.It is an expected behavior when OSPF network type is broadcast

D.OSPF authentication has failed between R2 and 10.1.5.5

Question 89

What are two features of dual-stack? (Choose two.)

A.It is implemented without excessive processing power.

B.It allows an engineer to stack multiple Layer 2 switches to serve as a single switching unit.

C.It requires tunneling IPv6 traffic over an IPv4 infrastructure.

D.It securely routes and tunnels traffic between separate sites over the Internet.

E.It supports IPv4 and IPv6 traffic on the same infrastructure.

Question 90

Which statement about enabling segment routing for IGPs is true?

A.Segment routing must first be enabled under then routing process and then globally

B.Segment routing must first be enabled globally and then under the routing process

C.Segment routing can be enabled only under the routing process

D.Segment routing can be enabled only globally
