Free Access Cisco.300-510.v2022-08-02.q105 Practice Test (Page 13)

Question 56

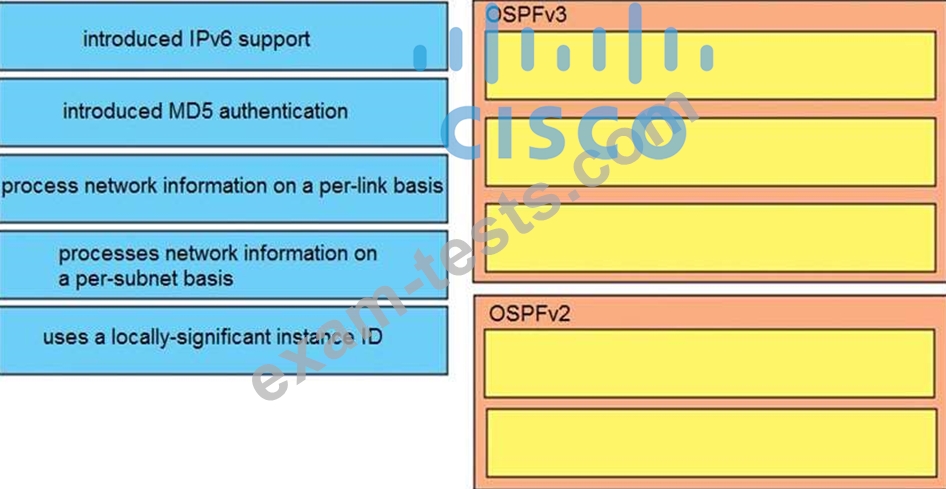

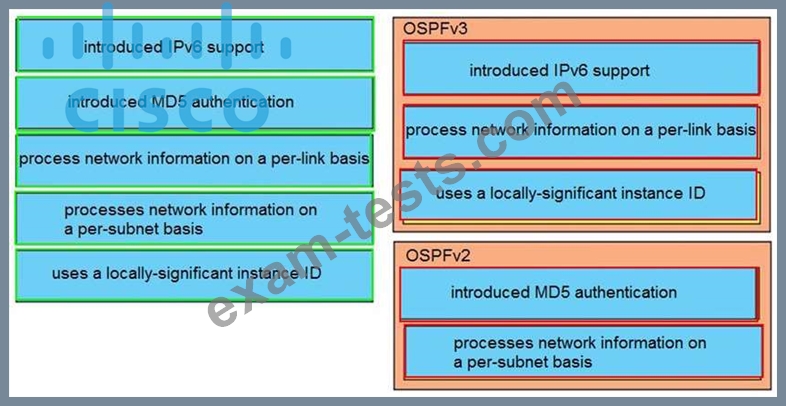

Compare different features between OSPFv2 and OSPFv3. Drag and drop the descriptions of OSPF from the left onto the correct OSPF versions on the right.

Question 57

Which statement about enabling segment routing for IGPs is true?

A.Segment routing must first be enabled under then routing process and then globally

B.Segment routing must first be enabled globally and then under the routing process

C.Segment routing can be enabled only under the routing process

D.Segment routing can be enabled only globally

Question 58

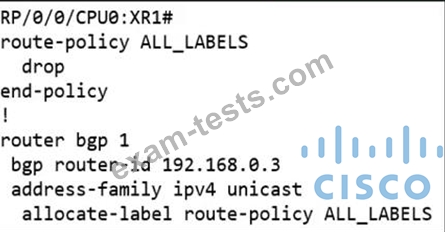

Refer to the exhibit.

A network operator is working to deploy a Unified BGP design and allow it to be available only in selected markets and services in the future. The label allocation is not functioning as desired. Which action will fix the issue?

A.Remove the allocate-labels command.

B.Reconfigure the route-policy ALL_LABELS to match all after the drop.

C.Reconfigure the route-policy ALL_LABELS to pass.

D.Remove the route policy and only configure "allocate-label".

Question 59

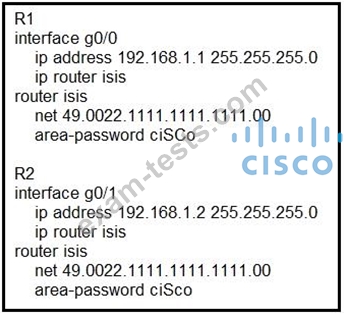

Refer to the exhibit.

After you applied these configurations to routers R1 and R2, the two devices could not form a neighbor relationship. Which reason for the problem is the most likely?

A.The two routers cannot authenticate with one another.

B.The two routers have the same area ID.

C.The two routers have the same network ID.

D.The two routers have different IS-types.

Question 60

For which reason do you deploy BGP confederations within a BGP transit backbone?

A.to support a larger number of eBGP peer sessions

B.to reduce the number of eBGP routes that must be shared between autonomous systems

C.to increase the number of routes that can be redistributed between the running IGP and BGP

D.to reduce the number of iBGP peering sessions
