Question 16

What is the role of segment routing mapping server?

A.It selects multiple mapping entries to create overlapping active mapping policies.

B.It works with IGP instances to calculate the prefix-SIDs in the absence of a mapping policy.

C.It reads and translates remotely received SIDs from other mapping servers to create SID mapping entries.

D.It advertises a local SID mapping policy to all the mapping clients.

Question 17

Refer to the exhibit.

A network engineer configured routers R1 and R5 to run in IS-IS Level 1 mode and router R6 to run in IS-IS Level 2 mode. All other routers are running as Level 1 / Level 2 routers. An engineer expects traffic from R1 to R6 to pass via R2, but IS-IS routing has calculated the best path via R4. Which action corrects the problem?

A.Configure all routers as Level 1 routers.

B.Remove the link metric for the link from router R1 to router R2.

C.Change the link metric for the link from router R1 to router R2 to 1.

D.Configure all routers as Level 1 / Level 2 routers.

Question 18

Refer to the exhibit.

A network engineer implemented this segment routing configuration. Which statement about the output is true?

A.This range conflicts with the segment routing local block range.

B.The device must be reloaded for these ranges to be allocated and used.

C.The default segment routing global block range is being used on this device.

D.A nondefault segment routing global block range is being used on this device.

Question 19

Refer to the exhibit.

After troubleshooting BGP traffic steering issue, which action did the network operator take to achieve the correct effect of this configuration?

A.Routes that have passed through AS 65517 have the local preference set to 150.

B.Routes that have passed through AS 65517 have the local preference set to 150 and the traffic is denied.

C.Routes directly attached to AS 65517 have the local preference set to 150.

D.Routes that have originated through AS 65517 have the local preference set to 150.

Question 20

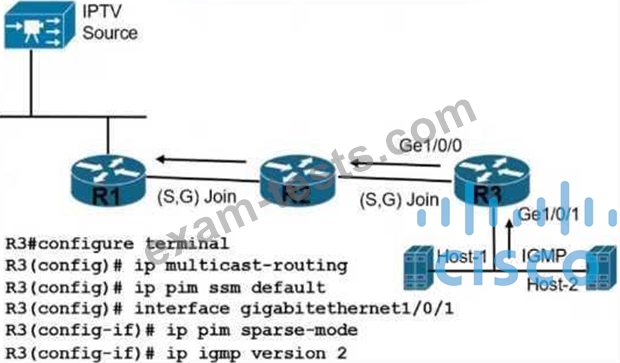

Refer to the exhibit. A customer reports that Host-1 is failing to receive streaming traffic from the IPTV source. The engineer has confirmed that hosts on router R2 are receiving traffic normally and that Host-1 is correctly sending subscription messages to join the IPTV stream.
Which action must the engineer take to correct the problem?

A.Remove IP PIM SSM and IGMP from interface GigaEthernet 1/0/1 on R3 and configure under global configuration

B.Configure IP PIM SSM and IGMP version 2 under interface GigatxtEthernet 1/0/1 on R3

C.Configure IGMP version 3 under interface GigabitEthernet 1/(V1 on R3

D.Remove IP PIM SSM from the global configuration on R3 and configure it under the GigabitEthernet
1/0/1 interface
